Club 3D HDMI to DisplayPort Adapter
- Compliant to Displayport 1.1 Dual Mode and lower versions
- HDMI compliant receiver
- Link rate up to 2.97 Gbps per channel
- Color depth up to 48 bits
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

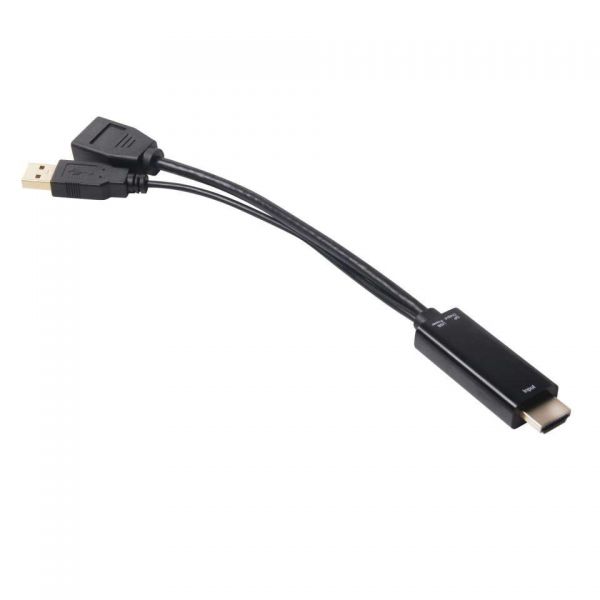

Club 3D HDMI to DisplayPort Adapter - HDMI to DisplayPort Adapter
CAC-2330 - The Club 3D HDMI to DisplayPort Adapter is the perfect solution for connecting devices with an HDMI output, such as Game-Console or Notebook, to a display with a DisplayPort input.
It is equipped with USB-A port to supply power in case there isn't enough power from HDMI source. The HDMI to DisplayPort Adapter supports resolutions up to UHD 4096x2160 at 30 Hz and Full HD 1920 x 1080p at 120Hz.
The CAC-2330 Active Adapter offers plug-and-play installation, providing a hassle-free setup with no software or drivers to install.
The DisplayPort output is compliant to DisplayPort ++ or Dual Mode.
- Compliant to Displayport 1.1 Dual Mode and lower versions
- HDMI compliant receiver
- Link rate up to 2.97 Gbps per channel
- Color depth up to 48 bits
- 3D video timings
- HDCP 1.4 repeater with embedded keys
- Video resolution up to 4096x2160 @ 30 Hz; 1920 x 1080 @ 120 Hz
- Audio 7.1 Ch up to 192 kHz sample rate
- HDMI source can supply enough power in most cases, the USB-A port only needs to be connectedwhen there isn't enough power.
- USB cable is for optional extra power.
- Offers exceptional quality as well as upright compatibility with audio and video equipment
- Offers multiple ports; DisplayPort, HDMI and USB, to transfer high-quality pictures and 3D sound effects simultaneously at a high-speed
- HDCP 1.4 feature for better usability and increased efficiency
- Audio/Video Device device supported according to your requirements with maximum productivity
Product Specifications
-
Brand NameClub 3D
-
Cable TypeDisplayPort/HDMI/USB
-
Connector Type on First EndHDMI 1.4 Digital Audio/Video - Male
-
Connector Type on Second EndDisplayPort 1.1 Digital Audio/Video - Female USB Type A - Male
-
Connector on First End Details1 x HDMI 1.4 Digital Audio/Video - Male
-
Connector on Second End Details1 x DisplayPort 1.1 Digital Audio/Video - Female 1 x USB Type A - Male
-
Country of OriginChina
-
Data Transfer Rate3 Gbit/s
-
Device SupportedAudio/Video Device Gaming Console Notebook
-
Environmentally FriendlyYes
-
FeaturesHDCP 1.4
-
Manufacturer Part NumberCAC-2330
-
Product NameHDMI to DisplayPort Adapter
-
Product TypeA/V Cable
