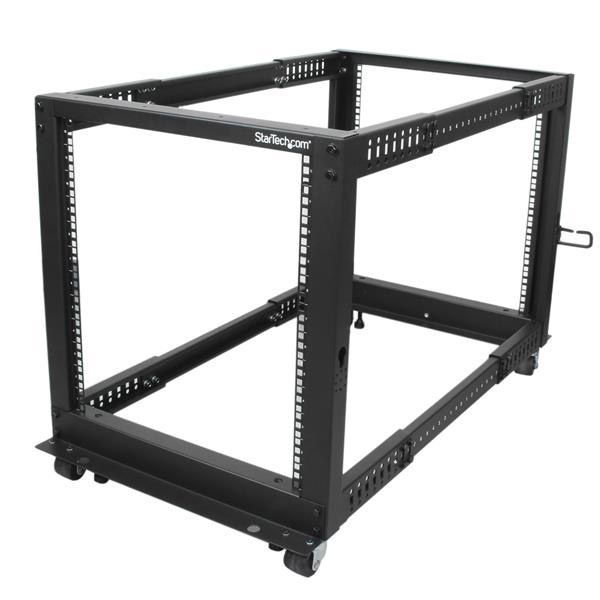

12U Adjustable Depth Open Frame 4 Post Server Rack w/ Casters / Levelers and Cable Management Hooks

12U Open Frame Server Rack w/adjustable mounting depth of 23in-41in & 25in tall design - Mobile Data IT rack w/casters/levelling feet cage nuts/screws cable mgmt hooks & assembly tools - Steel 19in EIA/ECA-310 frame for max ventilation w/1200 lb cap
Product Number: SYNX4066271
Free Shipping Estimated Delivery  Wed 8/11  Thu 8/12   (7 business days)
Non Returnable See our return policy for more information
Request Quote

Product Description 12U Adjustable Depth Open Frame 4 Post Server Rack w/ Casters / Levelers and Cable Management Hooks - The 4POSTRACK12U 12U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.
Designed with ease of use in mind, this 12U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment.
This durable 4-post rack supports a static loading capacity of up to 1200lbs (544kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494) for a universal design that's compatible with most rack equipment.
For a complete server storage solution that saves you time and hassle, the rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability to better suit your server environment.
Backed by a 2-year warranty and free lifetime technical support.

Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Application/Usage
    A/V Equipment LAN Switch Server KVM Switch Patch Panel
  • Assembly Required
  • Brand Name
  • Certifications & Standards
    DIN 41494 EIA/ECA-310-E IEC 60297-3-100
  • Color
  • Environmental Certification
  • Environmentally Friendly
  • Features
    Cable Management Casters Leveling Feet
  • Form Factor
    Floor Standing
  • Height
  • Length
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
  • Material
    Steel Cold Rolled Steel
  • Number of Fans Installed
  • Package Contents
    Rack Cabinet 2 x Left Vertical Rail 2 x Right Vertical Rail 2 x Base Bracket 8 x Corner Section 4 x Center Section 2 x Top Bracket 48 x M8 Bolt 48 x M8 Washer 1 x M8 (13mm) Wrench 1 x M6 (10mm) Wrench 1 x Phillips Screwdriver 24 x M6 Cage Nut 24 x PVC Cup Washer 24 x M6 Phillips Head Screw 4 x Cable Management Hook 4 x Hook Mounting Screw 4 x Casters 4 x Leveling Feet 16 x M6 Screw 16 x M6 Flat Washer 16 x M6 Flange Nut 4 x Grounding Wires
  • Product Name
    Rack Cabinet
  • Product Type
    Rack Cabinet
  • Rack Height
  • Rack Type
    Open Frame
  • Rack Width
  • Width
