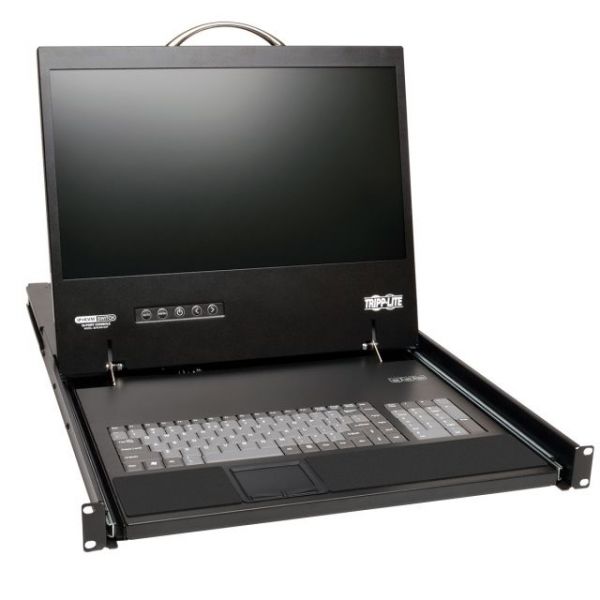

Tripp Lite by Eaton NetCommander 16-Port Cat5 KVM over IP Switch - 19 in. LCD 1 Remote + 1 Local User 1U Rack-Mount

16 Computer(s) - 19" - 16 x RJ-45 Keyboard/Mouse/Video - 1U Height
Product Number: SYNX2517300
  • Control computers/servers locally or via LAN, WAN or Internet
  • Occupies just 1U of space in a rack-mountable drawer
  • Low-cost Cat5 cabling allows longer distances, reduces cable clutter
  • 19" LCD screen supports video resolutions up to 1366 x 768
More details
$1,594.67
Loading...
Ships Free - This items ships free with your order
Delivered by Thu 5/2 Fri 5/3 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item
Loading...

Product Description

Tripp Lite by Eaton NetCommander 16-Port Cat5 KVM over IP Switch - 19 in. LCD 1 Remote + 1 Local User 1U Rack-Mount - Tripp Lite's B070-016-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 16 computers/servers locally, from across the room, down the street or halfway around the globe on a LAN, WAN or Internet.The B070-016-19-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units so you can control computers/servers located up to 100 ft. away from the switch. This switch features two 10/100 Mbps LAN ports, so if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 16 ports using an on-screen display (OSD). Multi-level password protection prohibits unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19" LCD screen supports video resolutions up to 1366 x 768.Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; you can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-016-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Free NetCommander-AXS Management Software is available for access and control of all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU's, and manage KVM settings. This software can be found on the model support page of the B070-016-19-IP, or via searching NetCommander-AXS on www.tripplite.com

  • Control computers/servers locally or via LAN, WAN or Internet
  • Occupies just 1U of space in a rack-mountable drawer
  • Low-cost Cat5 cabling allows longer distances, reduces cable clutter
  • 19" LCD screen supports video resolutions up to 1366 x 768
  • Simultaneous support for 2 users - 1 local, 1 remote
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface
  • Fast Virtual Media KVM System patented under Pat. No. US 9,417,720

Product Specifications

  • Brand Name
    Tripp Lite by Eaton
  • Certifications & Standards
    UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
  • Country of Origin
    Taiwan
  • Daisy Chain
    Yes
  • Depth
    26.8"
  • Device Type
    LCD Rack Console
  • Environmentally Friendly
    Yes
  • Height
    1.7"
  • Input Voltage
    240 V AC
  • KVM Technology
    Digital
  • Keyboard
    Yes
  • Limited Warranty
    1 Year
  • Manufacturer Part Number
    B070-016-19-IP
  • Network (RJ-45)
    Yes
  • Number of Computers Supported
    16
  • Number of Network (RJ-45) Ports
    1
  • Number of PS/2 Ports
    2
  • PS/2 Port
    Yes
  • Package Contents
    NetCommander B070-016-19-IP 19" Rackmount LCD with KVM Switch Power Cord Serial Firmware Upgrade Cable KVM/Console Jumper Cable CD (Includes: Owner's Manual)
  • Pointing Device Type
    TouchPad
  • Product Color
    Black
  • Product Line
    NetCommander
  • Product Material
    Steel
  • Product Model
    B070-016-19-IP
  • Product Name
    16-Port, 1+1 User NetCommander Cat5 IP Console KVM Switch
  • Product Type
    LCD Rack Console
  • Rack Height
    1U
  • Screen Mode
    WXGA
  • Screen Resolution
    1366 x 768
  • Screen Size
    19"
  • Width
    19"
