Tripp Lite HDMI Over Cat5/Cat6 Passive Video Extender Remote Unit TAA / GSA

1 Input Device - 1 Output Device - 100 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Twisted Pair - Category 6
Product Number: SYNX2813590
$35.99
Free Shipping Orders Over $45+ Estimated Delivery  Wed 8/11  Thu 8/12   (5 business days)
Non Returnable See our return policy for more information
Favorite
Compare
Request Quote

Product Description

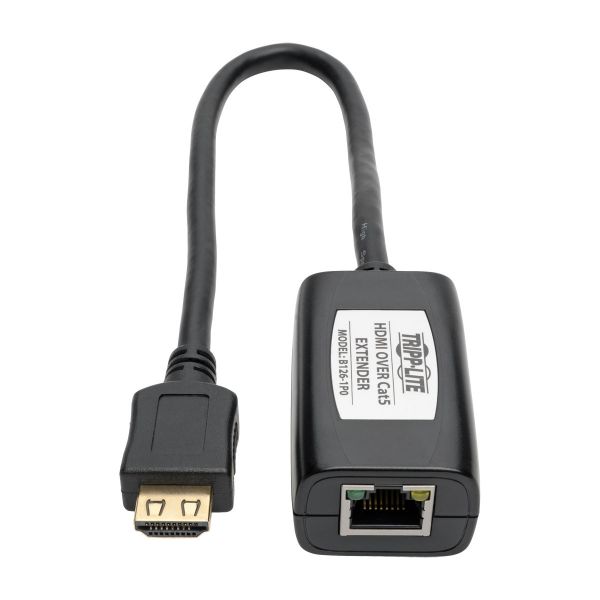

Tripp Lite HDMI Over Cat5/Cat6 Passive Video Extender Remote Unit TAA / GSA - The B126-1P0 HDMI over Cat5/Cat6 Passive Remote Receiver works with Tripp Lite's B126-002 and B126-004 transmitters to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.

The B126-1P0 can extend a 1080i (60 Hz) signal up to 100 feet (30.5 m) or a 1080p (60 Hz) signal up to 50 feet (15.2 m) with a single Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series) between it and the transmitter. The built-in HDMI cable features a latching connector that helps prevent accidental disconnection. No external power is required.

In addition to crystal-clear video, the B126-1P0 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install.

Tripp Lite logo
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Brand Name
    Tripp Lite
  • Certifications & Standards
    TAA HDCP
  • Color
    Black
  • Connectivity Technology
    Wired
  • Country of Origin
    Taiwan
  • Environmental Certification
    RoHS
  • Environmentally Friendly
    Yes
  • Form Factor
    Desktop
  • HDMI Out
    Yes
  • Limited Warranty
    1 Year
  • Manufacturer Part Number
    B126-1P0
  • Maximum Operating Distance
    100 ft
  • Media Type Supported
    Twisted Pair
  • Network (RJ-45)
    Yes
  • Number of HDMI Outputs
    1
  • Number of Input Devices Supported
    1
  • Number of Network (RJ-45) Ports
    1
  • Number of Output Devices Supported
    1
  • Package Contents
    B126-1P0 Video Console Owner's Manual
  • Product Model
    B126-1P0
  • Product Name
    B126-1P0 Video Console
  • Product Type
    Video Console
  • Twisted Pair Cable Standard
    Category 6
