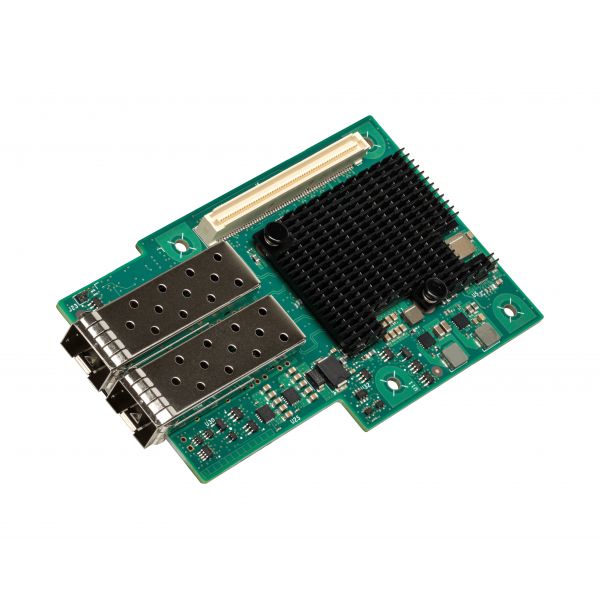

Intel Ethernet Network Adapter XXV710-DA2 for OCP

Product Description

Intel Ethernet Network Adapter XXV710-DA2 for OCP - As a founding member of Open Compute Project (OCP), Intel strives to increase the number of open solutions based on OCP specifications. The Intel Ethernet Network Adapter XXV710 for OCP is part of the Intel Ethernet 700 Series, and offers 1/10/25GbE port speeds.
700 Series Network Adapters are the foundation for server connectivity, providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.
Interoperability - Multiple speeds and media types for broad compatibility backed by extensive testing and validation.
Optimization - Intelligent offloads and accelerators to unlock network performance in servers with Intel Xeon processors.
Agility - Both Kernel and Data Plane Development Kit (DPDK) drivers for scalable packet processing.


Intel Ethernet 700 Series delivers networking performance across a wide range of network port speeds through intelligent offloads, sophisticated packet processing, and quality open source drivers.
All Intel Ethernet 700 Series Network Adapters include these feature-rich technologies:
Flexible and Scalable I/O for Virtualized Infrastructures Intel Virtualization Technology (Intel VT), delivers outstanding I/O performance in virtualized server environments.
I/O bottlenecks are reduced through intelligent offloads, enabling near-native performance and VM scalability. These offloads include Virtual Machine Device Queues (VMDq) and Flexible Port Partitioning using SR-IOV with a common Virtual Function driver for networking traffic per Virtual Machine (VM). Host-based features supported include:
VMDQ for Emulated Path: VMDQ, enables a hypervisor to represent a single network port as multiple network ports that can be assigned to the individual VMs. Traffic handling is offloaded to the network controller, delivering the benefits of port partitioning with little to no administrative overhead by the IT staff.
SR-IOV for Direct Assignment: Adapter-based isolation and switching for various virtual station instances enables optimal CPU usage in virtualized environments.
Up to 128 virtual functions (VFs), each VF can support a unique and separate data path for I/O related functions within the PCI Express hierarchy.
Use of SR-IOV with a networking device, for example, allows the bandwidth of a single port (function) to be partitioned into smaller slices that can be allocated to specific VMs or guests, via a standard interface.


Intel Ethernet Adaptive Virtual Function (Intel Ethernet AVF): Customers deploying mass-scale VMs or containers for their network infrastructure now have a common VF driver. This driver eases SR-IOV hardware upgrades or changes, preserves base-mode functionality in hardware and software, and supports an advanced set of features in the Intel Ethernet 700 Series.

• OCP Spec. v2.0, Type 1 and Type 2
• PCI Express (PCIe) 3.0, x8
• Supports dual port 1/10/25GbE configurations
• IEEE 802.3by and Ethernet Technology Consortium specification compliance
• Network Virtualization offloads including VXLAN, GENEVE, NVGRE, MPLS, and VXLAN-GPE with Network Service Headers (NSH)
• Intel Ethernet Flow Director for hardware-based application traffic steering
• Dynamic Device Personalization (DDP) enables increased packet processing efficiency for NFV and Cloud deployments
• Data Plane Development Kit (DPDK) optimized for efficient packet processing
• Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
• Intelligent offloads to enable high performance on servers with Intel Xeon processors
• I/O virtualization innovations for maximum performance in a virtualized server
• Adaptive link establishment enables increased interoperability with other 25GbE capable switches and host controllers
• 25Gigabit Ethernet Card guarantees a faster and efficient networking interface to client, server or workstation with maximum connectivity reliability
• This 8000 MB/s bandwidth PCI Express 3.0 x8 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
• For high bandwidth connectivity, add this efficient dual port 25gigabit ethernet card to your server or workstation
• Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
• 25GBase-SR network technology for reliable connectivity with maximum productivity
