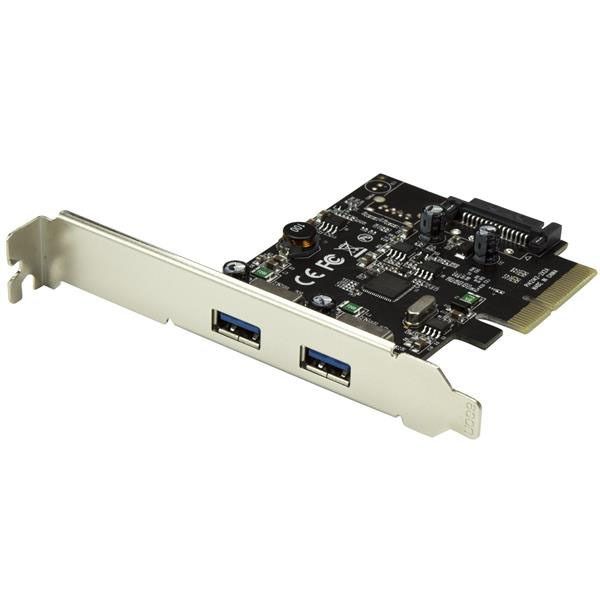

StarTech.com 2-Port USB PCIe Card - 10Gbps USB 3.1 Gen 2 Type-A PCI Express Host Controller Expansion Card

2-port PCI Express host controller card has 2 USB-A w/up to 10Gbps per port - USB 3.1 Gen 2 or USB 3.2 Gen 2x1 expansion card - Add-on USB PCIe card adapter w/UASP - Opt. SATA power - Install in full or low-profile PCI-e 3.0 x4 slot - Win/Linux/macOS
Product Number: SYNX4927190
  • HIGH PERFORMANCE: PCI Express host controller card has two USB-A ports with speeds up to 10Gbps per port; USB PCIe adapter card supports USB 3.1 Gen 2 or USB 3.2 Gen 2x1 standards
  • POWER: Expansion card w/ SATA power header supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 0.9A (4.5W) per USB-A port
  • MAX PERFORMANCE WITH USB STORAGE DEVICES: USB add-on card supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives & thumb drives
  • COMPATIBILITY: Installs in full or low-profile PCI-e 3.0 x4 slot (works w/2.0 at lower performance); Windows/Linux/macOS w/auto driver install on Windows 8 & above; Works w/USB 3.2/3.1/3.0/2.0 devices
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

StarTech.com 2-Port USB PCIe Card - 10Gbps USB 3.1 Gen 2 Type-A PCI Express Host Controller Expansion Card - This USB 3.1 card lets you add two USB Type-A ports to your computer, through a PCI Express slot. It enables you to upgrade your current system by adding two USB 3.1 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps.
Faster USB performance
By adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.1 Gen 2 and rest assured you're ready for both current and future high-bandwidth USB-A devices.
With higher data throughput support, this PCI Express USB 3.1 card is a necessity for external drives, drive enclosures" append_qs="filter_IOINTERFACE=USB+3.1+Gen+2, and many other USB 3.1 peripherals. Plus, the USB card includes an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.1 bus-powered devices (500mA for USB 2.0). The card is ideal for use with large external storage solutions.
Compatible with older USB devices
Connecting older peripherals isn't a problem. This versatile dual-port USB 3.1 card is backward compatible with legacy USB 3.0/2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices.
Easy installation
The USB 3.1 PCIe card is compatible with a broad range of Windows and Linux operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers.
The PEXUSB312A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

  • HIGH PERFORMANCE: PCI Express host controller card has two USB-A ports with speeds up to 10Gbps per port; USB PCIe adapter card supports USB 3.1 Gen 2 or USB 3.2 Gen 2x1 standards
  • POWER: Expansion card w/ SATA power header supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 0.9A (4.5W) per USB-A port
  • MAX PERFORMANCE WITH USB STORAGE DEVICES: USB add-on card supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives & thumb drives
  • COMPATIBILITY: Installs in full or low-profile PCI-e 3.0 x4 slot (works w/2.0 at lower performance); Windows/Linux/macOS w/auto driver install on Windows 8 & above; Works w/USB 3.2/3.1/3.0/2.0 devices
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 2-Port USB PCIe card is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Brand Name
    StarTech.com
  • Environmental Certification
    REACH RoHS WEEE
  • Environmentally Friendly
    Yes
  • Form Factor
    Plug-in Card
  • Height
    2.8"
  • Host Interface
    PCI Express 3.0 x4
  • Length
    3.7"
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    PEXUSB312A2
  • Package Contents
    Dual-Port USB 3.1 Card - 10Gbps Per Port - 2x USB-A - PCIe 1 X Low-Profile Bracket 1 X Quick-Start Guide
  • Platform Supported
    Linux PC
  • Product Name
    Dual-Port USB 3.1 Card - 10Gbps per port - 2x USB-A - PCIe
  • Product Type
    USB Adapter
  • Total Number of USB Ports
    2
  • Width
    0.5"
