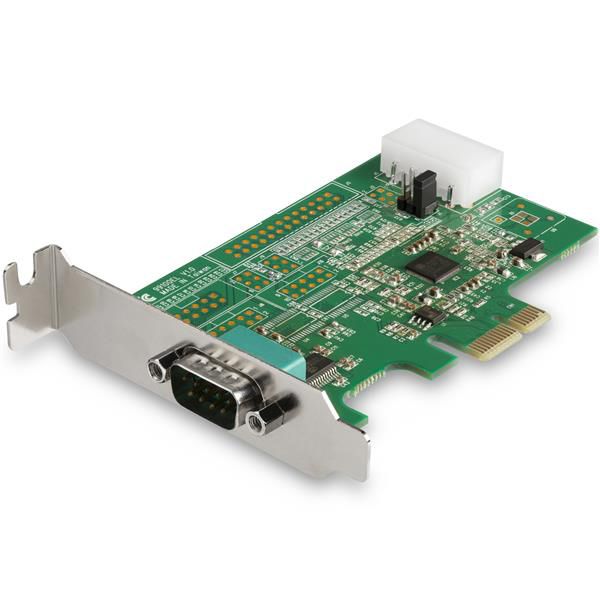

StarTech.com 1 Port RS232 Serial Adapter Card with 16950 UART - PCIe to Serial Adapter - Supports transfer rates up to 921.4Kbps - Windows and Linux Compatible - RS232 Serial Port PCI Express Card with a features a low-profile or full-profile bracket - Su

1 port PCI Express RS232 serial controller card w/16950 UART/ASIX AX99100 - Bi-directional speeds 921.6Kbps/port | 256 byte FIFO | 9th data bit - Pin 9 pwr out 5v/12v/none w/up to 2A total - Expansion card w/low profile (Std bracket incl) - Win/Linux
Product Number: SYNX5536584
  • 1 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100, allows 1x DB9 port w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit
  • OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total
  • STANDARD PROFILE & LOW PROFILE BRACKET: PCIe serial card comes w/ a low profile bracket pre-installed & 1x full profile bracket is incl for versatile install; Supports Windows XP and up & Linux
  • VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items below to see if a replacement product is available.

Product Description

StarTech.com 1 Port RS232 Serial Adapter Card with 16950 UART - PCIe to Serial Adapter - Supports transfer rates up to 921.4Kbps - Windows and Linux Compatible - RS232 Serial Port PCI Express Card with a features a low-profile or full-profile bracket - Su - This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor. Experience Optimal Technology This PCIe to serial adapter supports the following features:
Compatible with industry standard 16950 UART
Supports max baud rate of up-to 921.4Kbps
Provides 5/12V power output on Pin 9 when external power is connected
128-byte depth FIFO per transmitter and receiver
Supports 9, 8, 7, 6, 5 data bits
Asix AX99100 chipset
PCI Express 1.1 compliant PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

  • 1 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100, allows 1x DB9 port w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit
  • OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total
  • STANDARD PROFILE & LOW PROFILE BRACKET: PCIe serial card comes w/ a low profile bracket pre-installed & 1x full profile bracket is incl for versatile install; Supports Windows XP and up & Linux
  • VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCI-e RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support
Guides & Information
 Need more information? Ask a Question

Product Specifications

  • Brand Name
    StarTech.com
  • Card Height
    Low-profile
  • Country of Origin
    Taiwan
  • Environmental Certification
    REACH RoHS WEEE
  • Environmentally Friendly
    Yes
  • Form Factor
    Plug-in Card
  • Host Interface
    PCI Express x1
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    PEX1S953LP
  • Package Contents
    1-Port RS232 Serial Adapter Card with 16950 UART 1 x Full-Profile Bracket 1 x User Manual
  • Platform Supported
    Linux PC
  • Product Name
    1-Port RS232 Serial Adapter Card with 16950 UART
  • Product Type
    Serial Adapter
