StarTech.com 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA/SP4 Power - 5Gbps
- ADD 4x SUPERSPEED USB 3.0 PORTS: This PCI/PCI-X Universal (3.3V & 5V, 32-bit) card adds four USB-A 3.2 Gen 1 ports to your computer or server through a PCI slot; Supports USB 3.0/3.1 Gen 1/USB 3.2 Gen 1x1
- TRANSFER SPEEDS: USB PCI card with UASP achieves speeds up to the maximum of your PCI bus (1.3Gbps); Ideal for older computers with only PCI slots available like Dell OptiPlex 7010/HP Compaq dc7800; Backward compatible with USB 2.0/1.1/1.0
- OPTIONAL POWER: USB PCI expansion card features SATA & SP4 power ports to supply additional power to the USB ports (when motherboard power is insufficient); Power can be connected to SATA or SP4 port to provide up to 5V 0.9A/4.5W per USB Type-A port
- STANDARD & LOW PROFILE BRACKET: PCI USB card comes with a full-profile (standard) bracket pre-installed and a low-profile (half height) bracket included for versatile installation in both low-profile and full-profile computer systems
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

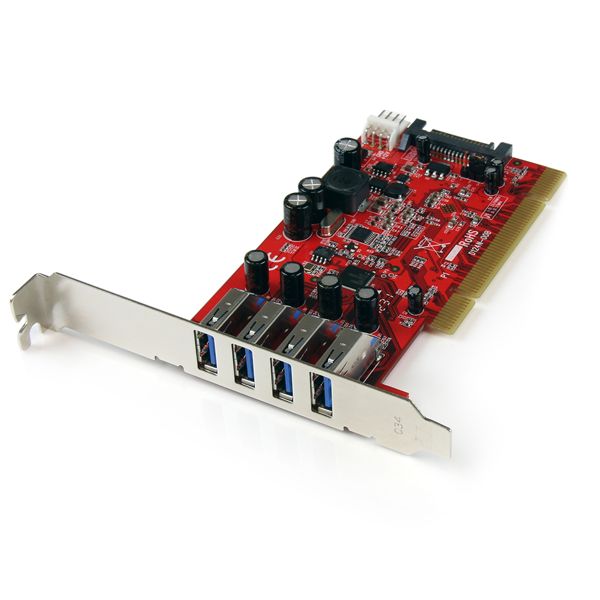

StarTech.com 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA/SP4 Power - 5Gbps - The PCIUSB3S4 4-Port PCI to USB 3.2 Gen 1 Card enables legacy PCI slots to support the SuperSpeed USB 3.2 Gen 1 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.2 Gen 1 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection. Note: Some newer PCs may use a PCIe to PCI bridge which can cause unexpected compatibility issues with this product.
This versatile USB 3.2 Gen 1 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.2 Gen 1 devices - suitable for even the most power hungry devices.
A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology. The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.2 Gen 1 devices, but will also support older devices.
The PCIUSB3S4 4-Port PCI USB 3.2 Gen 1 Card is backed by StarTech.com lifetime warranty and free lifetime technical support.
More from the Manufacturer
- ADD 4x SUPERSPEED USB 3.0 PORTS: This PCI/PCI-X Universal (3.3V & 5V, 32-bit) card adds four USB-A 3.2 Gen 1 ports to your computer or server through a PCI slot; Supports USB 3.0/3.1 Gen 1/USB 3.2 Gen 1x1
- TRANSFER SPEEDS: USB PCI card with UASP achieves speeds up to the maximum of your PCI bus (1.3Gbps); Ideal for older computers with only PCI slots available like Dell OptiPlex 7010/HP Compaq dc7800; Backward compatible with USB 2.0/1.1/1.0
- OPTIONAL POWER: USB PCI expansion card features SATA & SP4 power ports to supply additional power to the USB ports (when motherboard power is insufficient); Power can be connected to SATA or SP4 port to provide up to 5V 0.9A/4.5W per USB Type-A port
- STANDARD & LOW PROFILE BRACKET: PCI USB card comes with a full-profile (standard) bracket pre-installed and a low-profile (half height) bracket included for versatile installation in both low-profile and full-profile computer systems
- COMPATIBILITY: This card is Windows only; Supported versions: Windows XP and up, Windows Server 2003 and up; USB card is only compatible with PCI/PCI-X slots and is NOT COMPATIBLE with PCI-Express (PCIe); See PEXUSB3S4V for a PCIe solution
- 4 external SuperSpeed USB 3.0 ports
- Provides up to 900mA of power over USB 3.0
- Built-in optional SATA power connector for bus-powered USB devices
- Backward compatible with USB 2.0/1.x devices
- Compliant with USB 3.0 base specification 1.0 and xHCI specification 0.95
- Compliant with PCI Specification 3.0
- Includes a low profile/half-height installation bracket
Product Specifications
-
Additional InformationWindows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server 2012, 2008 R2, 2003
-
Brand NameStarTech.com
-
Country of OriginTaiwan
-
Data Transfer Rate5 GB/s
-
Environmental CertificationRoHS REACH WEEE
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Height2.6"
-
Host InterfacePCI-X
-
Length5.2"
-
Limited WarrantyLifetime
-
Manufacturer Part NumberPCIUSB3S4
-
Number of USB 3.2 Ports4
-
Operating System SupportedWindows 10 Windows 11 Windows 7 Windows 8 Windows 8.1 Windows Server 2003 Windows Server 2008 R2 Windows Server 2012 Windows Server 2016 Windows Server 2019 Windows Vista Windows XP
-
Package Contents1 x Low Profile Bracket 1 x Driver CD 4 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA / SP4 Power 1 x Instruction Manual
-
Platform SupportedPC
-
Product ColorRed
-
Product Name4 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA / SP4 Power
-
Product TypeUSB Adapter
-
Thickness800 mil
-
Total Number of USB Ports4
-
Width0.8"
