Brainboxes Industrial Embeddable 8 Port Ethernet Switch

8 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - Lifetime Limited Warranty
Product Number: SYNX5307479
  • 8 Port Ethernet Switch
  • Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
  • Ready for embedded applications
  • Redundant dual power inputs: +5V to +30V DC
More details
$106.20
Free Shipping Estimated Delivery
Favorite
Compare
Request Quote

Product Description

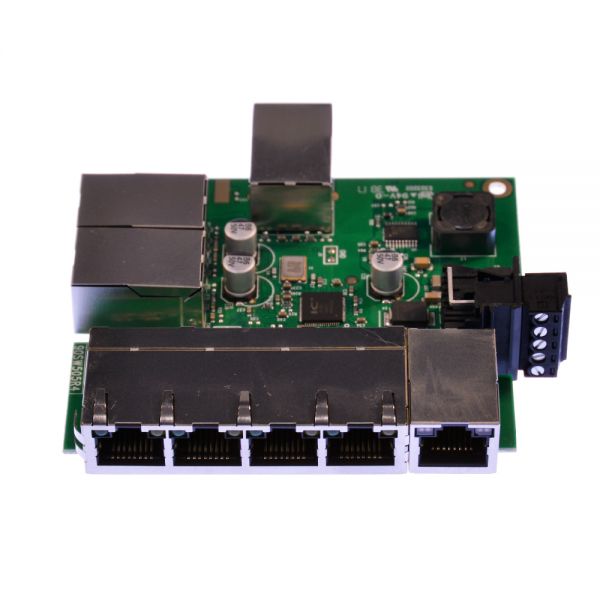

Brainboxes Industrial Embeddable 8 Port Ethernet Switch - Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.

  • 8 Port Ethernet Switch
  • Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
  • Ready for embedded applications
  • Redundant dual power inputs: +5V to +30V DC
  • Industrial operating temp range -40°C to +80°C / -40°F to +176°F
  • Lifetime Warranty and Support
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • Just plug-in the switch with USB port to make it run
Guides & Information

Product Specifications

  • Brand Name
    Brainboxes
  • Country of Origin
    United Kingdom
  • Depth
    3.5"
  • Environmental Certification
    RoHS WEEE
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    Fast Ethernet
  • Height
    0.8"
  • Layer Supported
    2
  • Limited Warranty
    Lifetime
  • Manageable
    No
  • Manufacturer Part Number
    SW-108
  • Media Type Supported
    Twisted Pair
  • Modular
    No
  • Network Technology
    10/100Base-T
  • Package Contents
    Industrial Embeddable 8 Port Ethernet Switch Quick Start Guide
  • Power Source
    Power Supply USB
  • Product Model
    SW-108
  • Product Name
    Industrial Embeddable 8 Port Ethernet Switch
  • Product Type
    Ethernet Switch
  • Stack Port
    No
  • Total Number of Network Ports
    8
  • Uplink Port
    No
  • Width
    3.7"
