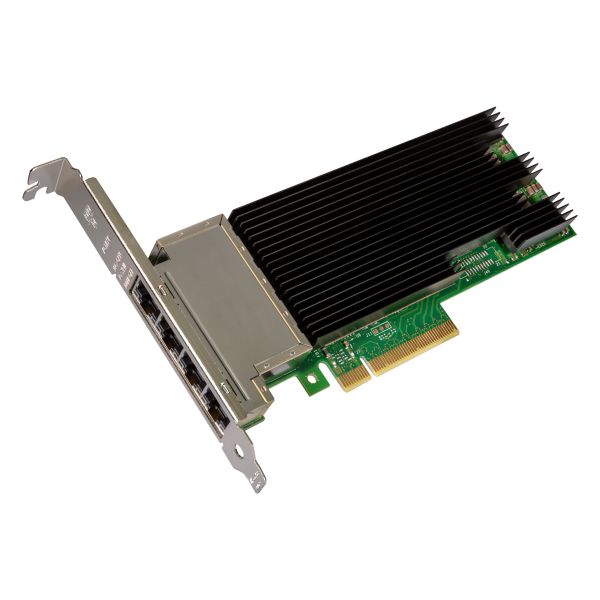

Intel Ethernet Converged Network Adapter X710-T4
- Standard CAT6A cabling with four RJ45 connectors for maximum system density
- Backwards compatible with existing 100BASE-T and 1000BASE-T networks
- PCI Express (PCIe) 3.0, x8
- Network Virtualization offloads including VxLAN, GENEVE, NVGRE, MPLS, and VxLAN- GPE with Network Service Headers (NSH)
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Intel Ethernet Converged Network Adapter X710-T4 - Migration to 10GbE is dramatically simplified with backward compatibility for existing network infrastructure. Autonegotiation between 100 Mb/s, 1GbE, and 10GbE provides the necessary backwards compatibility that most customers require for a smooth transition and easy migration to 10GbE. 10GBASE-T switches can now be affordably added at any time to experience the full benefits of 10GbE.
10GBASE-T is the easiest and most versatile 10GbE interface that can be deployed anywhere in the data center. Its flexible reach from 1 meter to 100 meters supports the latest network architectures including Top of Rack (Tom), middle of Row (MoR), and End of Row (EoR).
Intel Ethernet 700 Series Network Adapters are the foundation for server connectivity, providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.
Interoperability - Multiple speeds and media types for broad compatibility backed by extensive testing and validation.
Optimization - Intelligent offloads and accelerators to unlock network performance in servers with Intel Xeon processors.
Agility - Both Kernel and Data Plane Development Kit (DPDK) drivers for scalable packet processing.
Intel Ethernet 700 Series delivers networking performance across a wide range of network port speeds through intelligent offloads, sophisticated packet processing, and quality open source drivers.
All Intel Ethernet 700 Series Network Adapters include these feature-rich technologies:
Flexible and Scalable I/O for Virtualized Infrastructures
Intel Virtualization Technology (Intel VT), delivers outstanding I/O performance in virtualized server environments.
I/O bottlenecks are reduced through intelligent offloads, enabling near-native performance and VM scalability. These offloads include Virtual Machine Device Queues (VMDq) and Flexible Port Partitioning using SR-IOV with a common Virtual Function driver for networking traffic per Virtual Machine (VM). Host-based features supported include:
VMDQ for Emulated Path: VMDQ, enables a hypervisor to represent a single network port as multiple network ports that can be assigned to the individual VMs. Traffic handling is offloaded to the network controller, delivering the benefits of port partitioning with little to no administrative overhead by the IT staff.
SR-IOV for Direct Assignment: Adapter-based isolation and switching for various virtual station instances enables optimal CPU usage in virtualized environments.
Up to 128 virtual functions (VFs), each VF can support a unique and separate data path for I/O related functions within the PCI Express hierarchy.
Use of SR-IOV with a networking device, for example, allows the bandwidth of a single port (function) to be partitioned into smaller slices that can be allocated to specific VMs or guests, via a standard interface.
- Standard CAT6A cabling with four RJ45 connectors for maximum system density
- Backwards compatible with existing 100BASE-T and 1000BASE-T networks
- PCI Express (PCIe) 3.0, x8
- Network Virtualization offloads including VxLAN, GENEVE, NVGRE, MPLS, and VxLAN- GPE with Network Service Headers (NSH)
- Intel Ethernet Flow Director for hardware-based application traffic steering
- Dynamic Device Personalization (DDP) enables increased packet processing efficiency for NFV and Cloud deployments
- Data Plane Development Kit (DPDK) optimized for efficient packet processing
- Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
- Intelligent offloads to enable high performance on servers with Intel Xeon processors
- I/O virtualization innovations for maximum performance in a virtualized server
- 10Gigabit Ethernet Card is reliable and offers a convenient networking solution
- This 8000MB/s bandwidth adapter is ideal for PCs with PCI Express 3.0 x8 slots, ensuring top level network connectivity for your desktops
- This quad ports network adapter is designed to meet the multi-port network connectivity needs of today's data centered environments demanding virtualization, converged infrastructure, and power reduction
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
Product Specifications
-
Application/UsageNetwork
-
Bracket HeightFull-height/Low-profile
-
Brand NameIntel
-
Chipset ManufacturerIntel
-
Chipset ModelXL710
-
Data Transfer Rate1.25 GB/s
-
Device SupportedServer
-
Environmental CertificationEU RoHS
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Host InterfacePCI Express 3.0 x8
-
Manufacturer Part NumberX710T4
-
Media Type SupportedTwisted Pair
-
Network Technology10GBase-T
-
Number of Network (RJ-45) Ports4
-
Package ContentsEthernet Converged Network Adapter X710-T4 Low-profile Bracket
-
Product ModelX710-T4
-
Product NameEthernet Converged Network Adapter X710-T4
-
Product SeriesX710
-
Product Type10Gigabit Ethernet Card
-
Total Number of Ports4
