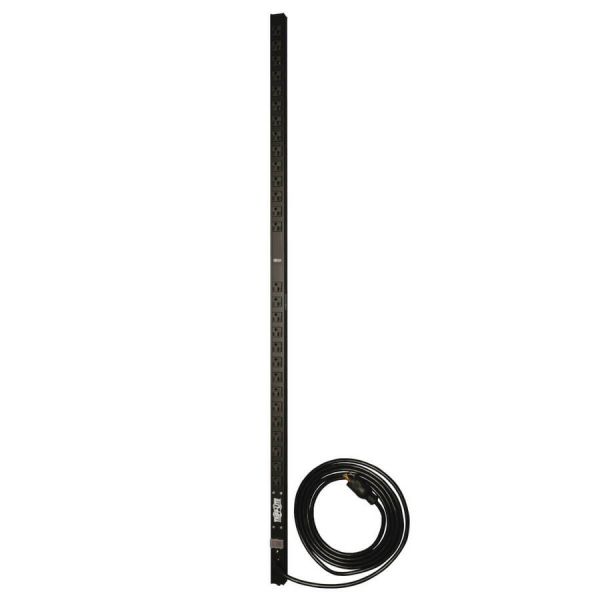

Tripp Lite by Eaton PDU 1.9kW 120V Single-Phase Basic PDU - 28 NEMA 5-15/20R Outlets L5-20P Input (5-20P Adapter) 15 ft. Cord 60 in. 0U Rack
- Ideal no-frills PDU for telecom, security, audio/video and other network applications
- 28 NEMA 5-15/20R outlets distribute AC power to connected equipment
- Lighted power switch with protective cover helps prevent accidental shutdowns
- 15 ft. cord with L5-20P input (and 5-20P adapter) connects to AC power source
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Tripp Lite by Eaton PDU 1.9kW 120V Single-Phase Basic PDU - 28 NEMA 5-15/20R Outlets L5-20P Input (5-20P Adapter) 15 ft. Cord 60 in. 0U Rack - Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20-60 features 28 NEMA 5-15/20R outlets for connecting equipment. A 15-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
A lighted on/off switch is protected by a transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The 60-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Bolt-down retention brackets keep power cords organized and your rack free of clutter.
Typical Applications
Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications
- Ideal no-frills PDU for telecom, security, audio/video and other network applications
- 28 NEMA 5-15/20R outlets distribute AC power to connected equipment
- Lighted power switch with protective cover helps prevent accidental shutdowns
- 15 ft. cord with L5-20P input (and 5-20P adapter) connects to AC power source
- 60 in. 0U PDU with included mounting brackets installs in rack or under counter
- 2-year limited warranty
- PDU provides active metering enabling energy optimization and circuit protection
- Basic PDU is the space-saving and cost-effective way to deliver power
- NEMA 5-15/20R receptacle type to ensure maximum productivity with added feasibility
- Single Phase phase PDU provides dependable power output with maximum efficiency
- NEMA 5-20P plug/connector type for better, dependable connectivity and desired power output
- 120 V AC input voltage for optimal performance with maximum usability
- 100 V AC output voltage for maximum dependability and added productivity
Product Specifications
-
Brand NameTripp Lite by Eaton
-
Country of OriginChina
-
Depth1.6"
-
Environmentally FriendlyYes
-
Height60.5"
-
Input Current20 A
-
Input Voltage120 V AC
-
Limited Warranty2 Year
-
Manufacturer Part NumberPDUV20-60
-
Mount TypeRack-mountable
-
Mounting OrientationVertical
-
Output Voltage100 V AC 120 V AC 127 V AC
-
Package ContentsPDUV20-60 28-Outlet PDU L5-20P to 5-20P Input Plug Adapter Plug Retention Brackets with Installation Hardware Rack-Mounting Hardware Owner's Manual
-
PhaseSingle Phase
-
Plug/Connector TypeNEMA 5-20P NEMA L5-20P
-
Power Rating (Watt)2030 W
-
Product ModelPDUV20-60
-
Product NamePDUV20-60 28-Outlet PDU
-
Product TypePDU
-
Protection TypeOverload Protection
-
Rack Height0U
-
Receptacle Detail28 x NEMA 5-15/20R
-
Receptacle TypeNEMA 5-15/20R
-
Width1.5"
