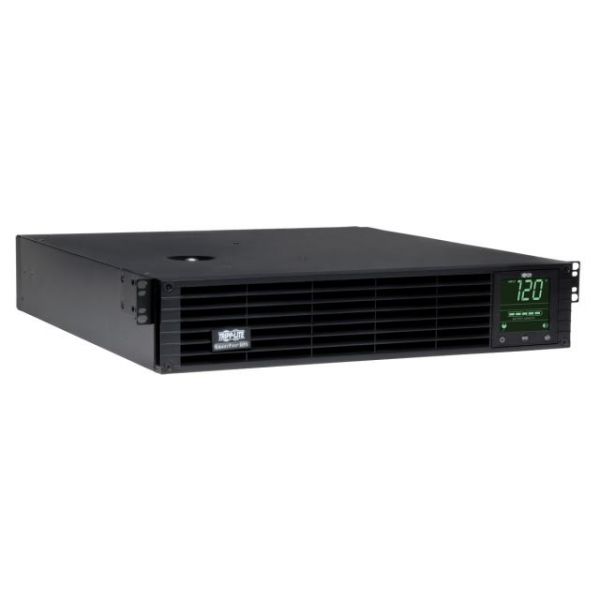

Tripp Lite by Eaton SmartPro 120V 2200VA 1.92kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9
Product Number: SYNX976847
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Tripp Lite by Eaton SmartPro 120V 2200VA 1.92kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9
2200VA/1920W - 6 Minute Full Load - 4 x NEMA 5-15R, 4 x NEMA 5-20R, 1 x NEMA L5-20R
Description:
Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply(UPS) with built-in Auto-Voltage Regulation(AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and installed Network Management Card option, such as Tripp Lite's SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off(EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
- 2.6kVA / 2600VA / 1920W line interactive 2U rack/tower UPS, Sine Wave output
- 120V output, Corrects brownouts and overvoltages from 83V to 145V
- Interactive LCD interface, 4 post compatible mounting accessories
- 96% line-mode efficiency, 2 switched load banks
- USB, RS232, EPO and slot for SNMPWEBCARD option
- 120V NEMA 5-20P input, 4 NEMA 5-15R, 4 NEMA 5-15/20R & 1 L5-20R outlets
- Experience higher efficiency with lower energy cost
- Up to 4.60 minute runtime on full load to preserve critical data from power shortage interruptions
- Prevent critical data loss by staying powered during a blackout with up to 1920 W load capacity
- 2200 VA load capacity provides sufficient backup during power failures
- NEMA 5-20P plug/connector type for a secure, feasible operation
- NEMA 5-15R receptacle type offers ease of operation with maximum efficiency
- 110 V AC input voltage for optimal performance with maximum usability
- 120 V AC output voltage for optimal performance with maximum feasibility
- Rack/Tower form factor allows hassle-free and easy usage with increased efficiency
-
Additional InformationTripp Lite SMART2600RM2U line interactive 2U rack/tower UPS with 2600VA / 2.6kVA / 1920W capacity and extended runtime options Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V NEMA 5-20P input plug; 4 NEMA 5-15/20R, 4 5-15R and 1 L5-20R output receptacles, Two independently switched output load banks Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions Internal batteries offer 12.9 minutes at 50% load (960W) and 4.6 minutes at 100% load (1920W) Extended runtime is available with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual) Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information LCD interface also supports a number of advanced user setup and operating preferences Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable
-
AlarmLow Battery On Battery Overload
-
Battery ChemistrySealed Lead Acid
-
Battery Life6 Year
-
Brand NameTripp Lite by Eaton
-
Country of OriginChina
-
Depth19.5"
-
Emergency Power OFFYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Form FactorRack/Tower
-
Height3.5"
-
Hot SwappableYes
-
Input Voltage110 V AC 115 V AC 120 V AC
-
Limited Warranty3 Year
-
Load Capacity (Watt)1920 W
-
Manufacturer Part NumberSMART2600RM2U
-
Maximum Battery Recharge Time4 Hour
-
Network ManagementSNMP Manageable
-
Output Voltage120 V AC
-
Package ContentsSmartPro SMART2600RM2U UPS PowerAlert Software with USB, Serial & EPO cabling 4 x Post Installation kit Owner's Manual
-
Plug/Connector TypeNEMA 5-20P
-
Product LineSmartPro
-
Product ModelSMART2600RM2U
-
Product NameSmartPro SMART2600RM2U UPS
-
Product TypeLine-interactive UPS
-
Rack Height2U
-
Receptacle Detail1 x NEMA L5-20R 4 x NEMA 5-15/20R 4 x NEMA 5-15R
-
Receptacle TypeNEMA 5-15/20R NEMA 5-15R NEMA L5-20R
-
Receptacles4 x NEMA 5-15R 1 x NEMA 5-20R 4 x NEMA L5-20R
-
RecycledNo
-
Status Indicators5 front panel LEDs - Green POWER LED, Green VOLTAGE CORRECTION LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LED, red BATTERY WARNING LED Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
-
Switching Time4 ms
-
Temperature104°F (40°C)
-
USBYes
-
Waveform TypeSine Wave
-
Width17.3"
