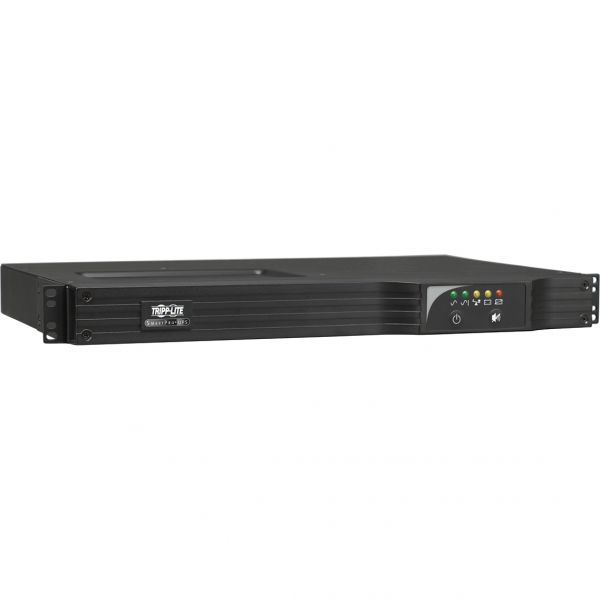

Tripp Lite UPS Smart 500VA 300W Rackmount AVR 120V USB DB9 SNMP 1URM

500 VA/300 W - 0.08 Hour Full Load - 7 x NEMA 5-15R
Product Number: TRPSMART500RT1U
  • 1U rack-mount UPS offers complete power protection for small network applications, including telecom, security and digital signage.
  • Works adequately in situations where the supply is prone to sags and surges
  • Experience higher efficiency with lower energy cost
  • Protects equipment against blackouts, brownouts, transient surges and line noise
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items below to see if a replacement product is available.

Product Description

Tripp Lite UPS Smart 500VA 300W Rackmount AVR 120V USB DB9 SNMP 1URM - UPS System with seven outlets protects network servers against damage and downtime due to blackouts, brownouts, overvoltages and surges. Advanced automatic voltage regulation keeps servers productive through brownouts and overvoltages without using battery power. Up to four built-in communication ports and intelligent operation provide advanced power monitoring and control when used with included PowerAlert Software. Adapts to 1U rackmount or tower applications.

  • 1U rack-mount UPS offers complete power protection for small network applications, including telecom, security and digital signage.
  • Works adequately in situations where the supply is prone to sags and surges
  • Experience higher efficiency with lower energy cost
  • Protects equipment against blackouts, brownouts, transient surges and line noise
  • Keeps AC power running during blackouts to allow time for file saves and safe shutdown
  • Maintains continuous 120V nominal output during brownouts as low as 90V
  • Keep your sensitive devices powered with a backup of up to 3.20 minute at full load
  • 6 NEMA 5-15R outlets power and protect networking, telecom and other sensitive equipment
  • Optional WEBCARDLX network interface allows you 24/7 remote access from anywhere
  • 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
  • $250,000 Ultimate Lifetime Insurance
Tripp Lite logo
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Additional Information
    500VA / 300 watt power handling capability compatibile with networking, telecom and other sensitive electronic devices SMART500RT1U line interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during brownouts, plus network-grade AC surge suppression Supports 1U rackmount installation in 2 or 4 post rack enclosures, upright tower placement also supported - mounting accessories included Large internal batteries offer runtimes of 17 minutes at half load (250VA / 150 watts) and 5 minutes at full load (500VA / 300 watts) Maintains regulated 120V nominal output during brownouts as low as 90V Includes 6 UPS-supported outlets, with one single outlet load bank that can be powered off and back on again via software interface. One additional surge-only outlet powers accessories not requiring battery support PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user-defined script commands Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software. Free PowerAlert enterprise management software is also available for select opportunities Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for scheduled or immediate reboot of connected devices Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires optional WATCHDOGSW) Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter Emergency Power Off (EPO) interface with cable Multi-function audible alarms and set of 5 front panel LEDs Network-grade AC surge suppression Attractive all-black color scheme UPS battery set ships fully assembled and ready for installation, no time consuming connection of internal batteries by user is necessary Two year warranty with $250,000 connected equipment insurance (USA & Canada only)
  • Alarm
    On Battery Overload UPS Fault Low Battery
  • Backup/Run Time
    0.08 Hour 353.55 W Full Load 0.28 Hour 176.78 W Half Load
  • Battery Chemistry
    Sealed Lead Acid (SLA)
  • Brand Name
    Tripp Lite
  • Color
    Black
  • Cord Length
    10 ft
  • Country of Origin
    China
  • Depth
    11.8"
  • Emergency Power OFF
    Yes
  • Form Factor
    Rack/Tower
  • Hot Swappable
    Yes
  • Input Voltage
    120 V AC
  • Limited Warranty
    3 Year
  • Load Capacity
    500 VA/300 W
  • Manufacturer
    Tripp Lite
  • Manufacturer Part Number
    SMART500RT1U
  • Manufacturer Website Address
    www.tripplite.com
  • Maximum Operating Temperature
    122°F (50°C)
  • Network Management
    SNMP Manageable
  • Output Voltage
    120 V AC
  • Package Contents
    Mounting hardware Cabling for USB & DB9 monitoring and EPO switching PowerAlert unattended shutdown and UPS/Power monitoring software Warranty information and instruction manual SMART500RT1U UPS System
  • Plug/Connector Type
    NEMA 5-15P
  • Product Line
    SmartPro
  • Product Name
    SmartPro 500VA Rack/Tower UPS
  • Product Type
    Line-interactive UPS
  • Rack Height
    1U
  • Receptacles
    6 x NEMA 5-15R
  • Serial Port
    Yes
  • Shipping Dimensions
    5" Height x 22.50" Width x 16" Depth
  • Software Included
    PowerAlert Software
  • Status Indicators
    5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.
  • Surge Energy Rating
    480 J
  • System Requirements
    TYPICAL APPLCIATIONS: Ideal for protection of fileservers, network accessories and telecommunications equipment in server rooms, internetworking closets, co-location racks, kiosks and a variety of other locations. Common applications include any mix of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching systems.
  • Temperature
    32?F (0?C) to 104?F (40?C) Operating 5?F (-15?C) to 122?F (50?C)
  • Transfer Time
    4 ms
  • Typical Battery Recharge Time
    4 Hour
  • USB
    Yes
  • Waveform Type
    Pulse-width Modulated Sine Wave
  • Weight (Approximate)
    18.80 lb
  • Width
    17.5"
