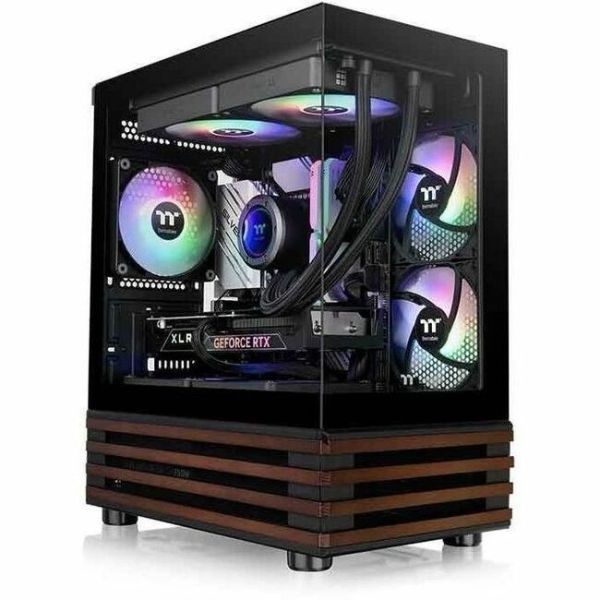

Thermaltake View 170 WS ARGB Micro Chassis
Product #:
ETLZ1087544179
$91.89
Loading...
Product Description
Thermaltake View 170 WS ARGB Micro Chassis
Black - Tempered Glass, SPCC - 3 x Bay - 3 × 120mm Fan(s) Installed - Mini ITX, Micro ATX Motherboard Supported - 7 x Fan(s) Supported - 1 x Internal 3.5" Bay - 2 x Internal 2.5" Bay - 4x Slot(s) - 2 x USB(s) - 2 x USB 3.0 - 1 x Audio In - 1 x Audio Out - Fan Cooler
View 170 WS ARGB Micro Chassis
Built for amazing views, the View 170 WS ARGB Micro Chassis is an M-ATX case accented with stylish wood elements, featuring tempered glass front and left panels, and comes with two 120mm ARGB Lite Reverse Fan on motherboard side and one 120mm ARGB Lite Fan pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Additionally, up to seven 120mm fans can be installed in the chassis, and up to a 280mm/240mm radiator can be placed on the top of the View 170 WS ARGB Micro Chassis.
Tempered Glass Front and Left Panels
The View 170 WS ARGB Micro Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
Up to a 280mm/240mm Radiator
Providing good cooling support, users can choose to place a 280mm/240mm radiator on the top of the View 170 WS ARGB Micro Chassis.
Pre-installed Fan System
The View 170 WS ARGB Micro Chassis comes with two 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear. It's fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Flexibility to Build Your Ideal PC
The View 170 WS ARGB Micro Chassis offers good expandability. It can support a CPU cooler with a maximum height of 160mm, GPU placement up to 340mm in length, a power supply up to 180mm in length. Optimized for excellent cooling performance, the case comes with two 120mm ARGB Lite Reverse Fan on motherboard side and one 120mm ARGB Lite Fan at the rear, and up to seven 120mm fans can be installed. For radiator compatibility, it can support up to a 280mm/240mm on top, giving more options for high-end expansion!
Dimensions
CPU Cooler
Max height 160mm
Motherboard
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX)
PSU
Max length 180mm
VGA
Length limitation 410mm (Without radiator) 340mm
Fan Capacity
120mm
140mm
Radiator Capacity:
120mm
140mm
240mm
280mm
How Much Storage Is Totally Up To You
For storage compatibility, the View 170 WS ARGB Micro Chassis gives maximum support of up to two 2.5'' SSDs and one 3.5'' HDD in total.
Handy I/O Ports
Two USB 3.0 ports and an HD audio port are located on the top panel for instant access when needed.
Built for amazing views, the View 170 WS ARGB Micro Chassis is an M-ATX case accented with stylish wood elements, featuring tempered glass front and left panels, and comes with two 120mm ARGB Lite Reverse Fan on motherboard side and one 120mm ARGB Lite Fan pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Additionally, up to seven 120mm fans can be installed in the chassis, and up to a 280mm/240mm radiator can be placed on the top of the View 170 WS ARGB Micro Chassis.
Tempered Glass Front and Left Panels
The View 170 WS ARGB Micro Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
Up to a 280mm/240mm Radiator
Providing good cooling support, users can choose to place a 280mm/240mm radiator on the top of the View 170 WS ARGB Micro Chassis.
Pre-installed Fan System
The View 170 WS ARGB Micro Chassis comes with two 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear. It's fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Flexibility to Build Your Ideal PC
The View 170 WS ARGB Micro Chassis offers good expandability. It can support a CPU cooler with a maximum height of 160mm, GPU placement up to 340mm in length, a power supply up to 180mm in length. Optimized for excellent cooling performance, the case comes with two 120mm ARGB Lite Reverse Fan on motherboard side and one 120mm ARGB Lite Fan at the rear, and up to seven 120mm fans can be installed. For radiator compatibility, it can support up to a 280mm/240mm on top, giving more options for high-end expansion!
Dimensions
CPU Cooler
Max height 160mm
Motherboard
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX)
PSU
Max length 180mm
VGA
Length limitation 410mm (Without radiator) 340mm
Fan Capacity
120mm
140mm
Radiator Capacity:
120mm
140mm
240mm
280mm
How Much Storage Is Totally Up To You
For storage compatibility, the View 170 WS ARGB Micro Chassis gives maximum support of up to two 2.5'' SSDs and one 3.5'' HDD in total.
Handy I/O Ports
Two USB 3.0 ports and an HD audio port are located on the top panel for instant access when needed.
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
- 3 bays mean more PC components can be added to enhance system's performance
Loading...
Product Specifications
-
Brand NameThermaltake
-
Cooler TypeFan Cooler
-
Depth15"
-
Fan Supported DetailsTop: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: Rear: 1 x 120mm Power Cover:
-
FeaturesARGB Fan
-
Front Audio InYes
-
Front Audio OutYes
-
Front USBYes
-
Height17.2"
-
Installed Fan Size4.72"
-
Installed Fan Size Details3 × 120mm
-
Limited Warranty3 Year
-
Manufacturer Part NumberCA-1Z4-00M1WN-WS
-
Motherboard SupportedMini ITX Micro ATX
-
Number of Fans Installed3
-
Number of Fans Supported7
-
Number of Internal 2.5" Bays2
-
Number of Internal 3.5" Bays1
-
Number of Total Expansion Bays3
-
Product LineView
-
Product ModelView 170 WS ARGB
-
Product NameView 170 WS ARGB Micro Chassis
-
Product TypeComputer Case
-
Total Number of Audio In Ports1
-
Total Number of Audio Out Ports1
-
Total Number of Expansion Slots4
-
Total Number of USB Ports2
-
Width8.4"
-
Window Panel LocationFront Left Side
