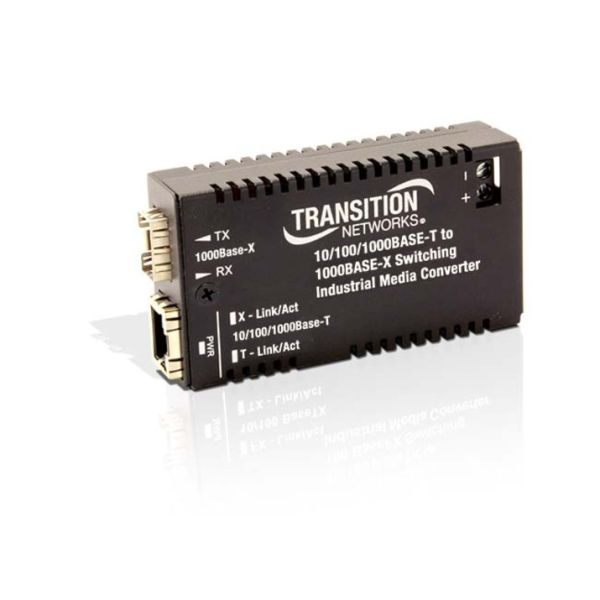

Transition Networks Hardened Mini 10/100/1000 Bridging Media Converter

Product #: ETLZ1034274999
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Transition Networks Hardened Mini 10/100/1000 Bridging Media Converter
1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Multi-mode - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-TX - AC Adapter - Rail-mountable, Wall Mountable
This hardened Gigabit Mini Media Converter provides a cost-effective method for integrating fiber optic cabling into hardened or outdoor 10/100/1000 UTP environments. With its miniature size, the Mini offers a space saving alternative while it converts copper to fiber with the smallest footprint
available in the industry.

The M/GE-ISW-xx-01 features wide operating temperature range, low voltage input power, multiple mounting methods, and Transition Networks' Lifetime Warranty. These problem solvers will ensure a quick and trouble free installation in harsh outdoor or hardened applications.
  • For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
  • With Twisted Pair cable, get the desired data transfer rate up to a required distance
  • Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
  • With 1000Base-SX technology get up to 1000Mbps data transfer rate over optical fiber cable
  • The Rail-mountable provides convenient installation
Need more information? Ask a Question

Product Specifications

  • Brand Name
    Transition Networks
  • Country of Origin
    Taiwan
  • DVI
    No
  • Depth
    3.3"
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    Gigabit Ethernet
  • Fiber Mode Supported
    Multi-mode
  • Form Factor
    Rail-mountable Wall Mountable
  • Height
    0.9"
  • LC Port Type
    Duplex
  • Limited Warranty
    Lifetime
  • Management Port
    No
  • Manufacturer Part Number
    M/GE-ISW-LC-01
  • Media Type Supported
    Optical Fiber Twisted Pair
  • Network (RJ-45)
    Yes
  • Network Technology
    10/100/1000Base-TX 1000Base-SX
  • Number of LC Ports
    1
  • Number of Network (RJ-45) Ports
    1
  • Package Contents
    Hardened Mini 10/100/1000 Bridging Media Converter DIN Rail Clip Velcro
  • Power Source
    AC Adapter
  • Product Model
    M/GE-ISW-LC-01
  • Product Name
    Hardened Mini 10/100/1000 Bridging Media Converter
  • Product Type
    Transceiver/Media Converter
  • Total Number of Ports
    2
  • USB
    No
  • Width
    1.8"
