Transition Networks Mini Gigabit Ethernet Media Converter

Product #: ETLZ1053980033
$306.90
Ships Free - This items ships free with your order
Delivered by Mon 1/5 Mon 1/5 - This is an estimated delivery timeline

Product Description

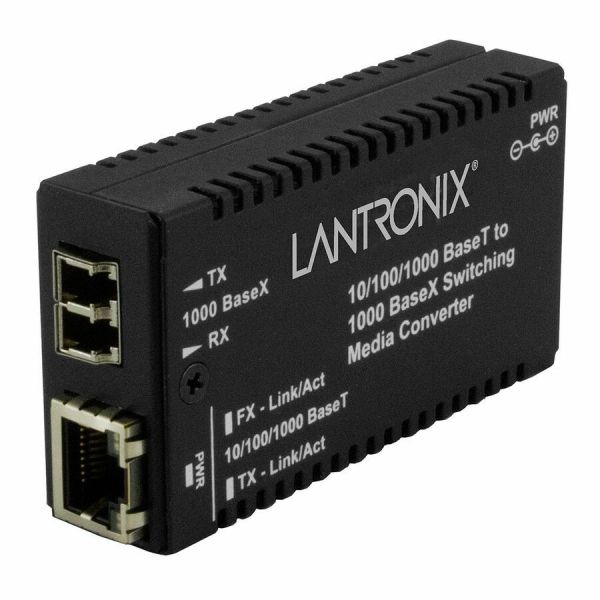

Transition Networks Mini Gigabit Ethernet Media Converter
1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Multi-mode - 0 mil Fiber - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - 0.55 km - AC Adapter - Wall Mountable
The M/GE-PSW Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and with its small size, it is ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
  • Unit & Port LEDs allow for quick status information
  • Auto-Negotiation
  • Fixed Full-Duplex on fiber
  • Auto-MDI/MDIX
  • Active Link Pass Through
  • Automatic Link Restoration
  • Space saving design
  • Connect Legacy Networking Equipment: Connect an existing 10/100 Mbps device to 1000 Mbps devices.
  • Jumbo Frame (up to 10,240 Bytes)
  • USB Power Option, requires the use of a USB to DC barrel connector cable (USBC-AM-DC)
  • Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
  • Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
  • With 1000Base-SX technology get up to 1000Mbps data transfer rate over optical fiber cable
  • The Wall Mountable provides convenient installation
Guides & Information
Need more information? Ask a Question

Product Specifications

  • Additional Information
    10/100/1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-SX 850nm multimode (LC) [62.5/125 µm fiber: 220 m/722 ft.] Link Budget: 7.0 dB [50/125 µm fiber: 550m/1804 ft.] Link Budget: 7.0 dB
  • Application/Usage
    Network
  • Brand Name
    Transition Networks
  • Certifications & Standards
    Safety: Wall Mount Power Supply, UL Listed, cUL Listed (Canada) FCC Class A, CISPR22/EN55022 Class A, EN55024, CE Mark
  • Depth
    3.3"
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    Gigabit Ethernet
  • Fiber Mode Supported
    Multi-mode
  • Fiber Optic Cable Core/Cladding Specification
    50/125 µm 62.5/125 µm
  • Fiber Optic Cable Wavelength
    850 nm
  • Form Factor
    Wall Mountable
  • Height
    0.9"
  • Input Voltage
    12 V DC
  • LC Port Type
    Duplex
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    M/GE-PSW-SX-01(LC)NA
  • Maximum Data Transfer Rate
    1000 Mbit/s
  • Maximum Distance Supported
    0.55 km
  • Media Type Supported
    Optical Fiber Twisted Pair
  • Network (RJ-45)
    Yes
  • Network Technology
    10/100/1000Base-T 1000Base-SX
  • Number of LC Ports
    1
  • Number of Network (RJ-45) Ports
    1
  • Package Contents
    Mini Gigabit Ethernet Media Converter Power Supply
  • Power Consumption
    3.15 W
  • Power Source
    AC Adapter
  • Product Model
    M/GE-PSW-SX-01(LC)
  • Product Name
    Mini Gigabit Ethernet Media Converter
  • Product Series
    M/GE-PSW
  • Product Type
    Transceiver/Media Converter
  • TAA Compliant
    Yes
  • Total Number of Ports
    2
  • Width
    1.8"
