Transition Networks SGFEB1019-130 Transceiver/Media Converter

Product #: ETLZ1029442207
$591.81
Ships Free - This items ships free with your order
Delivered by Mon 1/5 Mon 1/5 - This is an estimated delivery timeline

Product Description

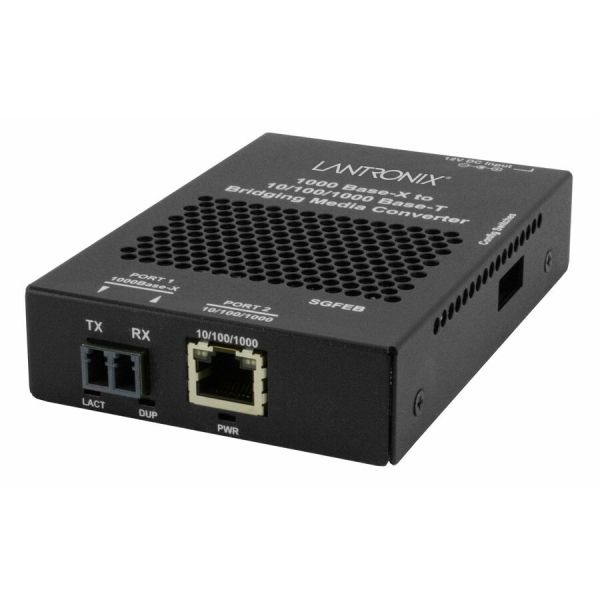

Transition Networks SGFEB1019-130 Transceiver/Media Converter
1 x Network (RJ-45) - 1 x LC Ports - Single-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-LX - 10 km - AC Adapter - Rail-mountable, Wall Mountable, Desktop
The SGFEB provides a cost effective method for integrating 1000Base-SX/LX fiber into a 10/100/1000Base-T copper environment. Deploying fiber into today's networks provides the ability to transmit data over significantly longer distances than is possible on copper. Fiber also protects your data from external sources of noise and interference, improving network performance.
  • With Twisted Pair cable, get the desired data transfer rate up to a required distance
  • Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
  • With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
  • Can be placed on Desktop surface for standalone installation
Guides & Information
Need more information? Ask a Question

Product Specifications

  • Additional Information
    10/100/1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-LX 1310nm single mode (LC) [10 km/6.2 mi.] Link Budget 10.5 dB
  • Application/Usage
    Network
  • Brand Name
    Transition Networks
  • Certifications & Standards
    EN55022 Class A, EN55024, FCC Class A, CE Mark Safety: Wall Mounted Power Supply: UL Listed, UL60950 and CSA Certified
  • Country of Origin
    Taiwan
  • DVI
    No
  • Depth
    4.8"
  • Environmental Compliance
    Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    Gigabit Ethernet
  • Fiber Mode Supported
    Single-mode
  • Fiber Optic Cable Wavelength
    1310 nm
  • Form Factor
    Desktop Rail-mountable Wall Mountable
  • Height
    1"
  • Input Voltage
    24 V DC 7.5 V DC
  • Limited Warranty
    Lifetime
  • Management Port
    No
  • Manufacturer Part Number
    SGFEB1019-130-NA
  • Maximum Data Transfer Rate
    1000 Mbit/s
  • Maximum Distance Supported
    10 km
  • Media Type Supported
    Optical Fiber Twisted Pair
  • Network (RJ-45)
    Yes
  • Network Technology
    10/100/1000Base-T 1000Base-LX
  • Number of LC Ports
    1
  • Number of Network (RJ-45) Ports
    1
  • Package Contents
    SGFEB1019-130 Transceiver/Media Converter Power Supply - North America
  • Power Consumption
    2.20 W
  • Power Source
    AC Adapter
  • Product Model
    SGFEB1019-130
  • Product Name
    SGFEB1019-130 Transceiver/Media Converter
  • Product Series
    SGFEB
  • Product Type
    Transceiver/Media Converter
  • TAA Compliant
    Yes
  • Total Number of Ports
    2
  • USB
    No
  • Width
    3.3"
