Transition Networks M/E-ISW Transceiver/Media Converter

Product #: ETLZ1056489586
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

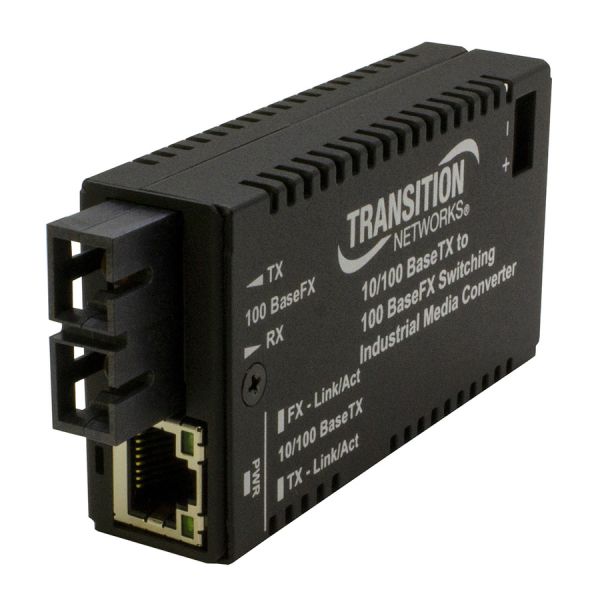

Transition Networks M/E-ISW Transceiver/Media Converter
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - 0.1 mil Fiber - Fast Ethernet - 10/100Base-TX, 100Base-FX - 2 km - Power Supply - Rail-mountable, Wall Mountable
The M/E-ISW Series is a hardened Fast Ethernet Mini media converter that provides a cost effective, plug-and-play media conversion between 10/100Base-TX ports and 100Base-FX ports for hardened or outdoor 10/100 environments. With its supported operating temperature range of -40°C to 75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments.
  • Unit and Port LEDs provide quick status
  • Auto-Negotiation
  • Fixed Full-Duplex on fiber
  • Auto-MDI/MDIX
  • Link Pass Through
  • Active Link Pass Through on SFP version
  • Automatic Link Restoration
  • Far-End-Fault (FEF)
  • DC and AC power inputs via terminal block
  • Includes barrel connector pig-tail cable
  • With Twisted Pair cable, get the desired data transfer rate up to a required distance
  • Expand your network capabilities with this 2 transceiver/media converter
  • With 10/100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable
  • The Rail-mountable provides convenient installation
Need more information? Ask a Question

Product Specifications

  • Brand Name
    Transition Networks
  • Country of Origin
    Taiwan
  • Depth
    3.3"
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    Fast Ethernet
  • Fiber Mode Supported
    Multi-mode
  • Fiber Optic Cable Wavelength
    0.1 mil
  • Form Factor
    Rail-mountable Wall Mountable
  • Height
    0.9"
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    M/E-ISW-FX-02(SC)
  • Maximum Distance Supported
    2 km
  • Media Type Supported
    Optical Fiber Twisted Pair
  • Network (RJ-45)
    Yes
  • Network Technology
    10/100Base-TX 100Base-FX
  • Number of Network (RJ-45) Ports
    1
  • Number of SC Ports
    1
  • Package Contents
    M/E-ISW Transceiver/Media Converter Barrel Connector Pig-tail Cable DIN Rail Clip and Velcro
  • Power Source
    Power Supply
  • Product Name
    M/E-ISW Transceiver/Media Converter
  • Product Series
    M/E-ISW
  • Product Type
    Transceiver/Media Converter
  • SC Port Type
    Duplex
  • Total Number of Ports
    2
  • Width
    1.8"
