Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter
Product #:
ETLZ1053379159
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

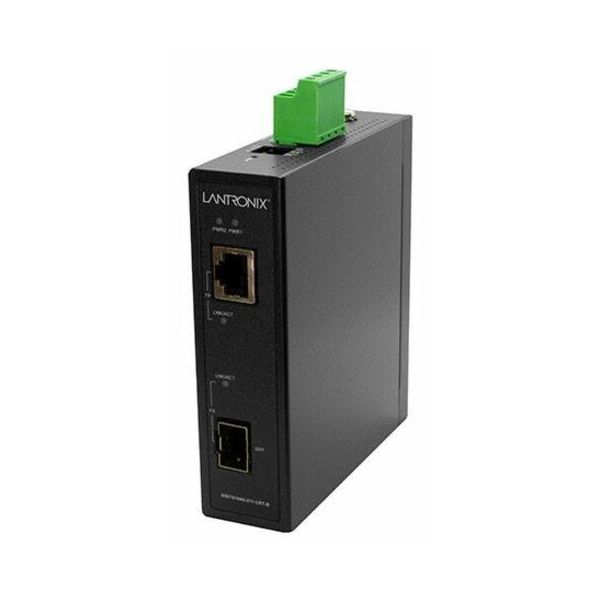

Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter
1 x Network (RJ-45) - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - 0.10 km - 1.0 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - Power Supply - Rail-mountable
The SISTG10xx-211-LRT-B Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs.
It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry.
It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry.
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Extended operating temperature (-40°C to 75°C)
- Dual, Redundant, 12-48 VDC Power Inputs
- Reverse Polarity Power Input Protection
- Overload Current Protection
- DIN Rail Mounting Brackets Included
- Class 1, Div 2 Certified
- Jumbo Frame: 9K bytes
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- Connect different types of media within a network with this single port
- With 1000Base-X technology get up to 1000Mbps data transfer rate over twisted pair cable
- The Rail-mountable provides convenient installation
Product Specifications
-
Brand NameTransition Networks
-
Certifications & StandardsUL Class 1 Div 2 for hazardous environments CISPR/EN55022 Class A FCC Class A CE Mark EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)
-
Country of OriginTaiwan
-
Depth3.9"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet
-
Expansion Slot TypeSFP (mini-GBIC)
-
Form FactorRail-mountable
-
Height4.3"
-
Limited Warranty5 Year
-
Manufacturer Part NumberSISTG1040-211-LRT-B
-
Maximum Data Transfer Rate1000 Mbit/s
-
Maximum Distance Supported0.10 km
-
Media Type SupportedOptical Fiber Twisted Pair
-
Network (RJ-45)Yes
-
Network Technology10/100/1000Base-T 1000Base-X
-
Number of Network (RJ-45) Ports1
-
Number of SFP Slots1
-
Package ContentsUnmanaged Hardened Gigabit Ethernet Media Converter DIN Rail Mounting Brackets
-
Power Consumption3.40 W
-
Power SourcePower Supply
-
Product ModelSISTG1014-211-LRT-B
-
Product NameUnmanaged Hardened Gigabit Ethernet Media Converter
-
Product SeriesSISTG10xx-211-LRT-B
-
Product TypeTransceiver/Media Converter
-
TAA CompliantYes
-
Total Number of Expansion Slots1.0
-
Total Number of Ports1
-
Width1.2"
