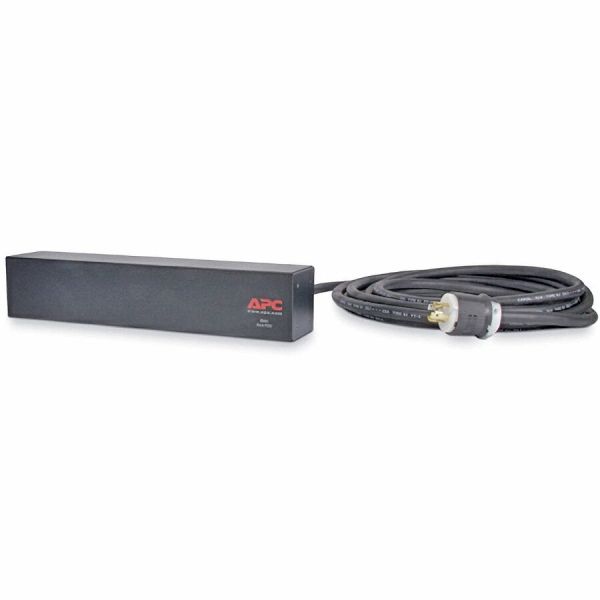

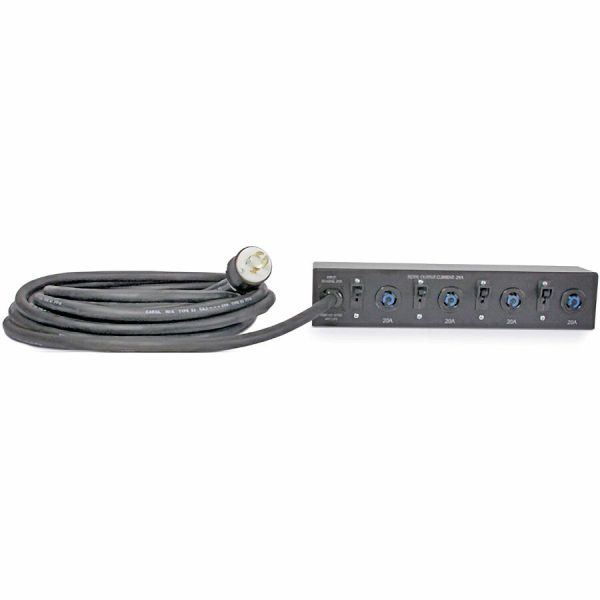

APC NetShelter Basic Rack PDU Extender, 2U, 30A, 200/208V, 4 NEMA L6-20 outlet

(1 review)
|
Product #: SYNX1015306
$783.71
Ships Free - This items ships free with your order
Delivered by Mar 3 Delivered by Mar 3 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

APC NetShelter Basic Rack PDU Extender, 2U, 30A, 200/208V, 4 NEMA L6-20 outlet
Basic - NEMA L14-30P - 4 x NEMA L6-20R - 200 V, 208 V - 4992 W - 27.99 ft Cord Length - 2U - Horizontal - Rack-mountable
It is a basic rack PDU with a 2U horizontal mounting design. It supports a maximum input current of 30A and operates at 200V and 208V. The PDU features 4 NEMA L6-20R outlets, providing connections for IT equipment. It includes a 28-foot power cord with a NEMA L14-30P plug. The unit is designed for reliable power distribution and includes an installation guide and rack mounting brackets.
  • Supports up to 30A, 200 and 208V power distribution
  • Equipped with 4 NEMA L6-20R outlets for versatile power connections
  • Horizontal mounting to fit various rack configurations
  • 28 ft cord for flexible installation
  • Provide circuit protection and easy configuration for trouble-free access
  • Basic PDU is the space-saving and cost-effective way to deliver power
  • NEMA L6-20R receptacle type to ensure maximum dependability and optimal performance
  • Perfect placement of your PDU with Front ensure lesser cooling cost
  • NEMA L14-30P plug/connector type for efficient connectivity and feasible power output
  • 200 V input voltage for better reliance and maximum dependability
  • 208 V AC output voltage for better reliance and maximum usability
  • A device fitted with multiple outputs for the distribution of electric power
  • With proper ventilation, your Front PDU will work efficiently
  • NEMA L14-30P plug/connector type for better, dependable connectivity and desired power output
  • 200 V input voltage for maximum feasibility and added productivity
  • 208 V AC output voltage for optimal performance with maximum feasibility
Guides & Information
Need more information? Ask a Question

Product Specifications

  • Brand Name
    APC by Schneider Electric
  • Certifications & Standards
    cUL Listed|METI Denan|UL Listed
  • Circuit Breaker
    Yes
  • Cord Length
    27.99 ft
  • Country of Origin
    India
  • Depth
    3.5"
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759126&lang=en-us
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009EN
  • Environmentally Friendly
    Yes
  • For Country/Region
    United States
  • Form Factor
    Rack-mountable
  • Height
    3.5"
  • Input Voltage
    200 V 208 V
  • Input Voltage Range
    120 V AC - 208 V AC
  • Lead Free
    Yes
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    AP7581
  • Mount Type
    Rack-mountable
  • Mounting Preference
    Lower
  • Output Voltage
    208 V AC
  • Package Contents
    Basic Rack 4.992kVA Extender PDU Installation Guide Rack Mounting Brackets
  • Parts Warranty/Labor
    2 Year
  • Placement
    Front Rear
  • Plug/Connector Type
    NEMA L14-30P
  • Power Rating
    4.99 kVA
  • Power Rating (VA)
    4992 VA
  • Product Color
    Black
  • Product Line
    Basic Rack
  • Product Name
    Basic Rack 4.992kVA Extender PDU
  • Product Take Back Program
    No
  • Product Type
    PDU
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759126&lang=en-us
  • REACH free of SVHC
    Yes
  • Rack Height
    2U
  • Receptacle Detail
    4 x NEMA L6-20R
  • Receptacle Type
    NEMA L6-20R
  • WEEE Statement
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Width
    17.2"
