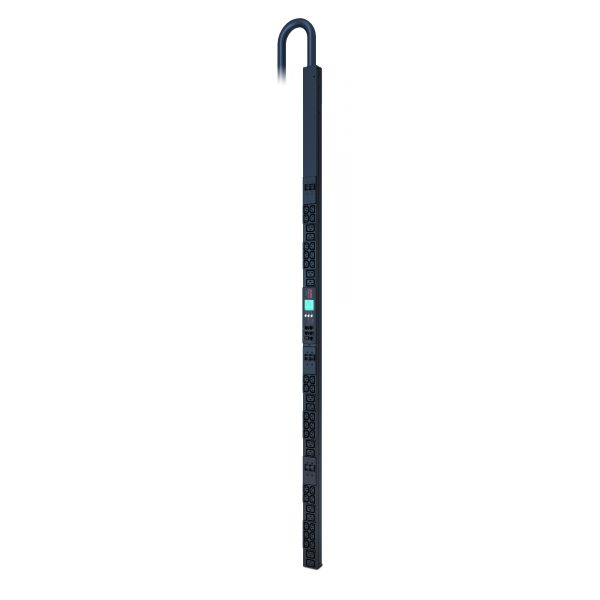

APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19

Product Number: SYNX3343252
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19
Metered - IEC 60309 30A 3P+N+E - 30 x IEC 60320 C13, 12 x IEC 60320 C19 - 400 V - 17.30 kW - Overload Protection - 6 ft Cord Length - 0U - Rack-mountable - Tower
Description:
Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.
  • PDU distributes AC power to multiple servers and balances the load on the servers
  • Metered PDU offers reliable, rack-mount and multi-outlet power source
  • IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
  • IEC 60309 30A 3P+N+E plug/connector type for reliable, productive connectivity and optimal power output
  • 400 V input voltage for maximum feasibility and added productivity
  • 240 V AC output voltage for better reliance and maximum usability
  • PDU improves efficiency, uptime and growth of data centers
  • IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • 240 V AC output voltage for optimal performance with maximum feasibility
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Additional Information
    Input Connections: IEC 309 30A 3P+N+E
  • Additional Warranty Information
    2 years repair or replace
  • Brand Name
    APC by Schneider Electric
  • Certifications & Standards
    cUL Listed|UL Listed|VCCI Class A
  • Cord Length
    6 ft
  • Country of Origin
    Philippines
  • Depth
    2"
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384164426&lang=en-us
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
  • Environmentally Friendly
    Yes
  • Form Factor
    Tower
  • Green Premium
    Yes
  • Height
    72"
  • Input Voltage
    400 V
  • Lead Free
    Yes
  • Limited Warranty
    2 Year
  • Management
    SNMP Telnet Protocols: Web
  • Manufacturer Part Number
    AP8887
  • Mercury Free
    Yes
  • Mount Type
    Rack-mountable
  • Optimized Energy Efficiency
    Yes
  • Output Voltage
    240 V AC
  • Package Contents
    Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19 Installation guide Rack mounting brackets Safety guide Serial configuration cable
  • Plug/Connector Type
    IEC 60309 30A 3P+N+E
  • Power Rating (VA)
    17.30 kVA
  • Product Color
    Black
  • Product Line
    Metered Rack
  • Product Name
    Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19
  • Product Take Back Program
    Yes
  • Product Type
    PDU
  • Protection Type
    Overload Protection
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384164426&lang=en-us
  • REACH free of SVHC
    No
  • Rack Height
    0U
  • Receptacle Detail
    12 x IEC 60320 C19 30 x IEC 60320 C13
  • Receptacle Type
    IEC 60320 C13 IEC 60320 C19
  • RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8887_ROHS_DECLARATION&p_FileName=AP8887KIT_ROHS_DECLARATION_US.pdf
  • Width
    2.2"
