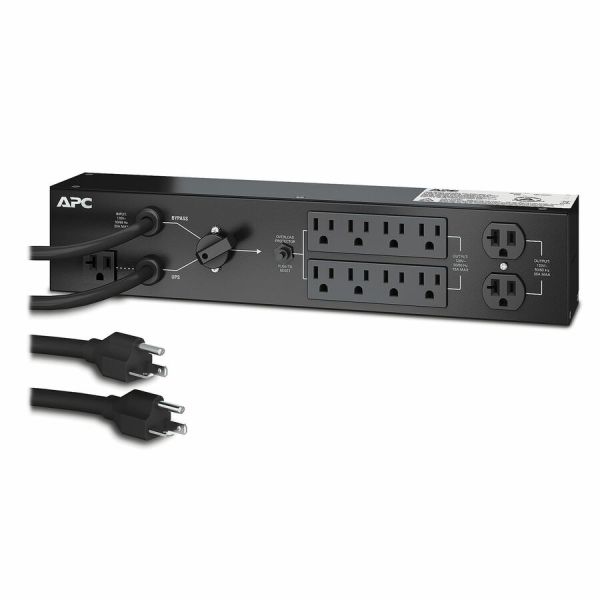

APC SERVICE BYPASS PDU, 120V 20AMP W/ (8) NEMA 5-15R AND (2) 5-20R

(1 review)
|
Product #: SYNX3024735
$402.26
Ships Free - This items ships free with your order
Delivered by Mon 12/22 Tue 12/23 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

APC SERVICE BYPASS PDU, 120V 20AMP W/ (8) NEMA 5-15R AND (2) 5-20R
NEMA 5-20P - 2 x NEMA 5-20R, 6 x NEMA 5-15R - 120 V - 2200 W - Overload Protection - 7.87 ft Cord Length - 2U - Rack-mountable
The APC Service Bypass Panel supports output voltage of 120V. It includes 8 NEMA 5-15R and 2 5-20R outlets. It features a 2U rack-mount design and is rack mountable. It includes rack mounting brackets and a user manual.
  • APC SERVICE BYPASS PDU
  • Designed to work with the world's most popular network and server UPS
  • Bypass/UPS switch allows switching the supply to the load b/w the incoming supply & UPS, to isolate UPS for maintenance
  • Includes Rack mounting brackets & User manual
  • 2 years repair or replace warranty
  • PDU provides power control as remote controlled relay & load monitoring
  • NEMA 5-20R receptacle type to ensure maximum dependability and optimal performance
  • Perfect placement of your PDU with Front ensure lesser cooling cost
  • NEMA 5-20P plug/connector type for reliable, productive connectivity and optimal power output
  • 120 V input voltage for better reliance and maximum dependability
  • 120 V AC output voltage for optimal performance with maximum feasibility
Guides & Information
Need more information? Ask a Question

Product Specifications

  • Brand Name
    APC by Schneider Electric
  • Certifications & Standards
    TÜV
  • Cord Length
    7.87 ft
  • Country of Origin
    Philippines
  • Depth
    3"
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=66016922&lang=en-us
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • For Country/Region
    United States
  • Height
    3.5"
  • Input Voltage
    120 V
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    SBP2200RM
  • Mount Type
    Rack-mountable
  • Mounting Preference
    No Preference
  • Output Voltage
    120 V AC
  • Package Contents
    8-Outlets 2.2kVA PDU Rack Mounting Brackets User Manual
  • Placement
    Front
  • Plug/Connector Type
    NEMA 5-20P
  • Power Rating
    2.20 kVA
  • Power Rating (VA)
    2200 VA
  • Product Model
    SBP2200RM
  • Product Name
    8-Outlets 2.2kVA PDU
  • Product Take Back Program
    Yes
  • Product Type
    PDU
  • Protection Type
    Overload Protection
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=66016922&lang=en-us
  • REACH free of SVHC
    Yes
  • Rack Height
    2U
  • Receptacle Detail
    2 x NEMA 5-20R 6 x NEMA 5-15R
  • Receptacle Type
    NEMA 5-15R NEMA 5-20R
  • RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SBP2200RM_ROHS_DECLARATION&p_FileName=SBP2200RMKIT_ROHS_DECLARATION_US.pdf
  • Toxic Heavy Metal Free
    Yes
  • WEEE Statement
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Width
    17"
