Vertiv Avocent AV116 KVM Switch | Single User | 16 port (AV116BND8-400)

Product #: SYNX5467388
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Vertiv Avocent AV116 KVM Switch | Single User | 16 port (AV116BND8-400)

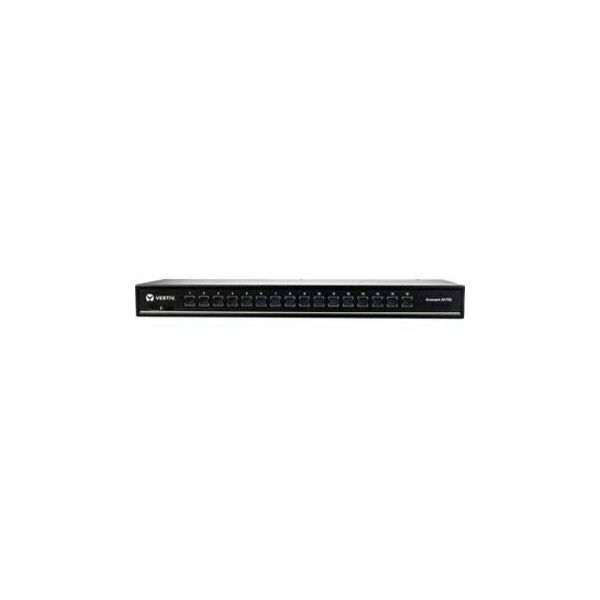

16-port rackmount or desktop single-user KVM switch with OSD and 8 VGA cables
The Vertiv Avocent AV116BND4 is an AutoView 116 (AV116) bundle that contains a 16-port KVM switch and 8 VGA target (CBL0170) cables. This compact, entry-level solution to local server management for small data centers, branch offices, and IT rooms. The straightforward user experience consists of a basic KVM feature set with simple touch button, hotkey operation, and cascade support. It delivers streamlined local access and control designed to be available when needed with user-friendly features for controlling all devices and tasks. The AV116 KVM switch is available in 1U, 0U, and desktop configurations and is easy to configure and maintain. It offers centralized access, management, and event logging when requirements don't allow remote (IP) connectivity to the server.
More from the Manufacturer
  • ANALOG KVM BUNDLE: Avocent AV116 16-Port Single-User KVM Switch allows a local user to control up to 4 computers with a single monitor, keyboard, and mouse; bundle includes 8 6 ft. 26-Pin to VGA Target Cables
  • AFFORDABLE & EFFICIENT: AV116 basic KVM features consolidated server management to streamline access and control to server resources and increase speed to remediation, which improves operational efficiencies
  • EASE OF USE: Easily switch between targets with simple OSD, intuitive push-buttons, hot-key operation, and scan mode
  • SPACE SAVING: AV116's smaller 0U, 1U, and desktop form factor provides users with multiple installation options and reduces cable clutter
  • VIDEO CONNECTIONS: Features 1 USB pass-through port, 2 USB ports, cascade support, internal power supply, and support for both VGA and Display Port (DP) targets with resolutions up to 2048 x 1536
  • Quickly switches between sources without physical access
  • Get reliable connectivity between 16 computers and 1 local users
  • Up to 2048 x 1536 video resolution
  • The Built-in USB port enables easy connection with USB-compatible devices
  • The desktop form factor provides convenient installation
Guides & Information
Need more information? Ask a Question

Product Specifications

  • Brand Name
    Vertiv AVOCENT
  • Connectivity Technology
    Wired
  • Country of Origin
    Mexico
  • Depth
    4.8"
  • Device Type
    Rack KVM
  • Form Factor
    Desktop Rack-mountable
  • Frequency
    50 Hz 60 Hz
  • Height
    1.7"
  • Input Voltage
    120 V AC 230 V AC
  • Input Voltage Range
    100V-240V AC
  • KVM Technology
    Analog
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    AV116BND8-400
  • Maximum Operating Temperature
    122°F (50°C)
  • Maximum Video Resolution
    2048 x 1536
  • Minimum Operating Temperature
    32°F (0°C)
  • Number of Computers Supported
    16
  • Number of Local Users Supported
    1
  • Number of Proprietary Ports
    16
  • Number of USB Ports
    5
  • Number of VGA Ports
    1
  • Package Contents
    AV 116BND8-400 KVM Switchbox 8 x CBL0170 Cables
  • Power Consumption
    10 W
  • Product Line
    AutoView
  • Product Model
    AV 116BND8-400
  • Product Name
    AutoView AV 100 AV 116BND8-400 KVM Switchbox
  • Product Series
    AV 100
  • Product Type
    KVM Switchbox
  • Proprietary Interface
    Yes
  • Rack Height
    1U
  • Serial Port
    Yes
  • USB
    Yes
  • VGA
    Yes
  • Width
    17"
