MSI X870 GAMING PLUS WIFI Gaming Desktop Motherboard - AMD X870 Chipset - Socket AM5 - ATX

Product #: ETLZ1083794800
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

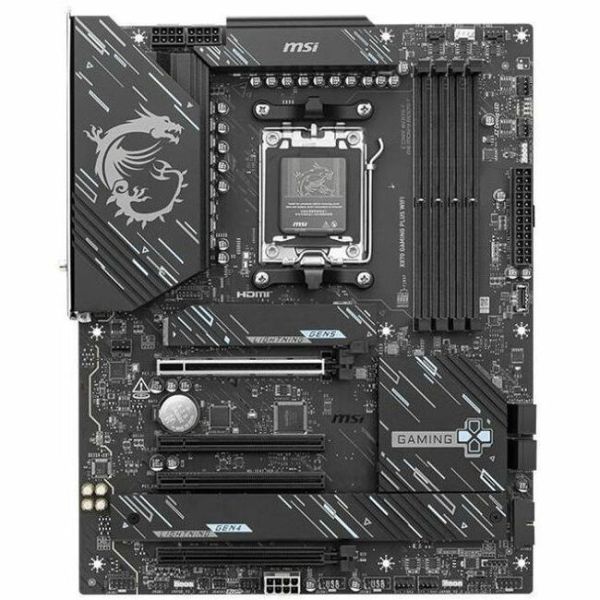

MSI X870 GAMING PLUS WIFI Gaming Desktop Motherboard - AMD X870 Chipset - Socket AM5 - ATX
Ryzen 9, Ryzen 7 Processor Supported - 256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax/be - HDMI - DisplayPort - 4 x SATA Interfaces
X870 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
14+2+1 DRPS POWER DESIGN
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, X870 GAMING PLUS WIFI is ready for the challenge of high-end processors.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
  • Lightning USB 40G Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
  • Lightning Gen 5 The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
  • EZ M.2 Shield Frozr II The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
  • EZ PCIe Clip II Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces
  • Extended Heatsink Design MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
  • Latest DDR5 Memory A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
  • Pre-installed I/O Shielding Better EMI protection and more convenience for installation
  • 5G Network Solution Featuring premium 5G LAN to deliver better network experience
  • Wi-Fi 7 The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
  • Audio Boost Reward your ears with studio grade sound quality for the most immersive audio experience.
  • Compatible Ryzen 9 processor lets you perform all your computational tasks at a swift pace
  • The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
  • RAID supported levels provide data reliability and fault tolerance
  • Enjoy the freedom of Wi-Fi and connect devices faster
  • HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
  • DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
  • Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard
  • With 4 USB 2.0 ports, transfer several documents without error
Guides & Information
Need more information? Ask a Question

Product Specifications

  • AI-powered
    Yes
  • Audio Channels
    7.1
  • Bluetooth
    Yes
  • Bluetooth Standard
    Bluetooth 5.4
  • Brand Name
    MSI
  • Chipset Manufacturer
    AMD
  • Chipset Model
    X870
  • Controller Type
    Serial ATA/600
  • Depth
    9.6"
  • DisplayPort
    Yes
  • Form Factor
    ATX
  • Gigabit Ethernet
    Yes
  • HDMI
    Yes
  • HDMI Version
    2.1
  • Manufacturer Part Number
    X870GAMINGPLUSWIFI
  • Maximum Memory Supported
    256 GB
  • Memory Form Factor
    DIMM UDIMM
  • Memory Speed Supported
    8200 MHz 6400 MHz 4800 MHz
  • Memory Technology
    DDR5 SDRAM
  • Number of M.2 Interfaces
    3
  • Number of Memory Slots
    4
  • Number of Network (RJ-45) Ports
    1
  • Number of Onboard USB 2.0 Ports
    4
  • Number of PCI Express x1 Slots
    2
  • Number of PCI Express x16 Slots
    2
  • Number of SATA Interfaces
    4
  • Number of USB 2.0 Ports
    4
  • Onboard Video
    CPU Dependent Video
  • PCI Express Standard
    PCI Express 3.0 PCI Express 4.0 PCI Express 5.0
  • Processor Socket
    Socket AM5
  • Processor Supported
    Ryzen 9 Ryzen 7
  • Product Model
    X870 GAMING PLUS WIFI
  • Product Name
    X870 GAMING PLUS WIFI Gaming Desktop Motherboard
  • Product Type
    Gaming Desktop Motherboard
  • RAID Levels
    0 1
  • RAID Supported
    Yes
  • Total Number of Expansion Slots
    4
  • Total Number of Onboard USB Ports
    7
  • Total Number of PCI Express Slots
    4
  • Total Number of USB Ports
    10
  • Total Processor Supported
    1
  • Width
    12"
  • Wireless LAN
    Yes
  • Wireless LAN Standard
    IEEE 802.11 a/b/g/n/ac/ax/be
