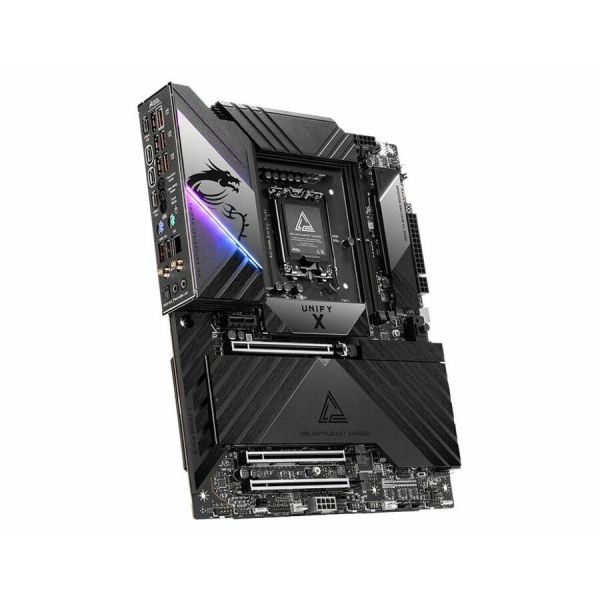

MSI MEG Z890 UNIFY-X Gaming Desktop Motherboard - Intel Z890 Chipset - Socket LGA-1851 - ATX
Product #:
ETLZ1083424639
+6View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
MSI MEG Z890 UNIFY-X Gaming Desktop Motherboard - Intel Z890 Chipset - Socket LGA-1851 - ATX
Core Ultra Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax/be - DisplayPort - 6 x SATA Interfaces
The V power makes the MEG Z890 UNIFY-X motherboard defeating all challenges among Z890 motherboards. Employing AI server-grade TLVR inductor to enhance overall efficiency and provide the extreme performance. It also equips all the latest technology such as DDR5, PCIe 5.0, Killer Wi-fi 7 and 5G LAN, Thunderbolt 4, and all the EZ DIY features and Supplemental PCIe Power, ready for all challenges of gaming and AI.
The MSI ENTHUSIAST GAMING (MEG) series sets the new standard for gaming excellence, offering raw power and precision engineering with sophisticated design philosophy. Each product in the series is crafted to meet the highest standards of gaming performance and elegance, making it the ultimate gaming experience that every gamer dreams of. With mythological power, divine imagery, and ancient lore woven into every aspect of the product line, the MEG series delivers an immersive and captivating gaming experience that is unmatched in sophistication and performance. It transcends being just a collection of products; it represents the pinnacle of gaming luxury, revolutionizing the gaming world and becoming the top choice for discerning gamers worldwide.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
EZ DIY
Tuning Controller is an exclusive accessory designed for overclocking enthusiasts. It allows users to fine-tune overclocking parameters easily with just one click. Featuring multiple shortcut buttons, the Tuning Controller simplifies the complex overclocking process, making it more accessible for power users aiming to optimize system performance with precision.
ULTRA PERFORMANCE
DIRECT 20+2+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 20+2+1+1 digital power phases. Combining dual power connectors and 110A Smart Power Stage, MEG Z890 UNIFY-X is ready for the challenge of high-end processors.
FROZR DESIGN
Aluminum CoverFully aluminum IO cover and extended heatsink design provide the maximum surface of heat dissipation.
Direct Touch Cross Heat-pipeThe U-shape dual heat-pipe connect three MOS heatsinks to enlarge the surface of heat dissipation.
Double-sided M.2 Shield FrozrDouble-sided M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.
9W/mK Thermal PadHigh quality 9W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
Metal BackplateThe metal baseplate cool down the MOSFET temperature with dedicated thermal pads.
Enlarged PCH HeatsinkMSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
The MSI ENTHUSIAST GAMING (MEG) series sets the new standard for gaming excellence, offering raw power and precision engineering with sophisticated design philosophy. Each product in the series is crafted to meet the highest standards of gaming performance and elegance, making it the ultimate gaming experience that every gamer dreams of. With mythological power, divine imagery, and ancient lore woven into every aspect of the product line, the MEG series delivers an immersive and captivating gaming experience that is unmatched in sophistication and performance. It transcends being just a collection of products; it represents the pinnacle of gaming luxury, revolutionizing the gaming world and becoming the top choice for discerning gamers worldwide.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
EZ DIY
Tuning Controller is an exclusive accessory designed for overclocking enthusiasts. It allows users to fine-tune overclocking parameters easily with just one click. Featuring multiple shortcut buttons, the Tuning Controller simplifies the complex overclocking process, making it more accessible for power users aiming to optimize system performance with precision.
ULTRA PERFORMANCE
DIRECT 20+2+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 20+2+1+1 digital power phases. Combining dual power connectors and 110A Smart Power Stage, MEG Z890 UNIFY-X is ready for the challenge of high-end processors.
FROZR DESIGN
Aluminum CoverFully aluminum IO cover and extended heatsink design provide the maximum surface of heat dissipation.
Direct Touch Cross Heat-pipeThe U-shape dual heat-pipe connect three MOS heatsinks to enlarge the surface of heat dissipation.
Double-sided M.2 Shield FrozrDouble-sided M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.
9W/mK Thermal PadHigh quality 9W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
Metal BackplateThe metal baseplate cool down the MOSFET temperature with dedicated thermal pads.
Enlarged PCH HeatsinkMSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
- Extreme DDR5 Memory OC The top-notch R&D design and exclusive 2 DIMM solution for an even clearer DDR5 memory signal to deliver the world class memory performance
- Ultra Power + The ultimate power solution with Direct 20+2+1+1 phases, 110A SPS, and OC Engine unleashes maximum CPU performance.
- Frozr Design Direct Touch Cross Heat-pipe, Aluminum Cover, Double-sided M.2 Shield Frozr, Metal Backplate and Frozr AI software ensure the utmost performance with low temp.
- Dual Thunderbolt™ 4 ports Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant.
- 5G Network Solution Featuring premium 5G LAN to deliver better network experience
- Wi-Fi 7 The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
- Onboard 6x M.2 Connectors Sextuple M.2 connectors with Lightning Gen 5 solution. Doublesided M.2 Shield Frozr keeps M.2 SSDs safe while preventing throttling, making them run faster.
- EZ M.2 Shield Frozr II The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
- EZ PCIe Release A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
- Lightning Gen 5 The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
- Audio Boost 5 Isolated audio with a high quality audio processor & amp for the most immersive gaming experience.
- Core Ultra processors supported for enhanced, dependable system performance with maximum usability
- With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
- RAID supported levels provide data reliability and fault tolerance
- Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11 a/b/g/n/ac/ax/be wireless standard support
- DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
- Thunderbolt host interface provides a fast and reliable transfer of information from your computer to the connected devices
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard
Product Specifications
-
AI-poweredYes
-
Audio Channels7.1
-
BluetoothYes
-
Bluetooth StandardBluetooth 5.4
-
Brand NameMSI
-
Chipset ManufacturerIntel
-
Chipset ModelZ890
-
Controller TypeSerial ATA/600
-
Depth9.6"
-
DisplayPortYes
-
Form FactorATX
-
Gigabit EthernetYes
-
Manufacturer Part NumberZ890UNIFYX
-
Maximum Memory Supported128 GB
-
Memory Form FactorDIMM UDIMM
-
Memory Speed Supported9600 MHz 6400 MHz 4800 MHz 7200 MHz
-
Memory TechnologyDDR5 SDRAM
-
Number of M.2 Interfaces6
-
Number of Memory Slots2
-
Number of Network (RJ-45) Ports1
-
Number of Onboard USB 2.0 Ports4
-
Number of PCI Express x1 Slots1
-
Number of PCI Express x16 Slots3
-
Number of SATA Interfaces6
-
Onboard VideoCPU Dependent Video
-
PCI Express StandardPCI Express 4.0 PCI Express 5.0
-
Processor SocketSocket LGA-1851
-
Processor SupportedCore Ultra
-
Product LineMEG
-
Product ModelZ890 UNIFY-X
-
Product NameMEG Z890 UNIFY-X Gaming Desktop Motherboard
-
Product TypeGaming Desktop Motherboard
-
RAID Levels0 1 10 5
-
RAID SupportedYes
-
S/PDIFYes
-
ThunderboltYes
-
Total Number of Expansion Slots4
-
Total Number of Onboard USB Ports9
-
Total Number of PCI Express Slots4
-
Total Number of USB Ports10
-
Total Processor Supported1
-
Width12"
-
Wireless LANYes
-
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax/be
