Kensington SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station

Product #: ETLZ1082510961
$280.62
Ships Free - This items ships free with your order
Delivered by Tue 2/10 Wed 2/11 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

Kensington SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station
for Notebook, Monitor - Charging Capability - Memory Card Reader - SD, microSD - 180 W - Thunderbolt 5 - 3 Displays Supported - 8K @ 60Hz, 4K @ 144Hz, Full HD - 7680 x 4320, 3840 x 2160, 1920 x 1080 - 3 x USB Ports - 3 x USB Type-A Ports - USB Type-A - 1 x RJ-45 Ports - Network (RJ-45) - Platinum - Thunderbolt - Wired - 2.5 Gigabit Ethernet - Windows 11, macOS Sonoma 14.5 - 140W - Desktop
Professionals often struggle to unlock the full potential of their high performance laptops. For those wanting to connect multiple high-resolution displays, transfer data at high speeds, and expand connectivity without relying on adapters, the SD5000T5 Thunderbolt™ 5 Triple Video Docking Station is the ultimate powerhouse. Providing a powerful single-cable solution that helps you be more productive, it supports multiple 4K monitors for expanded visual productivity, turbocharged speeds for working with large files, more ports for connecting accessories without using adapters, and amplified charging for meeting the demands of high-power workstations.
Boost productivity with speeds up to 80Gbps, with Bandwidth Boost providing up to 120Gbps for video-intensive usage.
Supporting up to three 4K monitors at 144Hz or two 8K monitors at 60Hz, MacBook models with M4/M5 Base, or M1/M2/M3/M4 Pro and Max, support up to two 6K monitors at 60Hz.
Delivers up to 140W Power Delivery to meet the demands of high-power workstations.
Productive 11-in-1 design provides increased efficiency and seamless connectivity to various setups.
Built-in SD and Micro SD card readers provide ultra-fast file transfer options.
Plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4, and USB-C devices running Windows 11 (23H2 or later) or macOS (14.5 or later).
Zero-Footprint Mounting option to support a tidier workspace.
Offers security cable lock slots to support device protection.
Includes free Kensington DockWorks™ software to ensure the best connection, performance, and security from your Kensington dock.
3-Year limited warranty.
Contains 100% post-consumer recycled (PCR) aluminum*- and delivered in Forest Stewardship Council (FSC) certified packaging. * The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.
For MacBook, the number of displays that can be connected through the dock is up to two external displays. For M4 Max chipsets, you can maximize the CPU's display capabilities by connecting additional monitors directly to the MacBook, separate from the dock connection.
The SD5000T5 dock supports up to three video streams via a single upstream connection; however, the actual number of displays supported depends on the OEM laptop configuration. Contact your laptop manufacturer to confirm the Thunderbolt™ 5 port's display capabilities.
*This dock supports the 2.5 Gigabit Ethernet standard which provides a maximum data rate of 2.5 Gbps. Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches, and the hardware and firmware performance of the host computer.
  • Boost Your Productivity with Thunderbolt™ 5: The SD5000T5 offers lightning-fast data transfers, achieving speeds up to 80Gbps and Bandwidth Boost providing up to 120Gbps for video-intensive usage.

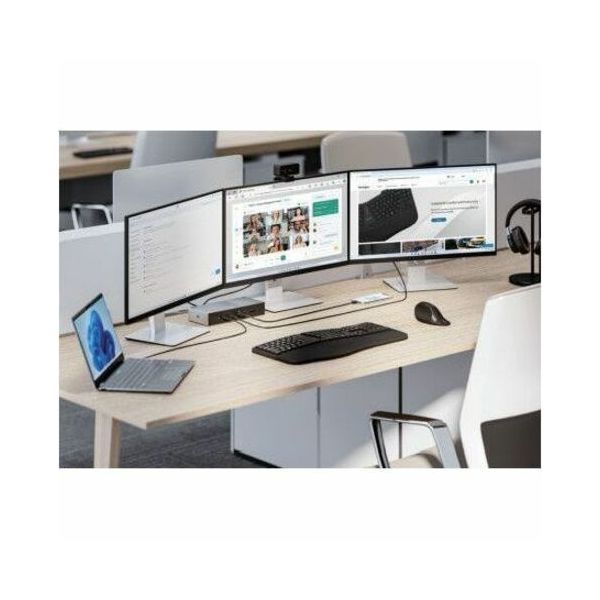

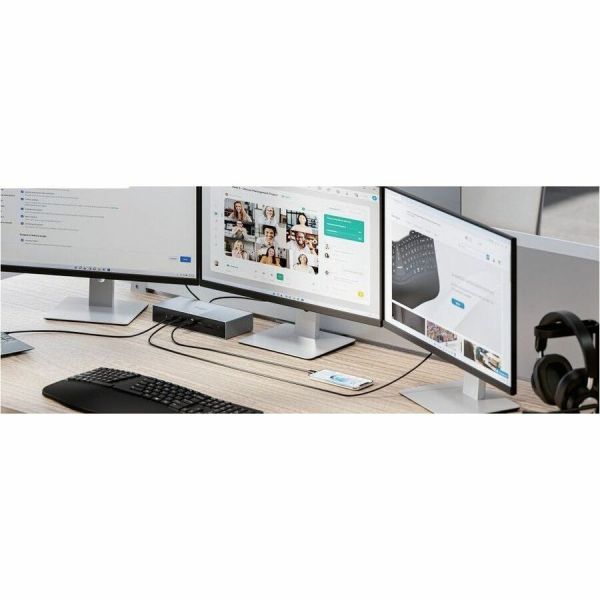

  • Triple 4K or Dual 8K Support: Supporting up to three 4K monitors at 144Hz or two 8K monitors at 60Hz, MacBook models with M4/M5 Base, or M1/M2/M3/M4 Pro and Max, support up to two 6K monitors at 60Hz. The SD5000T5 ensures uncompromised visual quality and smooth multitasking for a high-performance workspace.
  • Up to 140W Power Delivery: Perfect for demanding workstations, the single-cable Thunderbolt™ 5 solution ensures seamless power and connectivity with up to 140W Power Delivery.

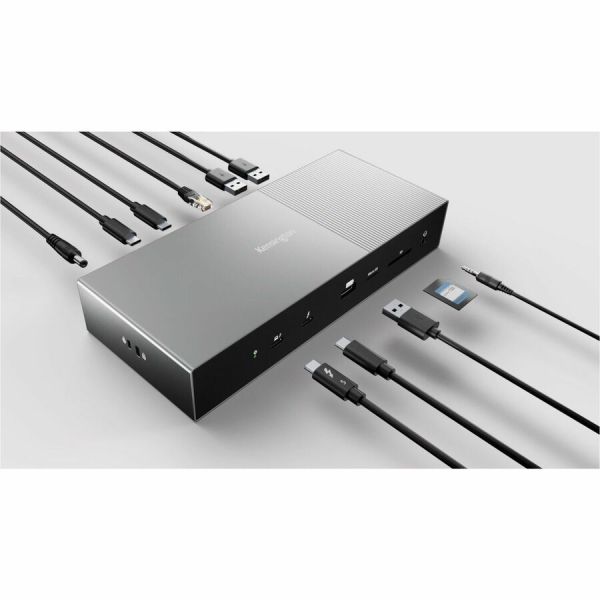

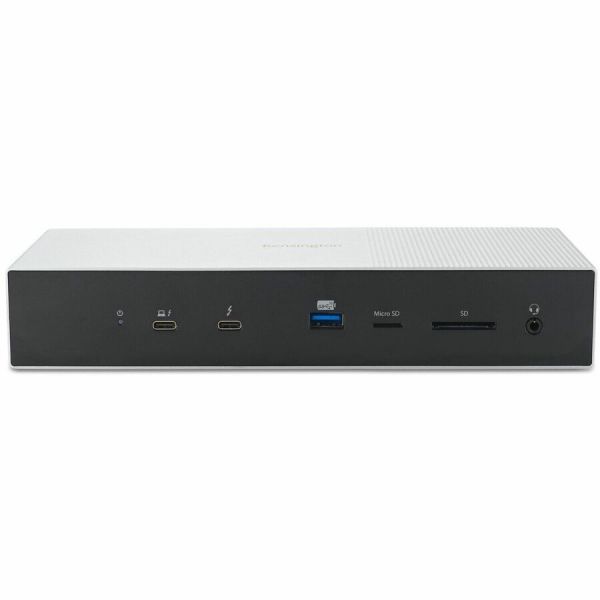

  • Productive 11-in-1 Design: 3 x Thunderbolt™ 5 downstream ports, 1 x Thunderbolt™ 5 host, 3 x USB-A 3.2 Gen2 10Gbps ports, a combo audio jack, dual SD/Micro Card readers, and 2.5Gbps Ethernet for seamless productivity.

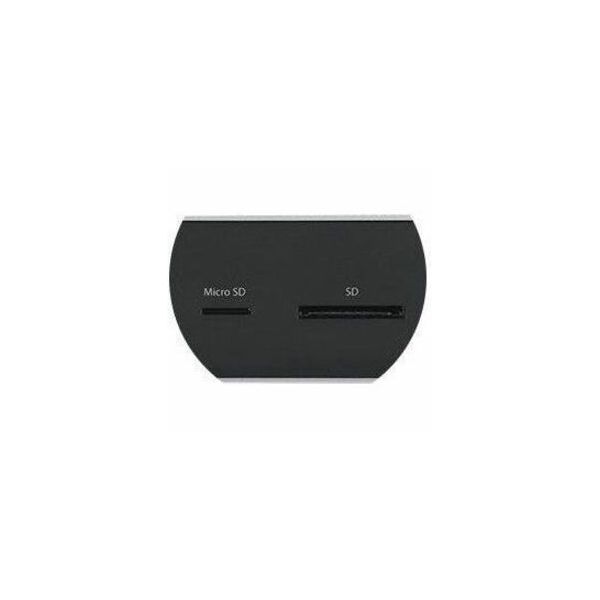

  • Built-in SD and Micro SD Card Readers: Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5000T5 transfers files at ultra-fast speeds via built in UHS-II SD and Micro SD card readers.
  • Universal Compatibility: Offers a quick and powerful plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4, and USB-C devices running Windows 11 (23H2 or later) or macOS (14.5 or later).

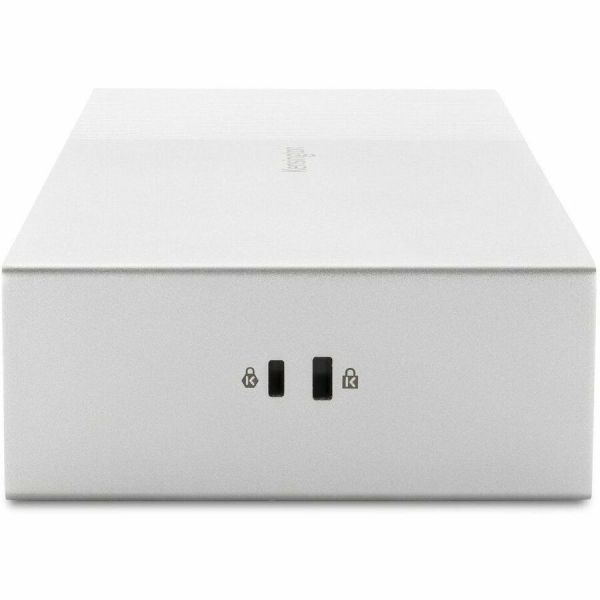

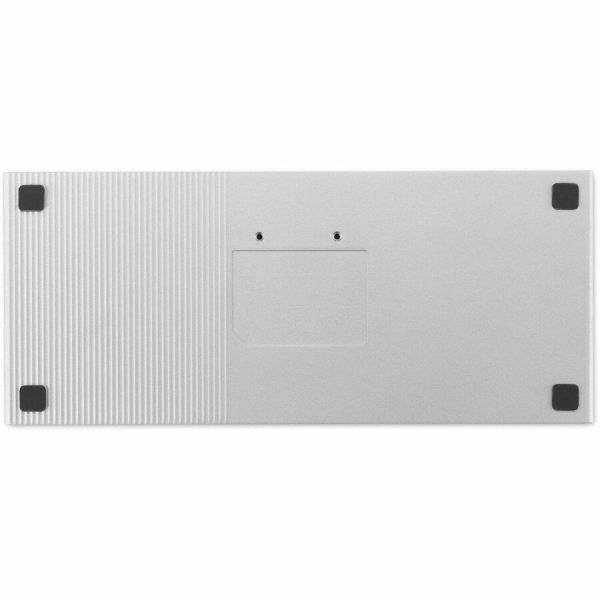

  • Zero-Footprint Mounting Option and Security Cable Lock Slots: Maximize desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock (K65020WW or K65021WW), sold separately.
  • Free Kensington DockWorks™ Software and 3-Year Limited Warranty: Free DockWorks™ software delivers the best connection, performance, and security from your Kensington dock. Enjoy peace of mind knowing your covered by Kensington with a professional warranty.
  • Recycled Materials: Contains 100% post-consumer recycled (PCR) aluminum- and delivered in Forest Stewardship Council (FSC) certified packaging. The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.
  • Wired connectivity technology is highly feasible, offers maximum usability
  • Charging capability provides a safer and more convenient charging experience
  • Thunderbolt 5 host interface Offers a more refined structure and safer to use connectivity
  • Docking Station provides a convenient and easy charging solution for your notebook with maximum usability
  • 15 GB/s maximum data transfer rate for convenient, quicker exchange of data and information
  • Plug & Play feature for maximum usage efficiency and convenience
  • Desktop form factor for your docking station takes up far less physical space, thus providing maximum space efficiency
  • Lets you conveniently connect to the 2.5 gigabit ethernet Ethernet technology to offer maximum productivity
  • Power Supply power source type for your docking station provides maximum energy feasibility and added surveillance productivity
  • 3 USB ports offers a more refined structure and safer to use connectivity
Kensington logo
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information
    Docking Station Family: The Innovator DockWorks: Yes (for Windows only) Best For: A Thunderbolt™ 5 laptop running Windows 11 (23H2 or later) with USB-C PD 3.1 EPR support for up to 140W (28V/5A) charging Card Reader: SD Cards and Micro SD card slots (UHS-II, SD4.0) Features: EQ Certified For: Engineered for Intel Evo™ Laptop Accessory Program, Works With Chromebook Audio: 1 x 3.5mm Combo Microphone & Headphone Port (front) Maximum Resolution Supported: Triple 4K @ 144Hz, Dual 8K @ 60Hz, Single 8K @ 60Hz, or 1080p @ 540Hz Mounting Option: Maximize desktop space and reduce desktop cable clutter via our optional Docking Station Mounting Bracket (K34050WW) USB-C Power Delivery: Supports USB-C PD 3.1 (Up to 140W of laptop charging)
  • Brand Name
    Kensington
  • Charging Capability
    Yes
  • Compatibility
    A Thunderbolt™ 5 laptop running Windows 11 (23H2 or later) with USB-C PD 3.1 EPR support for up to 140W (28V/5A) charging
  • Connectivity Technology
    Wired
  • Country of Origin
    Taiwan
  • Depth
    1.57"
  • Device Supported
    Notebook Monitor
  • Environmental Certification
    FSC ErP
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    2.5 Gigabit Ethernet
  • Features
    Security Lock Plug & Play LED Power Indicator
  • Form Factor
    Desktop
  • Headphone/Microphone Combo Port
    Yes
  • Height
    8.89"
  • Host Interface
    Thunderbolt 5
  • Input Voltage Detail
    20 V DC
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    K35201NA
  • Maximum Data Transfer Rate
    15 GB/s
  • Memory Card Reader
    Yes
  • Memory Card Supported
    SD microSD
  • Network (RJ-45)
    Yes
  • Number of Displays Supported
    3
  • Number of RJ-45 Ports
    1
  • Operating System Supported
    Windows 11 macOS Sonoma 14.5
  • Package Contents

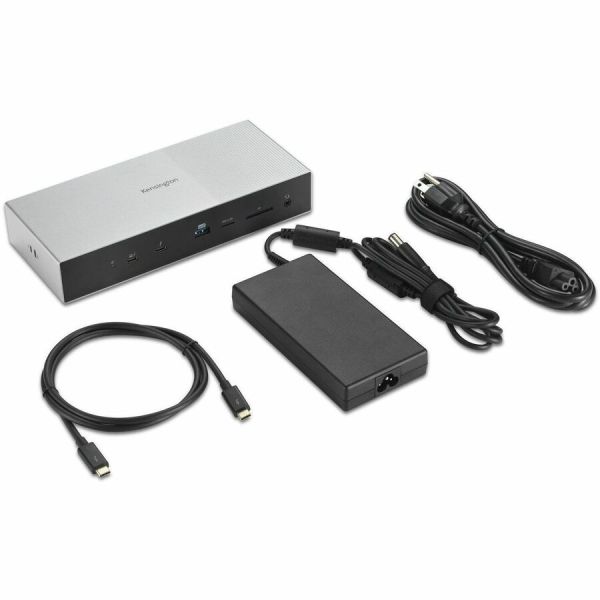

    SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station 1 x 1M (3.28ft) Thunderbolt™ 5 Certified Passive cable 1 x 180W Power Supply Unit 1 x Power Cord (varied by different SKU) 1 x Quick Installation Guide 1 x Compliance Sheet 1 x Warranty Card 1 x Welcome Card
  • Package Type
    Retail
  • Platform Supported
    PC
  • Post-consumer-waste%
    100%
  • Product Line
    The Innovator
  • Product Model
    SD5000T5
  • Product Name
    SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station
  • Product Type
    Docking Station
  • Security Slot Type
    Kensington Security Slot
  • System Requirements
    Thunderbolt™ 5, Thunderbolt™ 4, USB4, and USB-C devices running Windows 11 (23H2 or later) or macOS (14.5 or later)
  • Thunderbolt
    Yes
  • Total Number of USB Ports
    3
  • Width
    3.82"
