SIIG USB-C Quad Hybrid 4K Video Docking Station with 100W PD

Product #: ETLZ1072983115
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

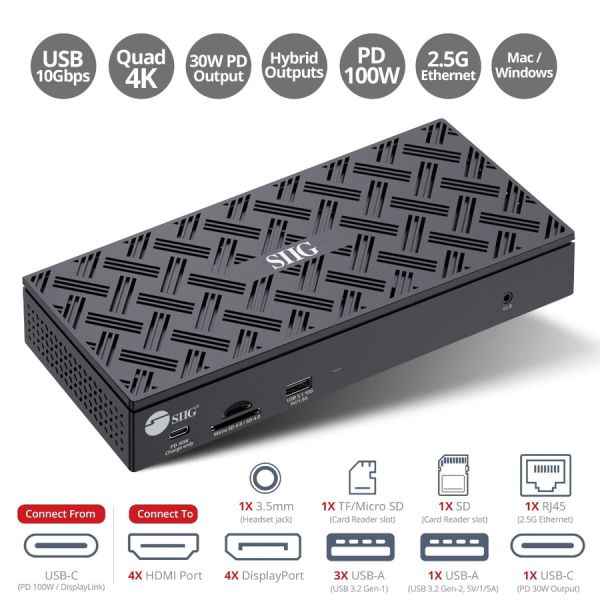

SIIG USB-C Quad Hybrid 4K Video Docking Station with 100W PD
USB-C Quad Hybrid Docking station- Quad displays - 4x DisplayPort and/or 4x HDMI monitors at 4K60Hz - 100W Power Delivery for USB Type-C / Thunderbolt 3 laptop - 2.5G Ethernet - USB-A Hub - 1x 10Gbps / 3x 5Gbps / 1x USB-C PD 30W- SD/Micro SD 4.0 slot- 3.5mm Headset Audio/Mic -Power button- Security lock- DisplayLink solution- 180W power adapter- Power LED Indicator- 2 years warranty - Compliant with Windows/Mac M1/M2 /Chrome sys
  • Adds up to four 4K displays - Supports four displays via DisplayPort or HDMI (DisplayLink) at 4096 x 2160 / 3840 x 2160 @ 60Hz and for high-resolution applications, also supports a 5K display (5120 x 2880 resolution) at 60Hz, by connecting two DisplayPort ports (DisplayLink) to a single 5K display
  • Fully Compatibility- DisplayLink certified for universal compatibility where mixed laptop brands are deployed & works w/ devices from Dell, HP, Lenovo & Apple; supports Windows, mac OS; Port replicator works w/TB3/TB4, USB4 & USB-C/A 5Gbps host devices. USB-C to USB-C cable with USB-A converter adapter included
  • Hybrid Video Outputs - Supports four monitors via 4 DP & 4 HDMI for Mix output and support Ultra HD resolution up to 4K60Hz for each output
  • 100 Watt PD Charging - Includes high quality USB-C 20V/5A cable for connection to laptop, supports up to 100W Power Delivery charging for laptop. The included 180W power adapter not only provides up to 100W Power Delivery charging to ensure enough power for laptop and power for USB peripherals, but also provide one USB-C individual 30W PD charging port for iPad / Mobile phone devices
  • Ultra-speed Data Transfer - Provides one USB 3.2 Gen-2 Type-A 10Gbps with 5V/1.5A Fast Charging, three USB-A 5Gbps to enhance your laptop's performance capabilities
  • Reliable Wired Network Connectivity - Embedded 2.5 Gigabit Ethernet port giving you to high bandwidth networking
  • Integrated SD v4.0 Card Reader with SD/Micro SD slot support UHS-II theoretical bus speed up to 312Mbps
  • Audio Capability - Includes one 3.5 mm headset jack for stereo audio output and microphone capabilities, HDMI / DP up to 5.1 Channel surround sound
  • Added Security - Supports security slot, keep your docking station safety
  • Power LED - Built-in power On/Off button with LED provides easy recognition of power status
  • Wired connectivity technology provides a high-powered and dependable connection
  • USB Type C host interface allows powerful and efficient transfer of data with maximum productivity
  • Desktop PC device supported according to your requirements with maximum productivity
  • 2.5 Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    SIIG
  • Compatibility
    Compatible Notebooks: HP Dell Lenovo Apple
  • Connectivity Technology
    Wired
  • Country of Origin
    China
  • Depth
    3.34"
  • Device Supported
    Desktop PC Notebook Monitor TV
  • DisplayPort
    Yes
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    2.5 Gigabit Ethernet
  • HDMI
    Yes
  • Height
    1.10"
  • Host Interface
    USB Type C
  • Kensington Security Slot
    Yes
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    JU-DK0Q11-S1
  • Maximum Power Supply Wattage
    100 W
  • Memory Card Reader
    Yes
  • Memory Card Supported
    microSD SD
  • Network (RJ-45)
    Yes
  • Number of DisplayPorts
    4
  • Number of Displays Supported
    4
  • Number of HDMI Ports
    4
  • Number of USB Type-A Ports
    4
  • Number of USB Type-C Ports
    2
  • Operating System Supported
    macOS Windows
  • Package Contents
    USB-C Quad Hybrid 4K Video Docking Station with PD Power Adapter 20V/9A USB-C to C Cable with USB-A Converter Adapter User Manual High Quality USB-C 20V/5A Cable
  • Product Color
    Black
  • Product Name
    USB-C Quad Hybrid 4K Video Docking Station with PD
  • Product Type
    Docking Station
  • Screen Mode Supported
    4K 5K
  • Supported Resolutions
    3840 x 2160 4096 x 2160 5120 x 2880
  • USB Type-A
    Yes
  • Width
    9.05"
