SIIG Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & 96W PD
Product #:
SYNX6047148
+4View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

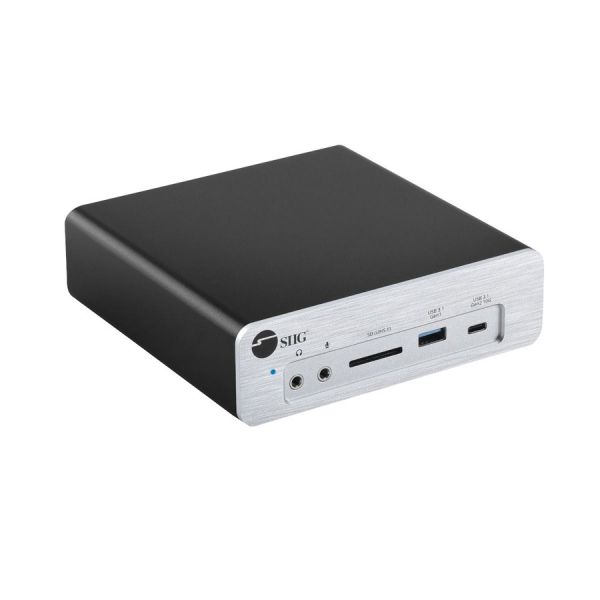

SIIG Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & 96W PD
Single 8K 30Hz / 4K 144Hz or Dual 4K60Hz Resolution - Thunderbolt Daisy Chain Supported SIIG Thunderbolt 3 Docking - Dual 4K60Hz Displays / Single 8K30Hz/4K144Hz via TBT3 or DP 1.4 - TB3 Laptop Docking Station with DisplayPort - Dual M.2 2280 NVMe SSD Enclosure - 87W/96W Power Delivery - SD UHS-II 4.0 / 2x 10Gbps USB-C & A / 2x USB-A 5Gbps Hub - fast charging - 3.5mm Audio & Mic Jack - 2 years warranty - TAA complia
Advanced docking station transforms a single Thunderbolt 3 port into one Thunderbolt 3 port, one DisplayPort 1.4 port, two USB 3.1 Gen2 Type A/C ports, two USB 3.1 Gen1 Type-A with BC 1.2 ports, one Gigabit Ethernet port, a SD memory card reader, and a stereo audio/microphone connectivity with PD charging up to 87W. Adds 2 storage drives via dual M Key NVME SSD capabilities
Features
Advanced Docking Station - transforms a single Thunderbolt 3 into one Thunderbolt 3 port, one DisplayPort 1.4 port, two USB 3.1 10Gbps Type A/C ports, two USB 3.1 Gen1 Type-A with BC 1.2 port, one Gigabit Ethernet port, SD (UHS-II) memory card reader and stereo audio/Microphone connectivity with PD charging up to 87 watts
Experience High Resolution Video - Allow you to connect two 4K@60Hz Ultra HD displays simultaneously through Thunderbolt 3 & DP port. A single 8K@30Hz display is supported through the source Thunderbolt 3 and DP 1.4 port
Dual PCIe Gen 3 NVMe M.2 - Holds two M Key 2280 form factor SSDs, adds 2 drives to your computer, increase storage capacity and enhance data transfer speed up to 1500Mbps rate for each installed SSD. Compatible with M Key PCIe NVMe/AHCI M.2 SSDs only (SSD not included)
USB 3.1 - Provides 2 USB-A 3.1 Gen1 with BC 1.2 (5V/2.4A) ports up to 5Gbps, one USB-A 3.1 Gen2 BC 1.2 (5V/2.4) ports up to 10Gbps, one USB-C 3.1 Gen2 port (5V/3A) up to 10Gbps to enhance your computer's performance capabilities
SD Memory Card Reader - SD (UHS-II) compatible, supports data transfer up to 270Mbps, and maximum capacity of 2TB
Wired Gigabit Ethernet - Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
Audio Jack - Supports two 3.5mm audio jack for stereo audio and microphone connection
High Power - Included 150W power adapter provides sufficient power for your connected peripherals, plus PD charging up to 87W to charge/power your laptop
Certifications: Intel Thunderbolt 3, RoHs, TAA, FCC, CE
More from the Manufacturer
Features
Advanced Docking Station - transforms a single Thunderbolt 3 into one Thunderbolt 3 port, one DisplayPort 1.4 port, two USB 3.1 10Gbps Type A/C ports, two USB 3.1 Gen1 Type-A with BC 1.2 port, one Gigabit Ethernet port, SD (UHS-II) memory card reader and stereo audio/Microphone connectivity with PD charging up to 87 watts
Experience High Resolution Video - Allow you to connect two 4K@60Hz Ultra HD displays simultaneously through Thunderbolt 3 & DP port. A single 8K@30Hz display is supported through the source Thunderbolt 3 and DP 1.4 port
Dual PCIe Gen 3 NVMe M.2 - Holds two M Key 2280 form factor SSDs, adds 2 drives to your computer, increase storage capacity and enhance data transfer speed up to 1500Mbps rate for each installed SSD. Compatible with M Key PCIe NVMe/AHCI M.2 SSDs only (SSD not included)
USB 3.1 - Provides 2 USB-A 3.1 Gen1 with BC 1.2 (5V/2.4A) ports up to 5Gbps, one USB-A 3.1 Gen2 BC 1.2 (5V/2.4) ports up to 10Gbps, one USB-C 3.1 Gen2 port (5V/3A) up to 10Gbps to enhance your computer's performance capabilities
SD Memory Card Reader - SD (UHS-II) compatible, supports data transfer up to 270Mbps, and maximum capacity of 2TB
Wired Gigabit Ethernet - Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
Audio Jack - Supports two 3.5mm audio jack for stereo audio and microphone connection
High Power - Included 150W power adapter provides sufficient power for your connected peripherals, plus PD charging up to 87W to charge/power your laptop
Certifications: Intel Thunderbolt 3, RoHs, TAA, FCC, CE
More from the Manufacturer
- Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
- Thunderbolt 3 host interface allows quick transmission of data at a higher rate for your convenience
- Notebook device supported for your convenience and better usability
Product Specifications
-
Audio Line OutYes
-
Brand NameSIIG
-
Connectivity TechnologyWired
-
Country of OriginTaiwan
-
Depth5.55"
-
Device SupportedNotebook Desktop PC
-
DisplayPortYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Height1.67"
-
Host InterfaceThunderbolt 3
-
Limited Warranty2 Year
-
Manufacturer Part NumberJU-DK0K11-S1
-
Maximum Power Supply Wattage87 W
-
MicrophoneYes
-
Network (RJ-45)Yes
-
Number of DisplayPort Outputs1
-
Number of USB 3.1 Gen 1 Type-A Ports2
-
Package ContentsPower Adapter 20V/7.5A Thunderbolt 3 Cable (50cm) User Manual Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & 87W Power Delivery
-
Product NameThunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & 87W Power Delivery
-
Product TypeDocking Station
-
ThunderboltYes
-
Width5.86"
