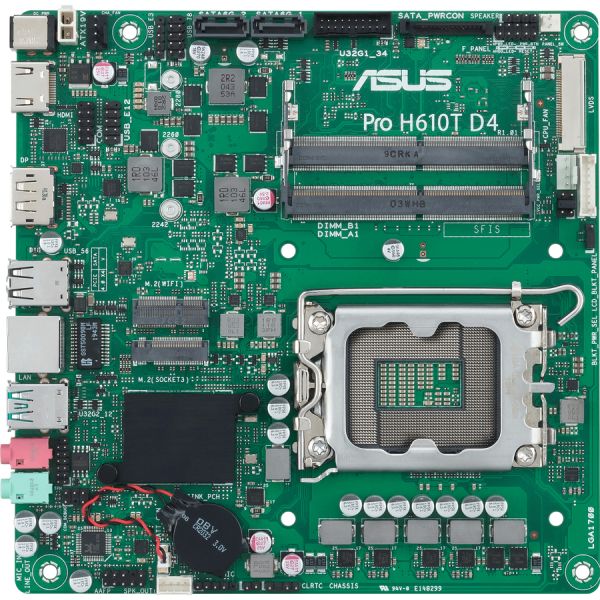

Asus H610T D4-CSM Desktop Motherboard - Intel H610 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Mini ITX

Pentium Gold, Celeron, Core Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 2 x SATA Interfaces
Product Number: ETLZ1073099735
  • Pentium Gold processors supported for enhanced, dependable system performance with maximum usability
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
  • DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
  • Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Asus H610T D4-CSM Desktop Motherboard - Intel H610 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Mini ITX - Thin mini-ITX H610 business motherboard with enhanced security, reliability, manageability and efficiency.
Intel LGA 1700 socket: Ready for 12th Gen Intel processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes PRO

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

  • Pentium Gold processors supported for enhanced, dependable system performance with maximum usability
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
  • DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
  • Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
  • With 2 USB 2.0 ports, transfer several documents without error
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Audio Channels
    7.1
  • Brand Name
    Asus
  • Chipset Manufacturer
    Intel
  • Chipset Model
    H610
  • Controller Type
    Serial ATA/600
  • Depth
    6.7"
  • DisplayPort
    Yes
  • Environmentally Friendly
    Yes
  • Form Factor
    Mini ITX
  • Gigabit Ethernet
    Yes
  • HDMI
    Yes
  • Intel Optane Memory Ready
    Yes
  • Intel RST
    Yes
  • Manufacturer Part Number
    PRO H610T D4-CSM
  • Maximum Memory Supported
    64 GB
  • Memory Form Factor
    SoDIMM
  • Memory Technology
    DDR4 SDRAM
  • Number of Memory Slots
    2
  • Number of Network (RJ-45) Ports
    1
  • Number of Onboard USB 2.0 Ports
    2
  • Number of Onboard USB 3.2 Ports
    5
  • Number of SATA Interfaces
    2
  • Number of USB 2.0 Ports
    2
  • Number of USB 3.2 Ports
    2
  • Onboard Video
    CPU Dependent Video
  • Processor Generation Supported
    12th Gen
  • Processor Socket
    Socket LGA-1700
  • Processor Supported
    Celeron Core Pentium Gold
  • Product Model
    H610T D4-CSM
  • Product Name
    PRO H610T D4-CSM Desktop Motherboard
  • Product Series
    PRO
  • Product Type
    Desktop Motherboard
  • Total Number of Onboard USB Ports
    7
  • Total Number of USB Ports
    4
  • Total Processor Supported
    1
  • Width
    6.7"
