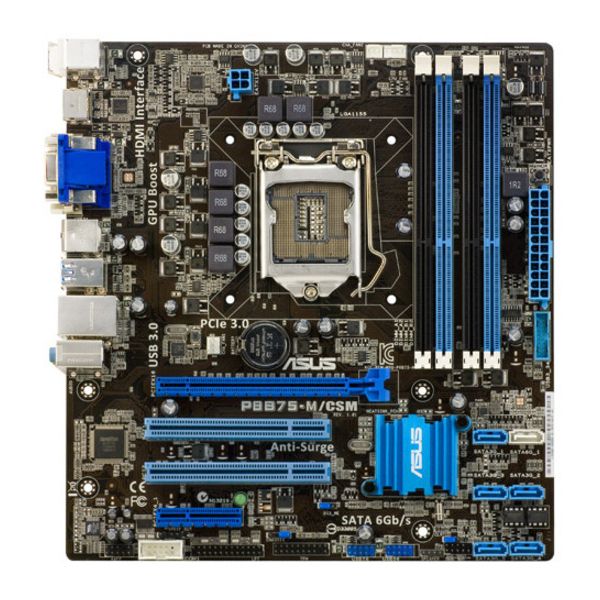

Asus P8B75-M/CSM Desktop Motherboard - Intel B75 Express Chipset - Socket H2 LGA-1155

Product #: SYNX3207766
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Asus P8B75-M/CSM Desktop Motherboard - Intel B75 Express Chipset - Socket H2 LGA-1155
32 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800 - 4 x Memory Slots - Gigabit Ethernet - HDMI - 6 x SATA Interfaces
This motherboard supports the Intel 3rd/2nd generation processors in the LGA1155 package , with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel 3rd/2nd generation processors are among the most powerful and energy efficient CPUs in the world.
Related Articles
Need more information? Ask a Question

Product Specifications

  • 64-bit Processing
    Yes
  • Audio Channels
    7.1
  • Audio Line In
    Yes
  • Audio Line Out
    Yes
  • Brand Name
    Asus
  • Buttons & Keys
    MemOK
  • Certifications & Standards
    FCC CE Erp Ready
  • Chipset Manufacturer
    Intel
  • Chipset Model
    B75 Express
  • Controller Type
    Serial ATA/300 Serial ATA/600
  • DVI
    Yes
  • Depth
    8.9"
  • Environmental Certification
    RoHS WEEE
  • Environmentally Friendly
    Yes
  • Form Factor
    Micro ATX
  • Gigabit Ethernet
    Yes
  • HDMI
    Yes
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    P8B75-M/CSM
  • Maximum Memory Supported
    32 GB
  • Memory Form Factor
    UDIMM
  • Memory Standard
    DDR3-1600/PC3-12800
  • Memory Technology
    DDR3 SDRAM
  • Microphone Port
    Yes
  • Network (RJ-45)
    Yes
  • Number of DVI Outputs
    1
  • Number of HDMI Outputs
    1
  • Number of Memory Slots
    4
  • Number of Network (RJ-45) Ports
    1
  • Number of Onboard USB 2.0 Ports
    4
  • Number of Onboard USB 3.0 Ports
    2
  • Number of PCI Express x4 Slots
    1
  • Number of PCI Express x16 Slots
    1
  • Number of PCI Slots
    2
  • Number of PS/2 Ports
    2
  • Number of SATA Interfaces
    6
  • Number of Total Expansion Slots
    4
  • Number of USB 2.0 Ports
    4
  • Number of USB 3.0 Ports
    2
  • Onboard Audio Header
    Yes
  • Onboard LEDs Header
    Yes
  • Onboard Parallel Header
    Yes
  • Onboard S/PDIF Header
    Yes
  • Onboard Serial Header
    Yes
  • Onboard Video
    CPU Dependent Video
  • PCI Express Standard
    PCI Express 2.0 PCI Express 3.0
  • PS/2 Port
    Yes
  • Package Contents
    P8B75-M/CSM Desktop Motherboard User's Manual I/O Shield 1 x SATA 3Gb/s Cable(s) 1 x SATA 6Gb/s Cable(s)
  • Power Supply Supported
    EPS12V
  • Processor Socket
    Socket H2 LGA-1155
  • Processor Supported
    Core i3 Core i5 Core i7
  • Processor Technology
    Turbo Boost Technology 2.0
  • Product Model
    P8B75-M/CSM
  • Product Name
    P8B75-M/CSM Desktop Motherboard
  • Product Type
    Desktop Motherboard
  • Sound Controller Manufacturer
    VIA
  • Sound Controller Model
    VT1708S
  • Total Number of Onboard USB Ports
    6
  • Total Number of PCI Express Slots
    2
  • Total Number of USB Ports
    6
  • Total Processor Supported
    1
  • VGA
    Yes
  • Width
    9.6"
