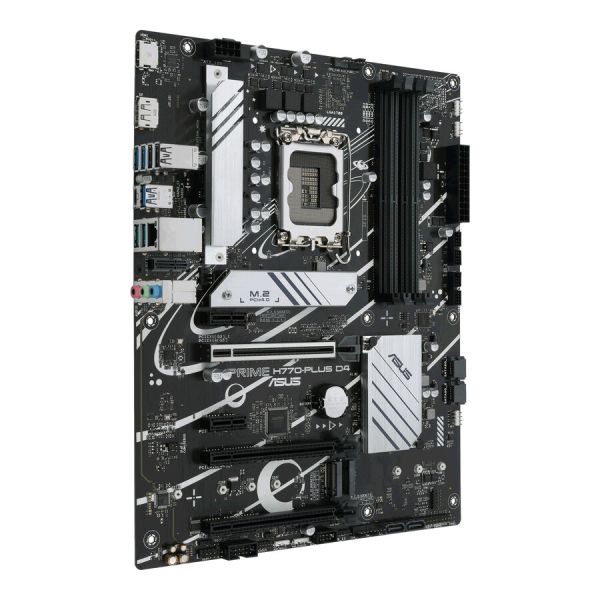

Asus Prime H770-PLUS D4 Desktop Motherboard - Intel H770 Chipset - Socket LGA-1700 - ATX
Product #:
ETLZ1076354647
+1View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Asus Prime H770-PLUS D4 Desktop Motherboard - Intel H770 Chipset - Socket LGA-1700 - ATX
Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H770-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME H770-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME H770-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time.
- Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors
- Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C and Thunderbolt (USB4) header support
- Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
- Compatible Core processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
Product Specifications
-
2.5Gigabit EthernetYes
-
Audio Channels7.1
-
Brand NameAsus
-
Chipset ManufacturerIntel
-
Chipset ModelH770
-
Controller TypeSerial ATA/600
-
Depth9.6"
-
DisplayPortYes
-
Form FactorATX
-
Gigabit EthernetYes
-
HDMIYes
-
HDMI Version2.1
-
Limited Warranty3 Year
-
Manufacturer Part NumberPRIMEH770-PLUSD4
-
Maximum Memory Supported128 GB
-
Memory Form FactorDIMM UDIMM
-
Memory TechnologyDDR4 SDRAM
-
Number of Memory Slots4
-
Number of Network (RJ-45) Ports1
-
Number of Onboard USB 2.0 Ports3
-
Number of PCI Express x1 Slots2
-
Number of PCI Express x16 Slots3
-
Number of SATA Interfaces4
-
Number of Thunderbolt 4 Ports1
-
Number of Total Expansion Slots5
-
Number of USB 3.2 Gen 1 Type-A Ports3
-
Number of USB 3.2 Gen 2 Type-A Ports2
-
Number of USB 3.2 Gen 2 Type-C Ports1
-
Onboard VideoCPU Dependent Video
-
PCI Express StandardPCI Express 3.0 PCI Express 4.0 PCI Express 5.0
-
Package ContentsPRIME H770-PLUS D4 Desktop Motherboard 2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw Packages for M.2 SSD 1 x User guide
-
Processor Generation Supported12th Gen 13th Gen
-
Processor SocketSocket LGA-1700
-
Processor SupportedCeleron Core Pentium Gold
-
Product LinePrime
-
Product ModelH770-PLUS D4
-
Product NamePRIME H770-PLUS D4 Desktop Motherboard
-
Product TypeDesktop Motherboard
-
RAID Levels0 1 10 5
-
RAID SupportedYes
-
S/PDIFYes
-
ThunderboltYes
-
Total Number of Onboard USB Ports7
-
Total Number of PCI Express Slots5
-
Total Number of USB Ports8
-
Total Processor Supported1
-
Width12"
