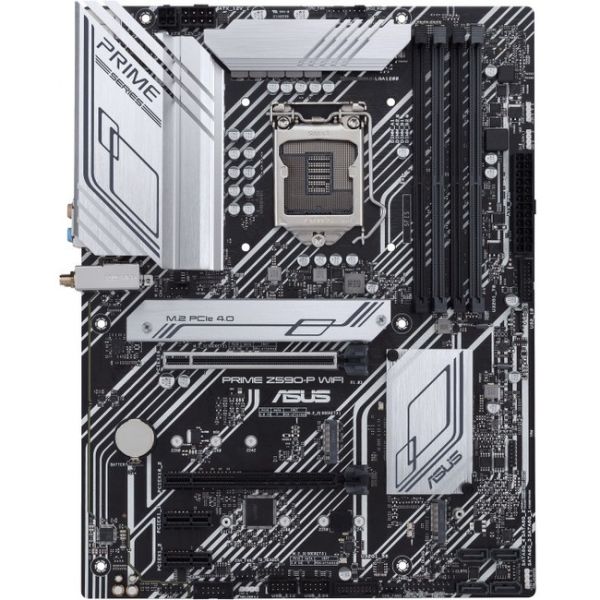

Asus Prime Z590-P WIFI Desktop Motherboard - Intel Z590 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX
Product #:
ETLZ1068142059
+15View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Asus Prime Z590-P WIFI Desktop Motherboard - Intel Z590 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX
Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
Intel Z590 (LGA 1200) ATX motherboard with PCIe 4.0, three M.2 slots, 11 DrMOS power stages, HDMI, DisplayPort, SATA 6 Gbps, Intel WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 support, and Aura Sync RGB lighting
Intel LGA 1200 socket: Ready for 11th and 10th gen Intel Core processors
Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Next-gen connectivity: Intel WiFi 6, PCIe 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support PRIME
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590-P WIFI provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Search Function
Quickly and easily find the option or setting you need.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Cool to the Core
Prime Z590 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot.
Build on a Solid Foundation
Prime Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of 11th Generation Intel Core processors. Prime Z590-P WIFI is geared to cater to the demands of these high-core count CPUs.
ProCool Connector
Proprietary connector augment the motherboard's link to the PSU with 8-pin connector that pass 12 volts of power directly to the processors. 8-pin connector features solid pins that can handle more current than hollow-pin connector.
Intel LGA 1200 socket: Ready for 11th and 10th gen Intel Core processors
Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Next-gen connectivity: Intel WiFi 6, PCIe 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support PRIME
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590-P WIFI provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Search Function
Quickly and easily find the option or setting you need.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Cool to the Core
Prime Z590 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot.
Build on a Solid Foundation
Prime Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of 11th Generation Intel Core processors. Prime Z590-P WIFI is geared to cater to the demands of these high-core count CPUs.
ProCool Connector
Proprietary connector augment the motherboard's link to the PSU with 8-pin connector that pass 12 volts of power directly to the processors. 8-pin connector features solid pins that can handle more current than hollow-pin connector.
- Pentium Gold processors supported for enhanced, dependable system performance with maximum usability
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
- 2 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
Product Specifications
-
2.5Gigabit EthernetYes
-
Audio Channels7.1
-
BluetoothYes
-
Brand NameAsus
-
Chipset ManufacturerIntel
-
Chipset ModelZ590
-
Controller TypeSerial ATA/600
-
Country of OriginChina
-
Depth9.2"
-
DisplayPortYes
-
Form FactorATX
-
HDMIYes
-
Intel Optane Memory ReadyYes
-
Limited Warranty3 Year
-
Manufacturer Part NumberPRIME Z590-P WIFI
-
Maximum Memory Supported128 GB
-
Memory Form FactorDIMM UDIMM
-
Memory TechnologyDDR4 SDRAM
-
Number of Memory Slots4
-
Number of Network (RJ-45) Ports1
-
Number of Onboard USB 2.0 Ports4
-
Number of Onboard USB 3.2 Ports5
-
Number of PCI Express x1 Slots2
-
Number of PCI Express x16 Slots2
-
Number of SATA Interfaces4
-
Number of Total Expansion Slots4
-
Number of USB 2.0 Ports2
-
Number of USB 3.2 Gen 1 Ports2
-
Number of USB 3.2 Gen 2 Type-A Ports1
-
Number of USB 3.2 Ports1
-
Onboard VideoCPU Dependent Video
-
Processor SocketSocket LGA-1200
-
Processor SupportedCeleron Core i3 Core i5 Core i7 Core i9 Pentium Gold
-
Product LinePrime
-
Product ModelZ590-P WIFI
-
Product NamePrime Z590-P WIFI Desktop Motherboard
-
Product TypeDesktop Motherboard
-
S/PDIFYes
-
Total Number of Onboard USB Ports9
-
Total Number of PCI Express Slots4
-
Total Number of USB Ports6
-
Total Processor Supported1
-
Width12"
-
Wireless LANYes
-
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax
