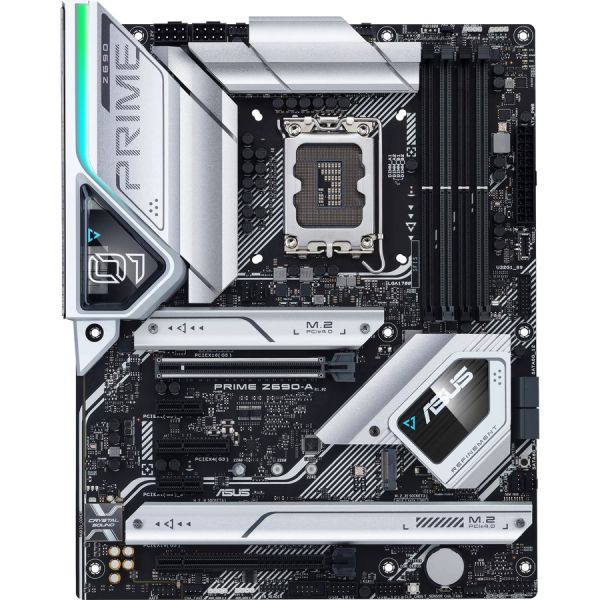

Asus Prime Z690-A Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX
Product #:
SYNX6434750
+22View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Asus Prime Z690-A Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX
Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - HDMI - DisplayPort - 4 x SATA Interfaces
Intel Z690 (LGA 1700) ATX motherboard with PCIe 5.0, four M.2 slots, 16+1 DrMOS power stages, DDR5, HDMI, DisplayPort, Intel 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 2 Type-C, Thunderbolt 4 support and Aura Sync RGB lighting
Intel LGA 1700 socket: Ready for 12th Gen Intel processors
Enhanced power solution: 16+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
AI Overclocking: Optimizes performance based on CPU and cooler loads to achieve results that are extremely close to manual tuning by experts
AI Cooling: Manages and controls all motherboard fans, automatically optimizing settings based on current system load and temperature
Two-Way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Comprehensive cooling: Large VRM heatsinks, M.2 heatsinks, M.2 backplate with Q-Latch, hybrid fan headers and Fan Xpert 4
Next-gen connectivity: DDR5 memory, PCIe 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support, 4 PCIe 4.0 M.2 PRIME
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-A provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
ASUS Prime Z690-A offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate and PCB cover.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
5-Way Opitmization
ASUS 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig.
Easy Optimization is an automated tuning utility that enhances overclocking and cooling profiles for your unique system configuration.
A stress test feature allows you to optimize and overclock for CPU- or memory-centric workloads.
CPU Performance Boost
The TurboV Processing Unit (TPU) is an intelligent system-tuning utility that automatically fine-tunes voltages, monitors system stats and adjusts overclocking parameters for optimal performance.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
App-Specific Optimization
Turbo App allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at the app level, so your system is set up exactly as needed.
Intel LGA 1700 socket: Ready for 12th Gen Intel processors
Enhanced power solution: 16+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
AI Overclocking: Optimizes performance based on CPU and cooler loads to achieve results that are extremely close to manual tuning by experts
AI Cooling: Manages and controls all motherboard fans, automatically optimizing settings based on current system load and temperature
Two-Way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Comprehensive cooling: Large VRM heatsinks, M.2 heatsinks, M.2 backplate with Q-Latch, hybrid fan headers and Fan Xpert 4
Next-gen connectivity: DDR5 memory, PCIe 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support, 4 PCIe 4.0 M.2 PRIME
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-A provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
ASUS Prime Z690-A offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate and PCB cover.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
5-Way Opitmization
ASUS 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig.
Easy Optimization is an automated tuning utility that enhances overclocking and cooling profiles for your unique system configuration.
A stress test feature allows you to optimize and overclock for CPU- or memory-centric workloads.
CPU Performance Boost
The TurboV Processing Unit (TPU) is an intelligent system-tuning utility that automatically fine-tunes voltages, monitors system stats and adjusts overclocking parameters for optimal performance.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
App-Specific Optimization
Turbo App allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at the app level, so your system is set up exactly as needed.
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Product Specifications
-
2.5Gigabit EthernetYes
-
Audio Channels7.1
-
Brand NameAsus
-
Chipset ManufacturerIntel
-
Chipset ModelZ690
-
Controller TypeSerial ATA/600
-
Depth9.6"
-
DisplayPortYes
-
Environmentally FriendlyYes
-
Form FactorATX
-
HDMIYes
-
Intel Optane Memory ReadyYes
-
Intel RSTYes
-
Limited Warranty3 Year
-
Manufacturer Part NumberPRIME Z690-A
-
Maximum Memory Supported128 GB
-
Memory Form FactorDIMM UDIMM
-
Memory TechnologyDDR5 SDRAM
-
Number of Memory Slots4
-
Number of Network (RJ-45) Ports1
-
Number of Onboard USB 2.0 Ports4
-
Number of Onboard USB 3.2 Ports3
-
Number of PCI Express x1 Slots2
-
Number of PCI Express x4 Slots1
-
Number of PCI Express x16 Slots2
-
Number of SATA Interfaces4
-
Number of Total Expansion Slots5
-
Number of USB 3.2 Gen 1 Ports4
-
Number of USB 3.2 Gen 2 Type-A Ports2
-
Number of USB 3.2 Ports2
-
Onboard VideoCPU Dependent Video
-
Package ContentsPrime Z690-A Desktop Motherboard 2 x SATA 6Gb/s cables 1 x M.2 Rubber Package(s) 1 x Q-connector 1 x M.2 Q-Latch package(s) 1 x Support DVD 1 x User Guide
-
Processor Generation Supported12th Gen
-
Processor SocketSocket LGA-1700
-
Processor SupportedCeleron Core i5 Core i7 Core i9 Pentium Gold
-
Product LinePrime
-
Product ModelZ690-A
-
Product NamePrime Z690-A Desktop Motherboard
-
Product TypeDesktop Motherboard
-
RAID Levels0 1 10 5
-
RAID SupportedYes
-
S/PDIFYes
-
Total Number of Onboard USB Ports7
-
Total Number of PCI Express Slots5
-
Total Number of USB Ports8
-
Total Processor Supported1
-
Width12"
