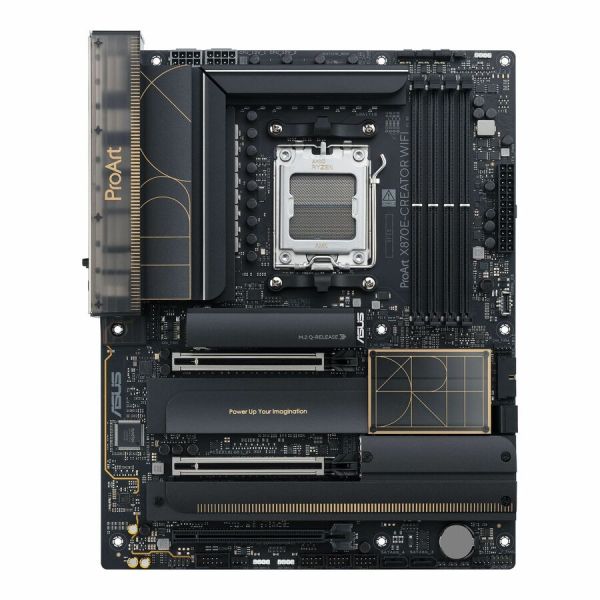

Asus ProArt X870E-CREATOR WIFI Gaming Desktop Motherboard - AMD X870E Chipset - Socket AM5 - ATX
+7View All
$553.11
Loading...
Product Description
Asus ProArt X870E-CREATOR WIFI Gaming Desktop Motherboard - AMD X870E Chipset - Socket AM5 - ATX
Ryzen 7, Ryzen 9 Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11be - HDMI - DisplayPort - 4 x SATA Interfaces
X870E-CREATOR WIFI
The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe5.0 and lightning-fast connectivity including dual USB4, 10G and 2.5G Ethernet, and WiFi 7.
This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
All You Need for Maximum Productivity | Dual USB4Connectivity
Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort In port on the rear I/O panel and direct the video output via the USB4 port.
Up to
40Gbps
Bi-directional bandwidth
DisplayPort 1.4
Supports one 8K or dual 4K displays
Daisy-Chaining
For up to five devices
Up to
15W
Charging
Ultrafast Networking 10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.
WiFi 7
The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels* on the 6GHz band and 4K QAM**. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
PCIe 5.0 Support
Fully embracing the latest standard, the ProArt X870E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
Four Onboard M.2 Slots
ProArt X870E-Creator WiFi features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.
PCIe 5.0 Expansion Slots
Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.
Quick-charging Your USB Devices
USB 20Gbps Type-C front-panel connector with Quick Charge 4+
This header boosts data transfers with speeds of up to 20 Gbps. It also features Quick Charge 4+, which can quickly charge your pen display, tablet or mobile phone at up to 30 watts.
The Core of Your Powerful Workstation | Robust Power Design
Designed to meet the needs of high-core-count CPUs, the ProArt X870E-Creator WiFi features 16(80A)+2(80A)+2 power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe5.0 and lightning-fast connectivity including dual USB4, 10G and 2.5G Ethernet, and WiFi 7.
This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
All You Need for Maximum Productivity | Dual USB4Connectivity
Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort In port on the rear I/O panel and direct the video output via the USB4 port.
Up to
40Gbps
Bi-directional bandwidth
DisplayPort 1.4
Supports one 8K or dual 4K displays
Daisy-Chaining
For up to five devices
Up to
15W
Charging
Ultrafast Networking 10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.
WiFi 7
The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels* on the 6GHz band and 4K QAM**. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
PCIe 5.0 Support
Fully embracing the latest standard, the ProArt X870E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
Four Onboard M.2 Slots
ProArt X870E-Creator WiFi features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.
PCIe 5.0 Expansion Slots
Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.
Quick-charging Your USB Devices
USB 20Gbps Type-C front-panel connector with Quick Charge 4+
This header boosts data transfers with speeds of up to 20 Gbps. It also features Quick Charge 4+, which can quickly charge your pen display, tablet or mobile phone at up to 30 watts.
The Core of Your Powerful Workstation | Robust Power Design
Designed to meet the needs of high-core-count CPUs, the ProArt X870E-Creator WiFi features 16(80A)+2(80A)+2 power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
- Ryzen 7 processors supported for faster, dependable performance and better access to data and information
- DDR5 SDRAM slot for convenient installation of memory
- Wireless LAN support lets you connect to the internet and have instant access to social media, music, movies and online games
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Loading...
Product Specifications
-
10Gigabit EthernetYes
-
AI-poweredYes
-
Audio Channels7.1
-
BluetoothYes
-
Bluetooth StandardBluetooth 5.4
-
Brand NameAsus
-
Chipset ManufacturerAMD
-
Chipset ModelX870E
-
Controller TypeSerial ATA/600
-
Depth9.6"
-
DisplayPortYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Error CheckingECC
-
Form FactorATX
-
Gigabit EthernetYes
-
HDMIYes
-
HDMI Version2.1
-
Limited Warranty3 Year
-
Manufacturer Part NumberProArtX870E-CREATORWIFI
-
Maximum Memory Supported192 GB
-
Memory Form FactorDIMM UDIMM
-
Memory Speed Supported8000 MHz
-
Memory TechnologyDDR5 SDRAM
-
Number of M.2 Interfaces4
-
Number of Memory Slots4
-
Number of Network (RJ-45) Ports2
-
Number of Onboard USB 2.0 Ports6
-
Number of PCI Express x16 Slots5
-
Number of SATA Interfaces4
-
Onboard VideoCPU Dependent Video
-
PCI Express StandardPCI Express 4.0 PCI Express 5.0
-
Package ContentsProArt X870E-CREATOR WIFI Gaming Desktop Motherboard 1 x DisplayPort cable 4 x SATA 6Gb/s cables 1 x Thermal pad for M.2 22110 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x M.2 Q-Latch package 1 x M.2 Q-Latch Q-Slide package for M.2 backplate 2 x Rubber Packages for M.2 1 x ProArt ruler 1 x Quick start guide 1 x ACC Express Activation Key Card
-
Processor SocketSocket AM5
-
Processor SupportedRyzen 7 Ryzen 9
-
Product LineProArt
-
Product ModelX870E-CREATOR WIFI
-
Product NameProArt X870E-CREATOR WIFI Gaming Desktop Motherboard
-
Product TypeGaming Desktop Motherboard
-
Total Number of Expansion Slots5
-
Total Number of Onboard USB Ports9
-
Total Number of PCI Express Slots5
-
Total Number of USB Ports11
-
Total Processor Supported1
-
VGAYes
-
Width12"
-
Wireless LANYes
-
Wireless LAN StandardIEEE 802.11be
