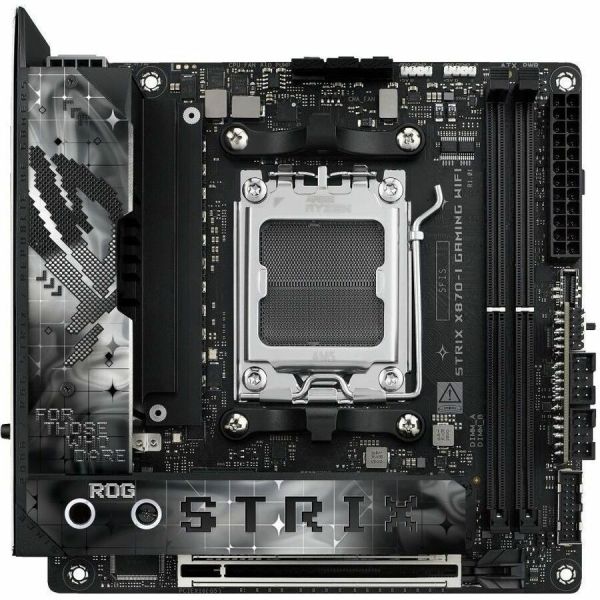

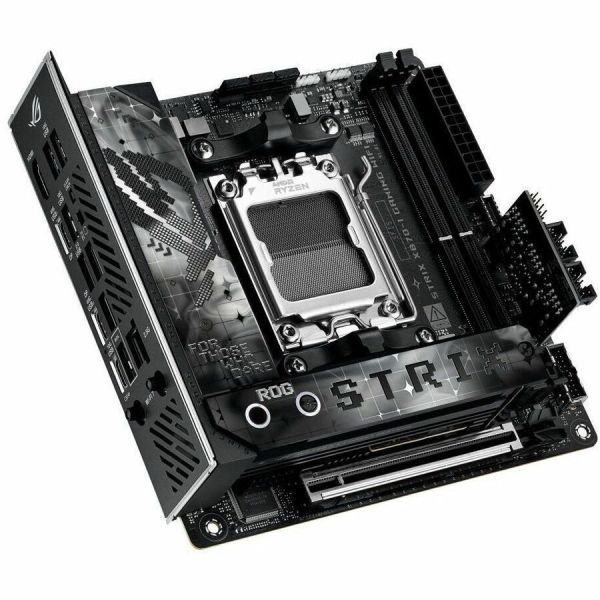

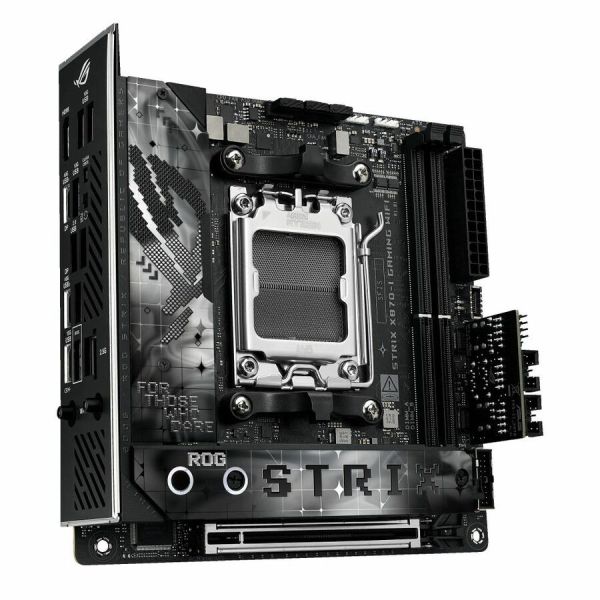

Asus ROG Strix X870-I GAMING WIFI Gaming Desktop Motherboard - AMD X870 Chipset - Socket AM5 - Mini ITX

(2 reviews)
|
Product #: ETLZ1082624780
$500.77
Ships Free - This items ships free with your order
Delivered by Mon 12/15 Mon 12/15 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

Asus ROG Strix X870-I GAMING WIFI Gaming Desktop Motherboard - AMD X870 Chipset - Socket AM5 - Mini ITX
Ryzen 7, Ryzen 9 Processor Supported - 96 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11be - HDMI - DisplayPort - 2 x SATA Interfaces
AMD X870 Mini-ITX motherboard with 10+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, two M.2 slots, PCIe5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, two USB4ports, ROG Strix Hive II, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.
Ready for Advanced AI PC:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket:Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors
Intelligent Control:ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance
ROG Strix Overclocking technologies:Dynamic OC Switcher, Core Flex, Asynchnorous Clock and PBO Enhancement
Robust Power Solution:10+2+1 power solution rated for 110A per stage with ProCool II power connectors

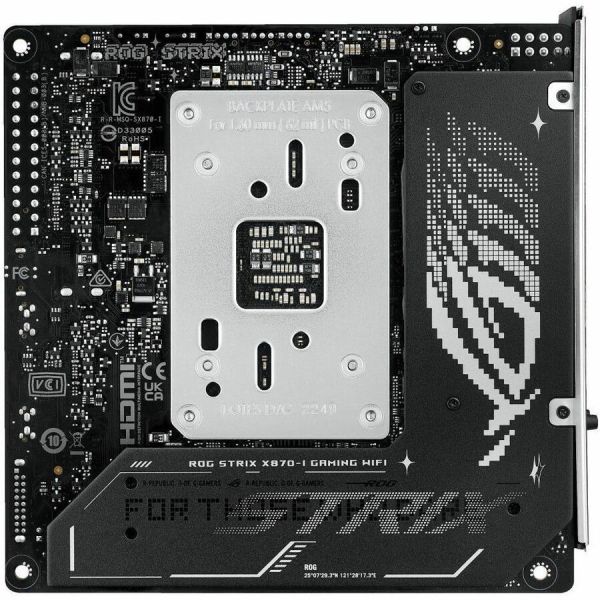

Optimized Thermal Design:Massive heatsinks with integrated I/O cover and high-conductivity thermal pads, connected with an L-shaped backplate
Latest M.2 Support:One onboard PCIe5.0 M.2 slot and one PCIe 4.0 M.2 slots, all with substantial cooling solutions

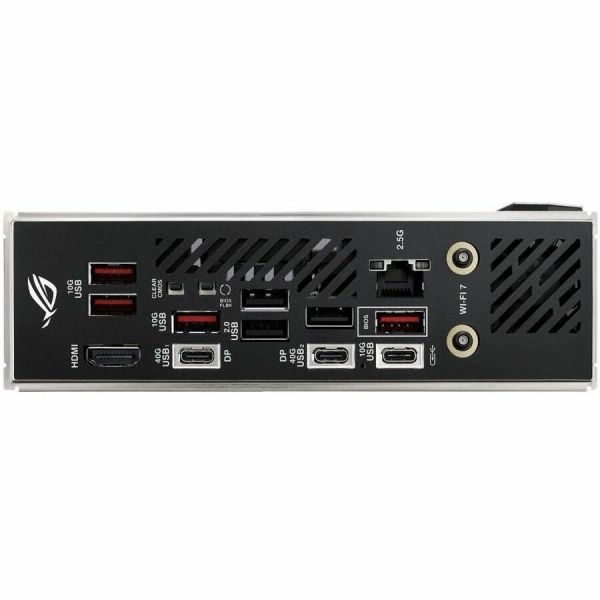

Abundant Connectivity:Dual USB4Type-C ports, USB 10Gbps Type-Cfront-panel connector, seven additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI port
High-Performance Networking:On-board WiFi 7 (802.11be) with Intel2.5 Gb Ethernet

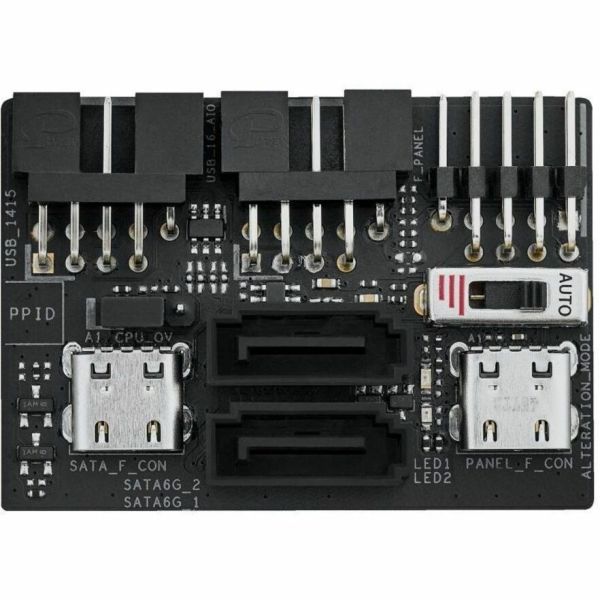

DIY Friendly Design:Bundled ROG FPS-II Card and ROG Strix Hive II, PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield

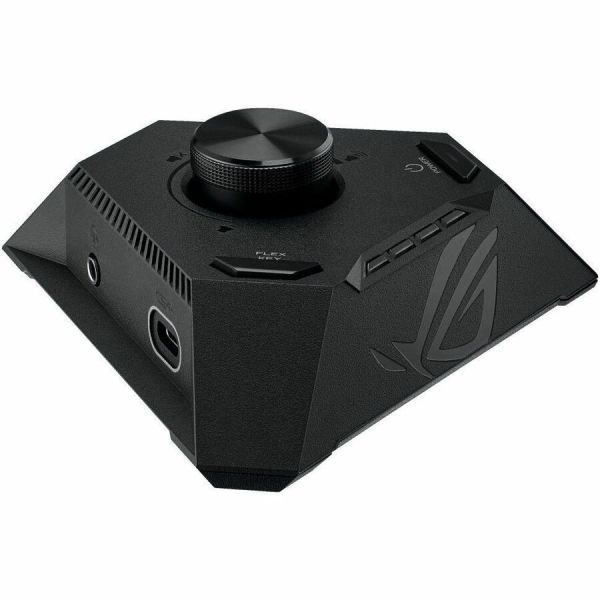

Immersive Audio:ROG Strix Hive II external audio solution with ESS SABRE 9260Q DAC, along with Dolby Atmos
Unmatched Personalization:ASUS-exclusive Aura Sync RGB lighting, including two addressable Gen 2 headers
Renowned Software:ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard.
  • Ryzen 7 processors supported for enhanced, dependable system performance with maximum usability
  • DDR5 SDRAM slot for convenient installation of memory
  • RAID supported levels provide data reliability and fault tolerance
  • IEEE 802.11be wireless standard support enables a hassle-free peripheral connection
  • HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
  • DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
  • Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor
Related Articles
Need more information? Ask a Question

Product Specifications

  • AI-powered
    Yes
  • Bluetooth
    Yes
  • Bluetooth Standard
    Bluetooth 5.4
  • Brand Name
    Asus ROG
  • Chipset Manufacturer
    AMD
  • Chipset Model
    X870
  • Controller Type
    Serial ATA/600
  • Depth
    6.7"
  • DisplayPort
    Yes
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Error Checking
    ECC
  • Form Factor
    Mini ITX
  • Gigabit Ethernet
    Yes
  • HDMI
    Yes
  • HDMI Version
    2.1
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    ROGSTRIXX870IGAMINGWIFI
  • Maximum Memory Supported
    96 GB
  • Memory Form Factor
    DIMM UDIMM
  • Memory Speed Supported
    8000 MHz
  • Memory Technology
    DDR5 SDRAM
  • Number of M.2 Interfaces
    2
  • Number of Memory Slots
    2
  • Number of Network (RJ-45) Ports
    1
  • Number of PCI Express x16 Slots
    2
  • Number of SATA Interfaces
    2
  • Onboard Video
    CPU Dependent Video
  • PCI Express Standard
    PCI Express 4.0 PCI Express 5.0
  • Package Contents

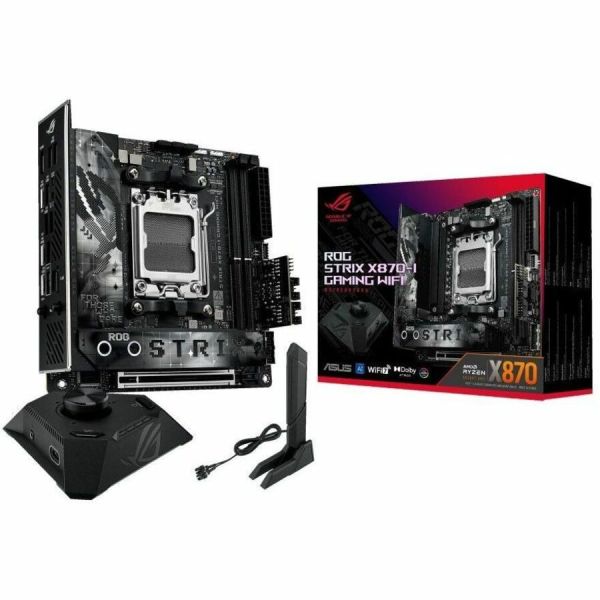

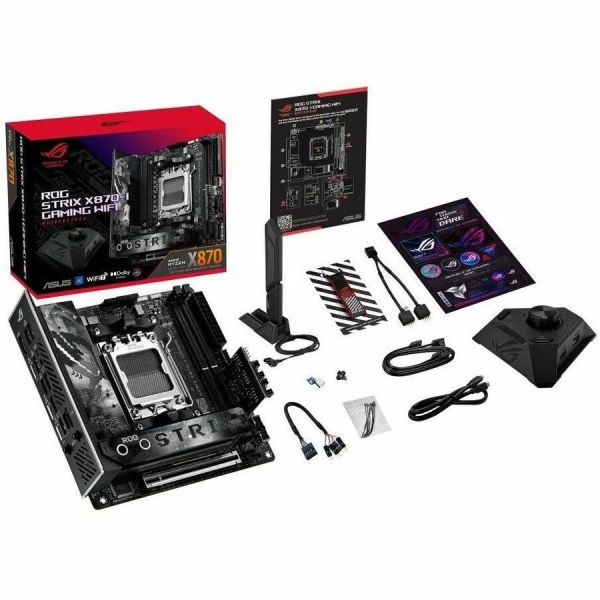

    Strix X870-I GAMING WIFI Gaming Desktop Motherboard 1 x Panel cable 1 x ROG USB2.0 splitter cable 2 x SATA 6Gb/s cables 1 x ROG FPS Card 1 x ROG STRIX HIVE II 1 x USB Type-C power connection cable 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package(s) 1 x ROG key chain 1 x ROG Strix stickers 1 x M.2 rubber package(s) 1 x Quick start guide
  • Processor Socket
    Socket AM5
  • Processor Supported
    Ryzen 7 Ryzen 9
  • Product Line
    Strix
  • Product Model
    X870-I GAMING WIFI
  • Product Name
    Strix X870-I GAMING WIFI Gaming Desktop Motherboard
  • Product Type
    Gaming Desktop Motherboard
  • RAID Levels
    0 1 10
  • RAID Supported
    Yes
  • Total Number of Expansion Slots
    2
  • Total Number of Onboard USB Ports
    3
  • Total Number of PCI Express Slots
    2
  • Total Number of USB Ports
    10
  • Total Processor Supported
    1
  • VGA
    Yes
  • Width
    6.7"
  • Wireless LAN
    Yes
  • Wireless LAN Standard
    IEEE 802.11be
