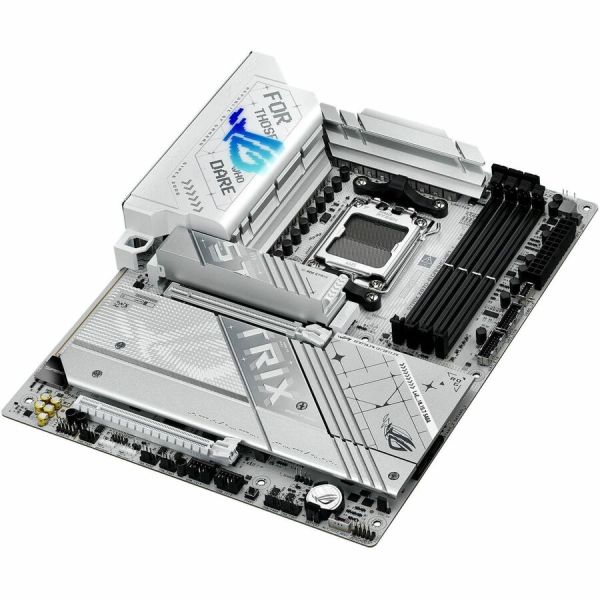

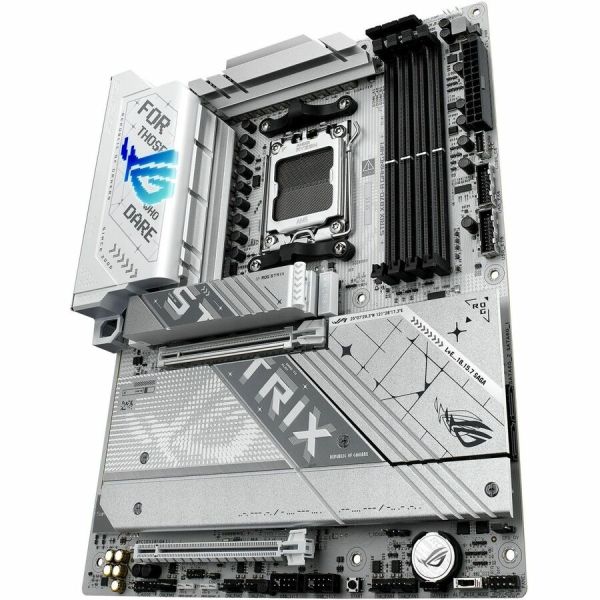

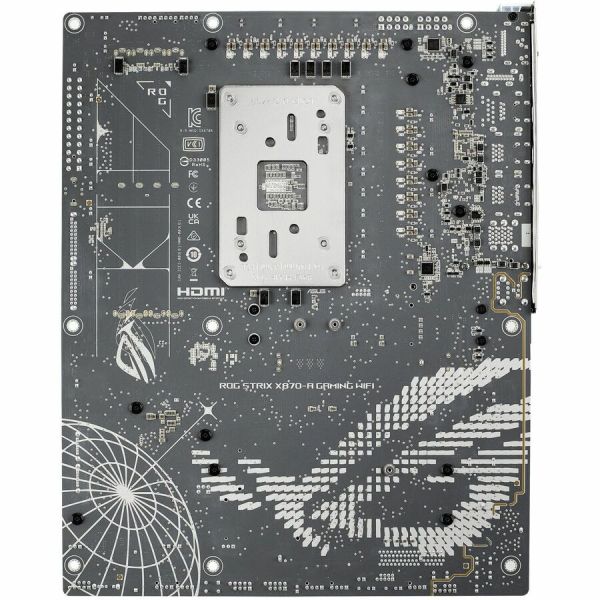

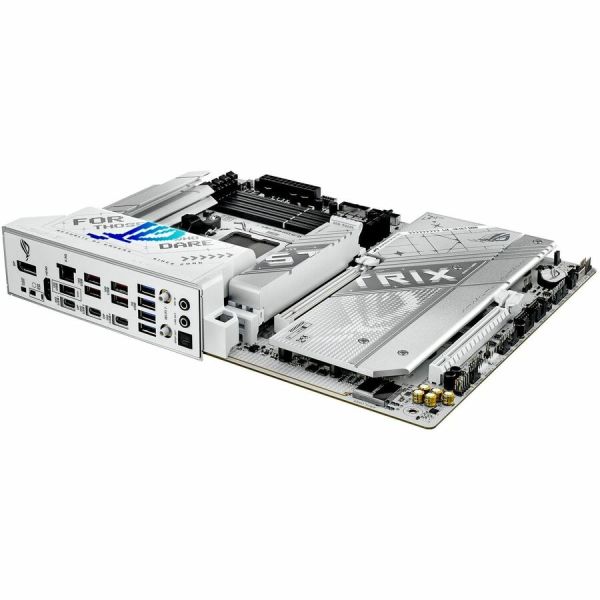

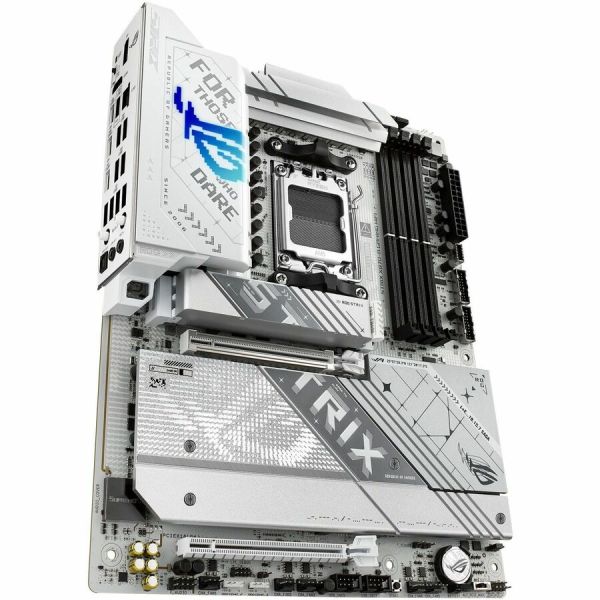

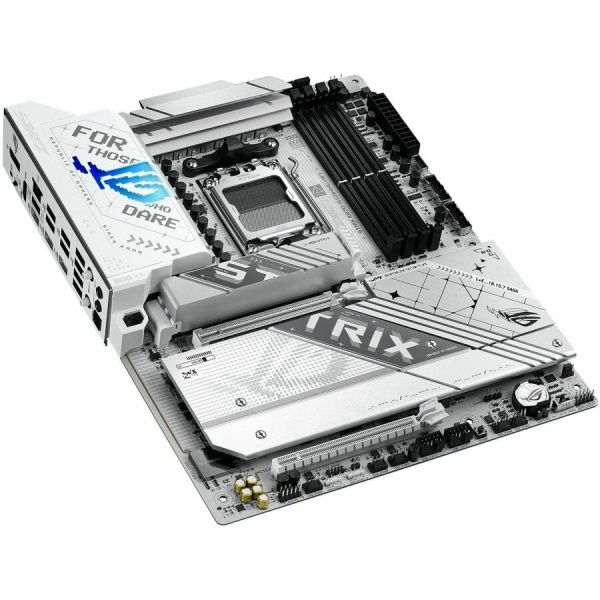

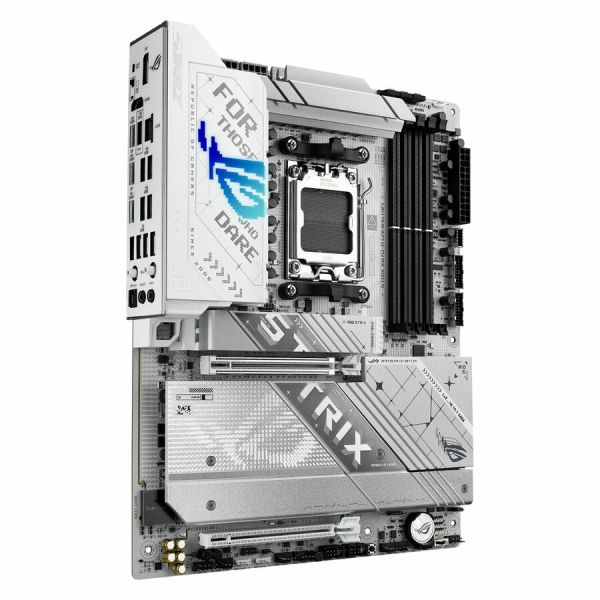

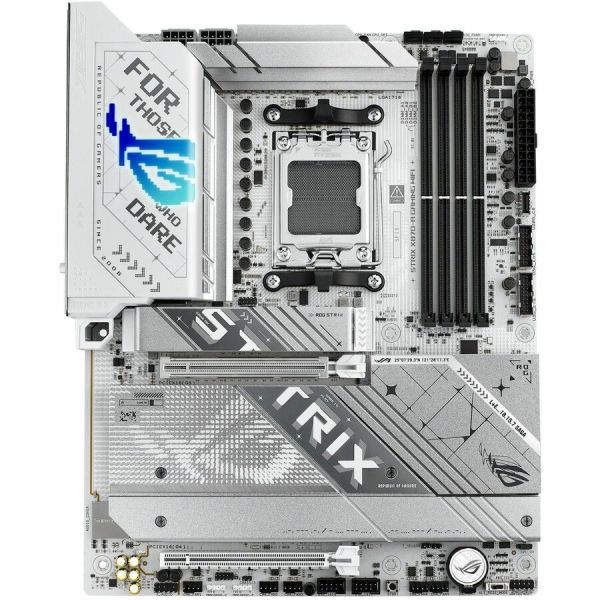

Asus ROG Strix X870-A GAMING WIFI Gaming Desktop Motherboard - AMD X870 Chipset - Socket AM5 - ATX
+7View All
$339.06
Loading...
Product Description
Asus ROG Strix X870-A GAMING WIFI Gaming Desktop Motherboard - AMD X870 Chipset - Socket AM5 - ATX
Ryzen 7, Ryzen 9 Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11be - HDMI - DisplayPort - 2 x SATA Interfaces
AMD X870 ATX motherboard with 16+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, two USB4ports, USB 10Gbps Type-Cwith PD 3.0 up to 30W, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.
Ready for Advanced AI PCs:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket:Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors
Intelligent Control:ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance
ROG Strix Overclocking technologies:Dynamic OC Switcher, Core Flex, Asynchnorous Clock and PBO Enhancement
Robust Power Solution:16+2+2 power solution rated for 90A per stage with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design:Massive heatsinks bridged to the VRMs with high-conductivity thermal pads and an integrated I/O cover
Latest M.2 Support: Two onboard PCIe5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with substantial cooling solutions

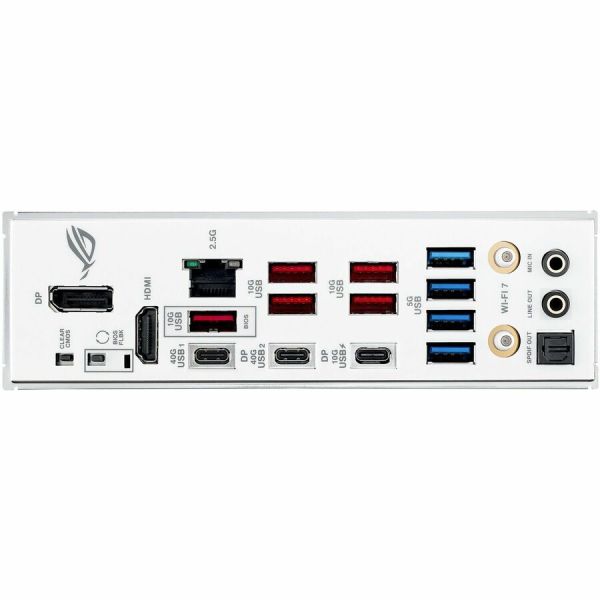

Abundant Connectivity:Dual USB4Type-C ports, USB 20Gbps Type-Cfront-panel connector, one USB 10Gbps Type-Crear I/O port with PD 3.0 up to 30W and USB Wattage Watcher, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI port

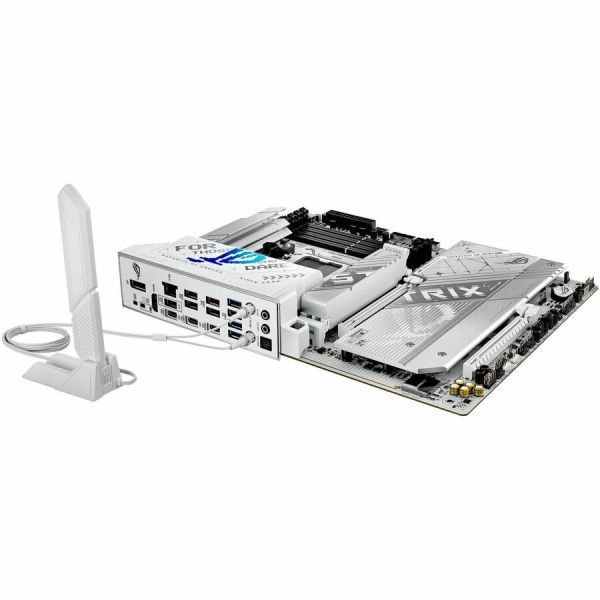

High-Performance Networking: On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet
DIY Friendly Design:PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield
Immersive Audio:ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos
Unmatched Personalization:ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
Renowned Software:ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard
ASUS AI INTELLIGENCE | AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
AI COOLING II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.
Ready for Advanced AI PCs:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket:Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors
Intelligent Control:ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance
ROG Strix Overclocking technologies:Dynamic OC Switcher, Core Flex, Asynchnorous Clock and PBO Enhancement
Robust Power Solution:16+2+2 power solution rated for 90A per stage with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design:Massive heatsinks bridged to the VRMs with high-conductivity thermal pads and an integrated I/O cover
Latest M.2 Support: Two onboard PCIe5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with substantial cooling solutions
Abundant Connectivity:Dual USB4Type-C ports, USB 20Gbps Type-Cfront-panel connector, one USB 10Gbps Type-Crear I/O port with PD 3.0 up to 30W and USB Wattage Watcher, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI port
High-Performance Networking: On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet
DIY Friendly Design:PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield
Immersive Audio:ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos
Unmatched Personalization:ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
Renowned Software:ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard
ASUS AI INTELLIGENCE | AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
AI COOLING II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.
- Ryzen 7 processors supported for enhanced, dependable system performance with maximum usability
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
- RAID supported levels provide data reliability and fault tolerance
- Wireless LAN support lets you connect to the internet and have instant access to social media, music, movies and online games
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Loading...
Product Specifications
-
AI-poweredYes
-
Audio Channels7.1
-
BluetoothYes
-
Bluetooth StandardBluetooth 5.4
-
Brand NameAsus ROG
-
Chipset ManufacturerAMD
-
Chipset ModelX870
-
Controller TypeSerial ATA/600
-
Depth9.6"
-
DisplayPortYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Error CheckingECC
-
Form FactorATX
-
Gigabit EthernetYes
-
HDMIYes
-
HDMI Version2.1
-
Limited Warranty3 Year
-
Manufacturer Part NumberROGSTRIXX870AGAMINGWIFI
-
Maximum Memory Supported192 GB
-
Memory Form FactorDIMM UDIMM
-
Memory Speed Supported8000 MHz
-
Memory TechnologyDDR5 SDRAM
-
Number of M.2 Interfaces4
-
Number of Memory Slots4
-
Number of Network (RJ-45) Ports1
-
Number of Onboard USB 2.0 Ports4
-
Number of PCI Express x16 Slots3
-
Number of SATA Interfaces2
-
Onboard VideoCPU Dependent Video
-
PCI Express StandardPCI Express 4.0 PCI Express 5.0
-

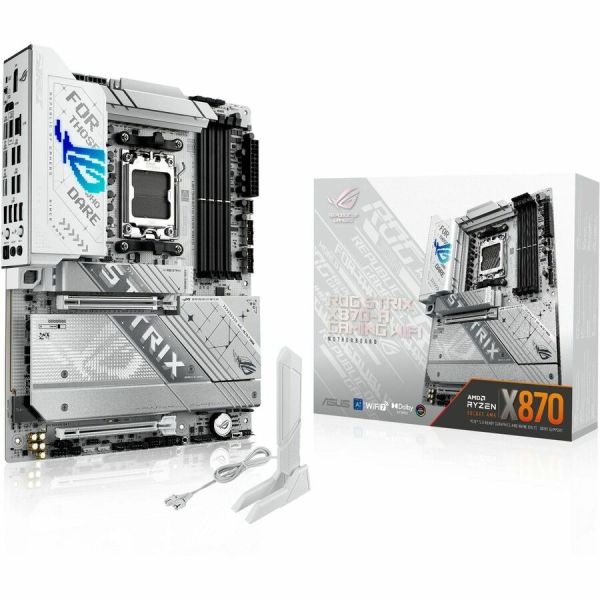

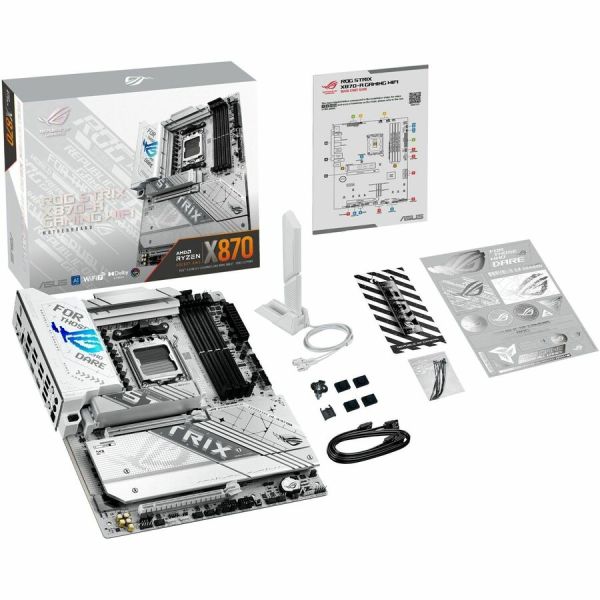

Package ContentsStrix X870-A GAMING WIFI Gaming Desktop Motherboard 2 x SATA 6Gb/s cables 1 x Thermal pad for M.2 22110 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubber packages 1 x Quick start guide
-
Processor SocketSocket AM5
-
Processor SupportedRyzen 7 Ryzen 9
-
Product LineStrix
-
Product ModelX870-A GAMING WIFI
-
Product NameStrix X870-A GAMING WIFI Gaming Desktop Motherboard
-
Product TypeGaming Desktop Motherboard
-
RAID Levels0 1 5 10
-
RAID SupportedYes
-
S/PDIFYes
-
Total Number of Expansion Slots3
-
Total Number of Onboard USB Ports9
-
Total Number of PCI Express Slots3
-
Total Number of USB Ports12
-
Total Processor Supported1
-
VGAYes
-
Width12"
-
Wireless LANYes
-
Wireless LAN StandardIEEE 802.11be
