MSI X870-P WIFI Gaming Desktop Motherboard - AMD X870 Chipset - Socket AM5 - ATX
Product #:
ETLZ1082574662
+3View All
$216.91
Loading...
Product Description

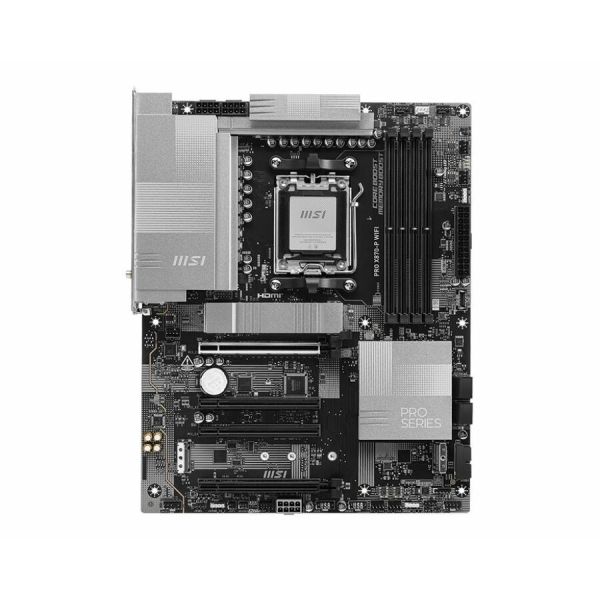

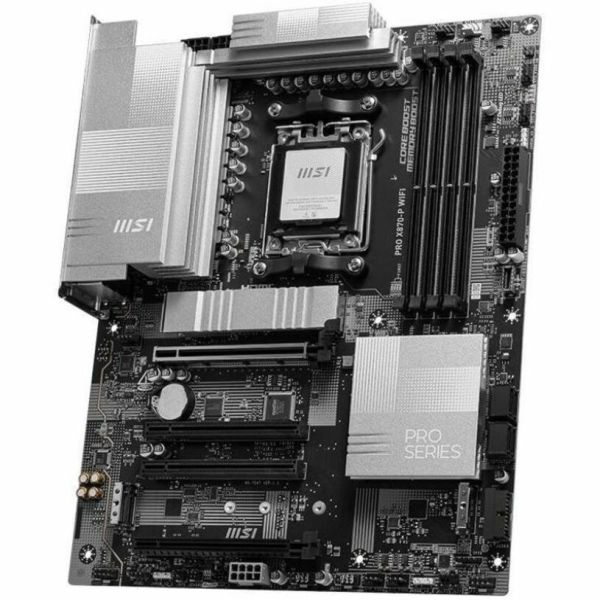

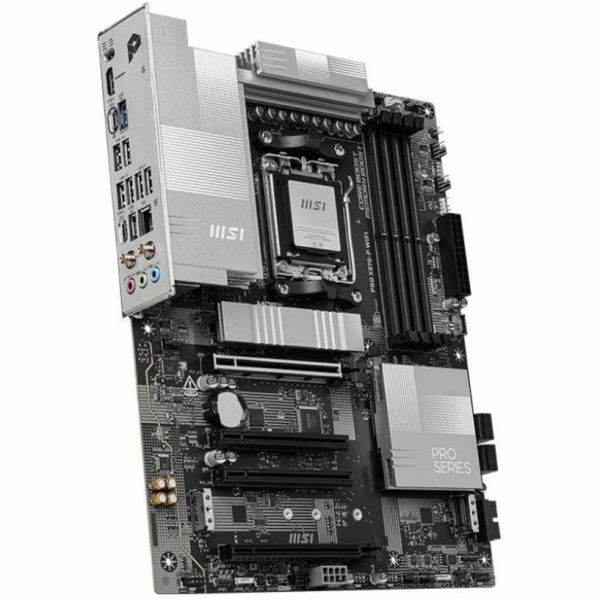

MSI X870-P WIFI Gaming Desktop Motherboard - AMD X870 Chipset - Socket AM5 - ATX
Ryzen 7, Ryzen 9 Processor Supported - 256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax/be - HDMI - DisplayPort - 4 x SATA Interfaces
PRO X870-P WIFI
PRO X870-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
PRO SERIES BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
One Finger for EZ GPU Installation
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.

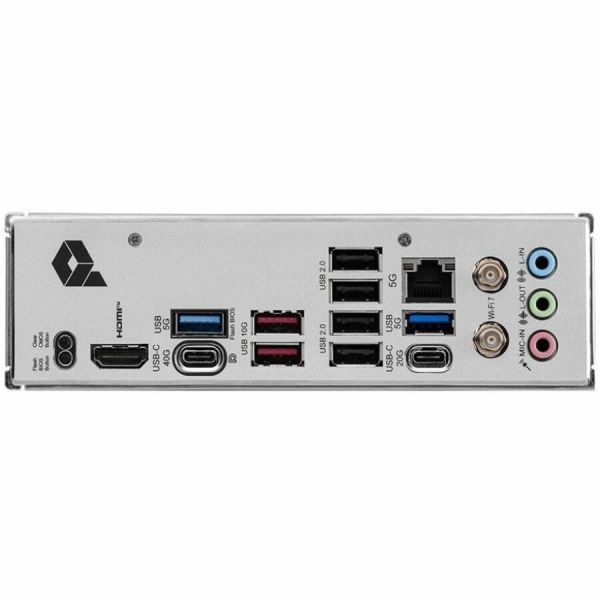

PRE-INSTALLED I/O SHIELD
The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.
PRO X870-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
PRO SERIES BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
One Finger for EZ GPU Installation
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.
PRE-INSTALLED I/O SHIELD
The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.
- Wi-Fi 7 The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E
- Lightning USB 40G Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
- 5G Network Solution Featuring premium 5G LAN to deliver better network experience.

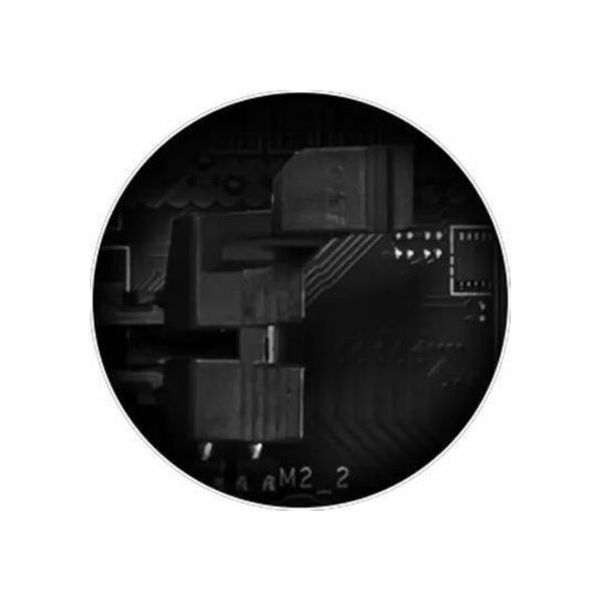

- EZ M.2 Shield Frozr II The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
- EZ PCIe Clip II Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces
- Latest DDR5 Memory A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Lightning Gen 5 The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
- Extended Heatsink Design MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- Pre-installed I/O Shielding Better EMI protection and more convenience for installation
- Frozr AI Cooling Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
- Ryzen 7 processors supported for faster, dependable performance and better access to data and information
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- Enjoy the freedom of Wi-Fi and connect devices faster
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- With 4 USB 2.0 ports, transfer several documents without error
Loading...
Product Specifications
-
AI-poweredYes
-
Audio Channels7.1
-
BluetoothYes
-
Bluetooth StandardBluetooth 5.4
-
Brand NameMSI
-
Chipset ManufacturerAMD
-
Chipset ModelX870
-
Controller TypeSerial ATA/600
-
Depth9.6"
-
DisplayPortYes
-
Form FactorATX
-
Gigabit EthernetYes
-
HDMIYes
-
HDMI Version2.1
-
Manufacturer Part NumberX870PWIFI
-
Maximum Memory Supported256 GB
-
Memory Form FactorDIMM UDIMM
-
Memory Speed Supported8200 MHz 6400 MHz 6000 MHz 5600 MHz 4800 MHz
-
Memory TechnologyDDR5 SDRAM
-
Number of M.2 Interfaces3
-
Number of Memory Slots4
-
Number of Network (RJ-45) Ports1
-
Number of Onboard USB 2.0 Ports4
-
Number of PCI Express x16 Slots4
-
Number of SATA Interfaces4
-
Number of USB 2.0 Ports4
-
Onboard VideoCPU Dependent Video
-
PCI Express StandardPCI Express 5.0 PCI Express 4.0 PCI Express 3.0
-
Package ContentsPRO X870-P WIFI Gaming Desktop Motherboard European Union Regulatory Notice Quick Installation Guide 3 x EZ M.2 Clip II EZ M.2 Clip II Remover EZ Wi-Fi Antenna 1 to 2 EZ Conn-Cable (V1) 2 x SATA Cables
-
Processor SocketSocket AM5
-
Processor SupportedRyzen 7 Ryzen 9
-
Product ModelX870-P WIFI
-
Product NamePRO X870-P WIFI Gaming Desktop Motherboard
-
Product SeriesPRO
-
Product TypeGaming Desktop Motherboard
-
RAID Levels0 1 5
-
RAID SupportedYes
-
Total Number of Expansion Slots4
-
Total Number of Onboard USB Ports7
-
Total Number of PCI Express Slots4
-
Total Number of USB Ports10
-
Total Processor Supported1
-
Width12"
-
Wireless LANYes
-
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax/be
