Black Box 4K USB 2.0 RS-232 Audio Video Extender DisplayPort

Product #: SYNX4751117
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

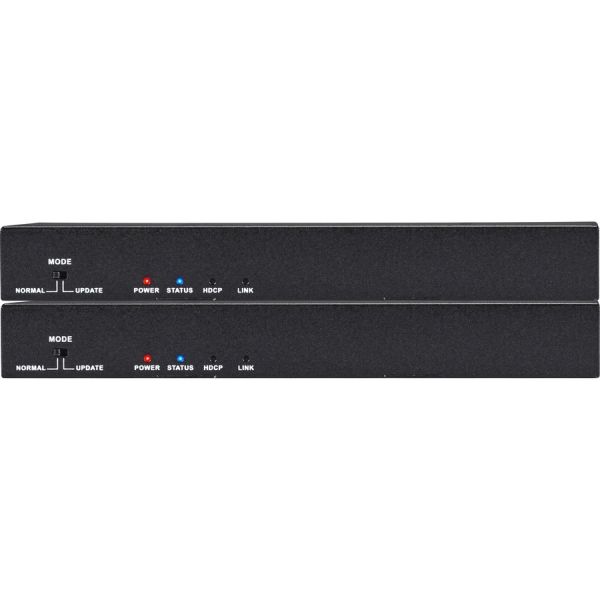

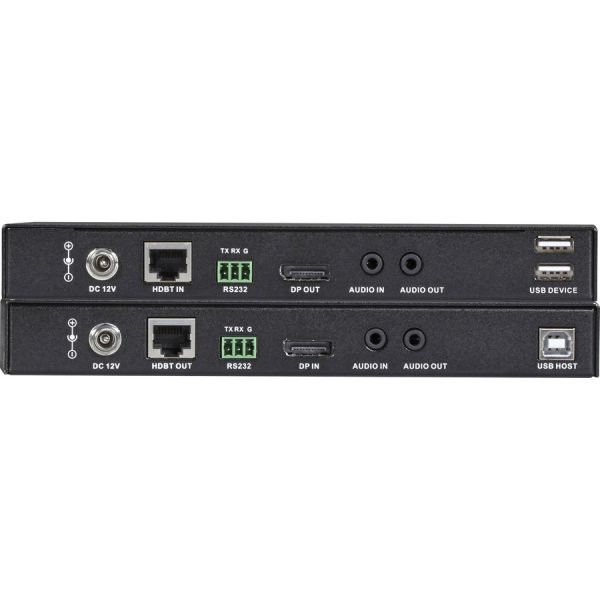

Black Box 4K USB 2.0 RS-232 Audio Video Extender DisplayPort
1 Input Device - 1 Output Device - 330 ft Range - 2 x Network (RJ-45) - 3 x USB - DisplayPort - 4K - 3840 x 2160 - Twisted Pair - Category 7
This Black Box DisplayPort & USB 2.0 Extender is designed for highly demanding use cases and is capable of supporting DisplayPort resolutions up to Ultra HD 4K at distances of up to 100m. The Transmitter and Receiver units are electronically isolated from one another removing the risk of damage via ground loop, with USB 2.0 devices one can extend a keyboard, mouse and and other peripheral signals.
  • USB 2.0 passthrough
  • Use 48 V PoC (Power over CATx) to power the receiver unit from the transmitter
  • HDCP 2.2 compliant and supports EDID transmission
  • Extend your signals as far as 100m over CAT6A/CAT7 cables
  • Transmitting uncompressed video, native 4K@30 Hz UHD DisplayPort signals
  • Supports resolutions up to 4K, including 3840 x 2160 and 1080p/60 Deep Color
  • Access distant AV sources or even to control remote computers
  • Simultaneously transmits bidirectional analog stereo audio
  • Video Extender Transmitter/Receiver provides efficient and feasible audio/video transmission, decoding, and extending
  • 3840 x 2160 maximum video resolution for a vivid, crystal clear display with added productivity
  • USB connectivity allows dependable and efficient power supply with maximum productivity
  • Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
  • 1 input devices supported for maximum feasibility and usage convenience
  • 1 output devices supported to better accommodate your specific requirements
  • 330 ft maximum operating distance for feasible operation and optimal coverage
  • 4K graphics mode provides optimal video output with remarkable picture clarity
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    Black Box
  • Connectivity Technology
    Wired
  • Country of Origin
    China
  • DisplayPort
    Yes
  • Environmental Compliance
    Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Graphics Modes
    4K
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    UVX-DP-TP-100M
  • Maximum Operating Distance
    330 ft
  • Maximum Video Resolution
    3840 x 2160
  • Media Type Supported
    Twisted Pair
  • Network (RJ-45)
    Yes
  • Number of Input Devices Supported
    1
  • Number of Network (RJ-45) Ports
    2
  • Number of Output Devices Supported
    1
  • Number of USB Ports
    3
  • Package Contents
    1 x DisplayPort Transmitter 1 x DisplayPort Receiver 1 x 12-VDC, 2-A power supply with US, EU, UK, and AU power clips 2 x 3.5-mm, 2-pin male Phoenix connectors 2 x Mounting brackets User manual
  • Product Condition
    New
  • Product Name
    4K USB 2.0 RS-232 Audio Video Extender DisplayPort
  • Product Type
    Video Extender Transmitter/Receiver
  • Receiver Depth
    3.95"
  • Receiver Height
    0.99"
  • Receiver Weight (Approximate)
    1.10 lb
  • Receiver Width
    7.91"
  • Transmitter Depth
    3.95"
  • Transmitter Height
    0.99"
  • Transmitter Weight (Approximate)
    1.10 lb
  • Transmitter Width
    7.91"
  • Twisted Pair Cable Standard
    Category 7
  • USB
    Yes
