StarTech.com 2 Port VGA Video Splitter - USB Powered - Compact USB-powered VGA splitter allows you to split a video source to two separate displays
+3View All
Product Description
StarTech.com 2 Port VGA Video Splitter - USB Powered - Compact USB-powered VGA splitter allows you to split a video source to two separate displays
Compact USB-powered VGA splitter allows you to split a video source to two separate displays - vga video splitter - vga monitor splitter - 2 port vga splitter - computer video splitter - vga distribution system

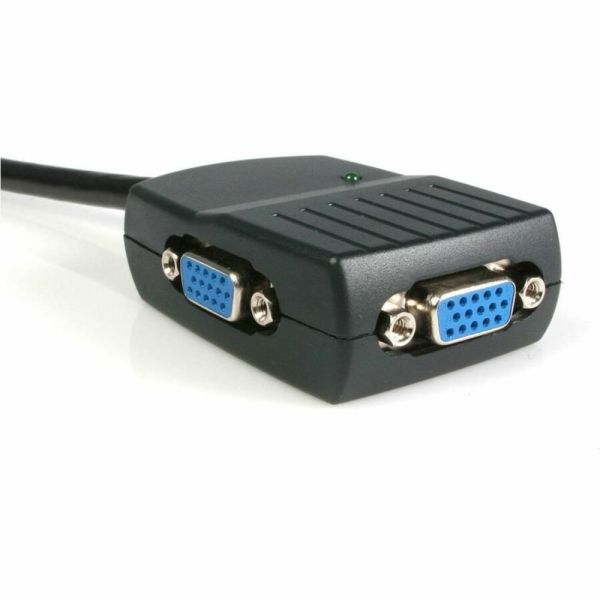

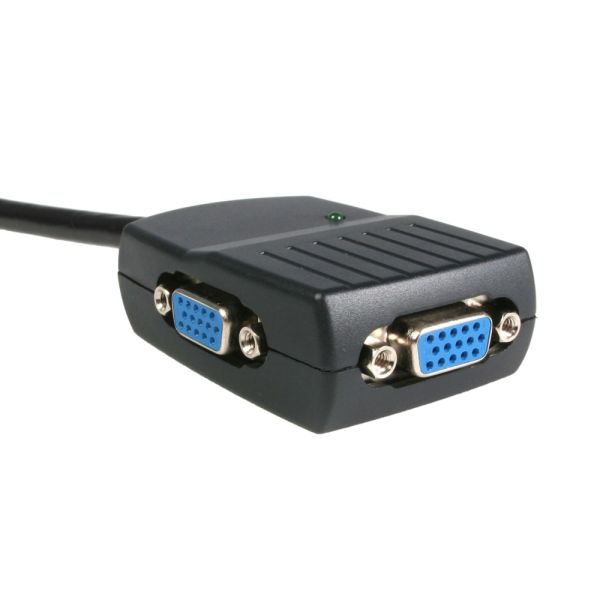

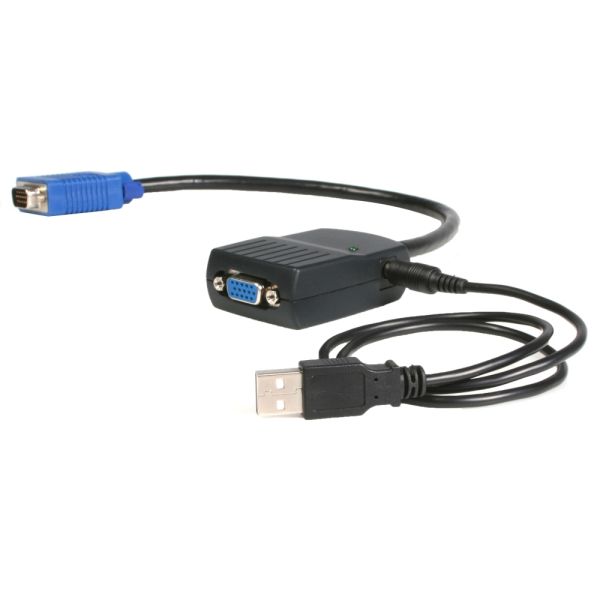

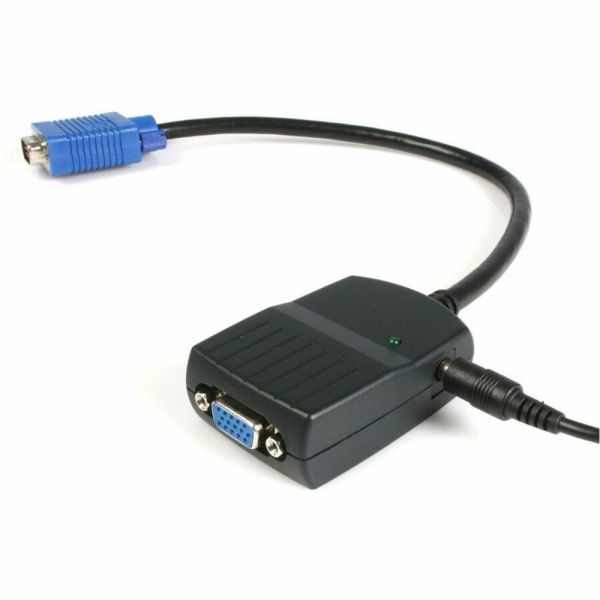

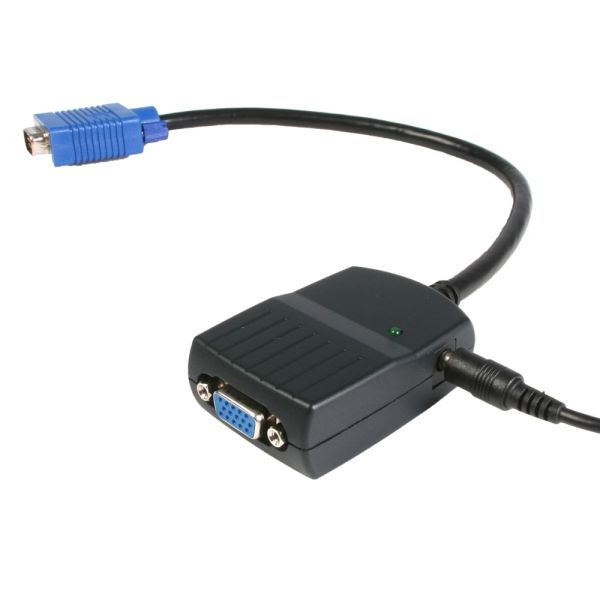

This 2-Port VGA Video Splitter allows a computer to display VGA video on two monitors simultaneously.
Perfect for classrooms, tradeshows, or any environment requiring high quality video on several monitors, the ST122LE VGA splitter supports displays with up to 300 MHz of bandwidth and up to 2048x1536 resolution. Plus, to simplify placement of your VGA displays, the splitter features a built-in booster circuit that allows you to locate VGA monitors up to 200 ft away from your system, and can be powered through a USB connection to the host computer, eliminating the need to find an available power outlet.
Application Diagram
The ST122LE VGA Splitter supports easy plug and play installation, and is backed by StarTech.com's 2-year warranty and FREE lifetime tech support.
More from the Manufacturer
More from the Manufacturer
Perfect for classrooms, tradeshows, or any environment requiring high quality video on several monitors, the ST122LE VGA splitter supports displays with up to 300 MHz of bandwidth and up to 2048x1536 resolution. Plus, to simplify placement of your VGA displays, the splitter features a built-in booster circuit that allows you to locate VGA monitors up to 200 ft away from your system, and can be powered through a USB connection to the host computer, eliminating the need to find an available power outlet.
Application Diagram
The ST122LE VGA Splitter supports easy plug and play installation, and is backed by StarTech.com's 2-year warranty and FREE lifetime tech support.
More from the Manufacturer
More from the Manufacturer
- Supports DDC, DDC2, DDC2B (For video out port 1)
- Integrated signal amplifier boosts your connection range to 200 feet (60 meters)
- USB-Powered
- Our most compact VGA splitter
- 300 MHz video bandwidth
- Supports resolutions up to 2048 x 1536 @60Hz
Loading...
Product Specifications
-
Additional InformationUSB Powered means no bulky external power adapter required reducing clutter. Multiple screens let you communicate your message more effectively to large audiences with greater impact. Integrated signal amplifier boosts your connection range to 210 feet (65 meters).
-
Brand NameStarTech.com
-
ColorBlack
-
Country of OriginCN
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
-
Environmentally FriendlyYes
-
Height9/10 in.
-
Length15.7"
-
Limited Warranty2 Year
-
ManufacturerSTARTECH.COM
-
Manufacturer Part NumberST122LE
-
Maximum Operating Distance196.85 ft
-
Maximum Video Bandwidth300 MHz
-
Maximum Video Resolution2048 x 1536
-
Number of Outputs2
-
Number of VGA Inputs1
-
Number of VGA Outputs2
-
Package Contents2 Port VGA Video Splitter - USB Powered 1 x USB to DC Power Adapter 1 x User Manual
-
Product Name2 Port VGA Video Splitter - USB Powered
-
Product TypeVideo Splitter
-
RefurbishedN
-
TAA CompliantYes
-
VGA InYes
-
VGA OutYes
-
Width1-8/10 in.
