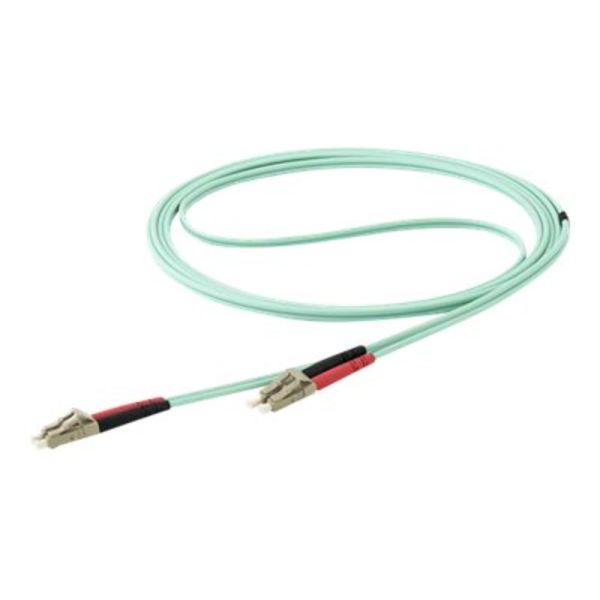

StarTech.com 10m (30ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord

Product #: ODFN5475433
$49.23
Learn more
Ships Free - This items ships free with your order
Delivered by Fri 12/26 Mon 12/29 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

StarTech.com 10m (30ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord
10m (33ft) OM4 Multimode LC/LC-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125µm Core w/ Aramid Sheath; Bandwidth: 2000MHz·km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range: -20 to 60°C (-4 to 140°F)
This LC to LC Multimode Duplex Fiber Optic Patch Cable offers reliable connections for 40GBase-SR4, 100GBase-SR10, SFP plus and QSFP plus transceivers in your 40 and 100 Gigabit networks. With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for 850nm and 1350nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. High-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications. Fiber-optic patch cord is backward compatible with your existing 50/125 equipment, ensuring a reliable connection with legacy LANs. Cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat or in the event of a fire. Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.
More from the Manufacturer
More from the Manufacturer
  • SPECS: 10m (33ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
  • QUALITY CONSTRUCTION: 50/125"m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards
  • COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10
  • OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Warranty Information
    Full Lifetime
  • Brand Name
    StarTech.com
  • Cable Characteristic
    Patch Cable
  • Cable Length
    32.81 ft
  • Cable Type
    Fiber Optic Fiber Optic
  • Color
    Aqua
  • Connector Type on First End
    LC Network - Male
  • Connector Type on Second End
    LC Network - Male
  • Cord Length
    32-13/16 ft
  • Country of Origin
    CN
  • Device Supported
    Network Device; Transceiver
  • Features
    Halogen Free Flame Retardant Corrosion Resistant
  • Fiber Optic Cable Core/Cladding Specification
    50/125 µm
  • Fiber Optic Mode
    Multi
  • Jacket Type
    LSZH
  • Limited Warranty
    Lifetime
  • Manufacturer
    STARTECH.COM
  • Manufacturer Part Number
    450FBLCLC10
  • Maximum Data Transfer Rate
    13421.7728 MB/s
  • Packaging
    1
  • Product Line
    StarTech.com
  • Product Name
    Fiber Optic Duplex Patch Network Cable
  • Product Type
    Cable
  • Quantity
    1
  • Refurbished
    N
  • Shipping Height
    0.87"
  • Shipping Width
    8.66"
