Product Description

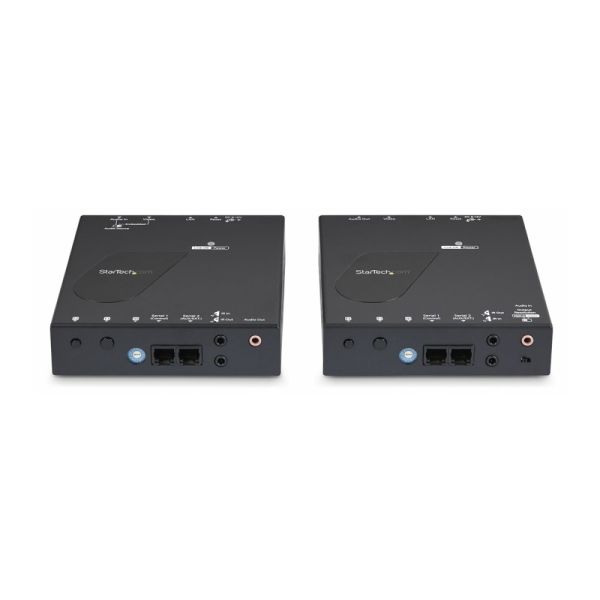

StarTech.com HDMI Over IP Extender Kit
Distribute 4K 30Hz HDMI signals over existing IP network infrastructure using AVoIP; Free iOS/Android app for centralized control; Add Tx and Rx to create video walls over IP; Build scalable, cost-effective and future-ready A/V setups
Distribute 4K 30Hz HDMI signals across your existing IP network with this high-performance AV over IP extender kit. Designed for IT professionals, system integrators, and digital signage specialists, this solution delivers unmatched flexibility for scaling video distribution without the limitations of traditional HDMI splitters or fixed extenders.
Scalable HDMI Over IP
Easily expand your A/V distribution setup and build dynamic video walls using the ST12MHDLAN4K extender kit and additional receivers (ST12MHDLAN4R , sold separately):
One-to-Many: Connect up to 16 receivers to a single transmitter, ideal for broadcasting HDMI over IP to multiple displays
Many-to-Many: Integrate up to 16 ST12MHDLAN4K extender kits and additional ST12MHDLAN4R receivers with a maximum of 16 transmitters and 256 receivers.
For smaller-scale deployments, the extender kit can be used in a simple point-to-point setup over Cat5e/6 cabling up to 330 ft (100 m), with support for extending two independent 3.5 mm audio sources to remote speaker systems.
Centralized Video Control App
The included iOS/Android Video Control App empowers administrators to name sources and displays, switch inputs, and configure video walls, all from a mobile device. With RS232 passthrough, TVs or serial-controlled devices can be managed remotely through the same network.
Flexible Installations for Any Environment
Perfect for digital signage in retail, hospitality, and corporate settings, as well as command centers or other mission-critical environments. The kit includes mounting hardware for clean shelf or rack installations and supports both static and dynamic signage needs.
Note: For optimal performance, a managed network switch with IGMP is recommended when using more than one transmitter or more than four receivers. Non-managed switches may impact the performance of other devices on your network. Jumbo frames support must be enabled to stream 4K video effectively.
More from the Manufacturer
Scalable HDMI Over IP
Easily expand your A/V distribution setup and build dynamic video walls using the ST12MHDLAN4K extender kit and additional receivers (ST12MHDLAN4R , sold separately):
One-to-Many: Connect up to 16 receivers to a single transmitter, ideal for broadcasting HDMI over IP to multiple displays
Many-to-Many: Integrate up to 16 ST12MHDLAN4K extender kits and additional ST12MHDLAN4R receivers with a maximum of 16 transmitters and 256 receivers.
For smaller-scale deployments, the extender kit can be used in a simple point-to-point setup over Cat5e/6 cabling up to 330 ft (100 m), with support for extending two independent 3.5 mm audio sources to remote speaker systems.
Centralized Video Control App
The included iOS/Android Video Control App empowers administrators to name sources and displays, switch inputs, and configure video walls, all from a mobile device. With RS232 passthrough, TVs or serial-controlled devices can be managed remotely through the same network.
Flexible Installations for Any Environment
Perfect for digital signage in retail, hospitality, and corporate settings, as well as command centers or other mission-critical environments. The kit includes mounting hardware for clean shelf or rack installations and supports both static and dynamic signage needs.
Note: For optimal performance, a managed network switch with IGMP is recommended when using more than one transmitter or more than four receivers. Non-managed switches may impact the performance of other devices on your network. Jumbo frames support must be enabled to stream 4K video effectively.
More from the Manufacturer
- Easy Installation. With the included mounting kit, installation is straightforward, allowing the extender to be conveniently secured to walls and adapting to different setups.
- Long-Distance Transmission. It can transmit signals over distances of up to 100 m, providing flexibility in positioning devices while maintaining signal integrity.
- Flexible Connectivity Options. This HDMI extender is designed for wired connectivity, supporting video, audio, infrared, and serial extension, making it versatile for various audiovisual needs.
- Intuitive Status Indicators. Power and link/activity status indicators allow users to easily monitor the operational status of the extender, enhancing user experience and troubleshooting.
- Enhanced Resolution Support. The extender supports a maximum video resolution of 4096 x 2160, ensuring high clarity and detail in video output for professional presentations and media consumption.
Loading...
Product Specifications
-
Application/UsageTV Digital Signage System Retail
-
Brand NameStarTech.com
-
Connectivity TechnologyWired
-
Country of OriginTW
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Graphics Modes4K
-
HDMI InYes
-
HDMI OutYes
-
Limited Warranty2 Year
-
ManufacturerSTARTECH.COM
-
Manufacturer Part NumberST12MHDLAN4K
-
Maximum Operating Distance328.08 ft
-
Maximum Video Resolution3840 x 2160
-
Media Type SupportedTwisted Pair
-
Network (RJ-45)Yes
-
Number of HDMI Inputs1
-
Number of HDMI Outputs1
-
Number of Input Devices Supported1
-
Number of Network (RJ-45) Ports2
-
Number of Output Devices Supported1
-
Package Contents1 x HDMI over IP transmitter 1 x HDMI over IP receiver 2 x universal power adapters (NA, EU, UK, ANZ) 2 x mounting brackets 2 x CAT5e cables 2 x RJ11 to RS232 adapters 2 x RJ11 cables 1 x plastic screwdriver 1 x quick-start guide
-
Product NameHDMI Over IP Extender Kit - 4K
-
Product TypeCable Extender
-
Receiver Weight (Approximate)1.32 lb
-
RefurbishedN
-
TAA CompliantYes
-
Transmitter Weight (Approximate)1.32 lb
-
Twisted Pair Cable StandardCategory 6 Category 5e
