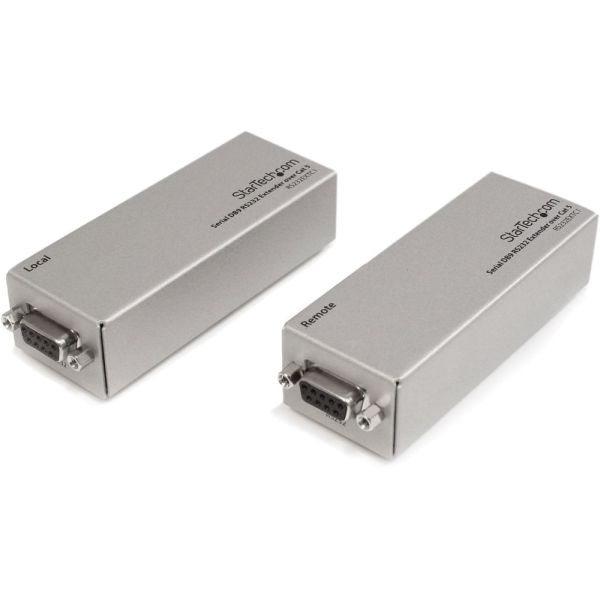

StarTech.com Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters)
Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cabling
The RS232EXTC1 Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit.
The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling.
Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer
More from the Manufacturer
  • Compact design
  • Supports full-duplex data communication
  • Data transfer rates of up to 230Kbps
  • Compatible with all RS232 communications
  • Employ existing Cat 5, 5e, 6 or better Ethernet infrastructure to remotely connect serial devices
  • No driver software required for easy Plug-and-Play installation
  • Extend RS232 up to 1000m / 3300ft
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information
    Enables use of separate control rooms away from harsh environmental conditions where serial devices may be located Provides you with flexibility when choosing the location of your serial peripherals by dramatically increasing the maximum RS232 serial cable length Pure hardware design, no software or drivers required ensuring a simple plug and play installation
  • Brand Name
    StarTech.com
  • Country of Origin
    CN
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmentally Friendly
    Yes
  • Height
    0.9"
  • Input Voltage
    230 V AC
  • Length
    3.6"
  • Limited Warranty
    2 Year
  • Manufacturer
    STARTECH.COM
  • Manufacturer Part Number
    RS232EXTC1
  • Maximum Data Transfer Rate
    230 kB/s
  • Maximum Extended Range
    3280.84 ft
  • Network (RJ-45)
    Yes
  • Number of Network (RJ-45) Ports
    2
  • Package Contents
    RS232 Extender Local Unit RS232 Extender Remote Unit 20cm Null Modem cable (DB-9 Male to Male) Power Adapter User Manual
  • Product Name
    Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters)
  • Product Type
    Network Transceiver
  • Refurbished
    N
  • TAA Compliant
    Yes
  • Width
    1.3"
