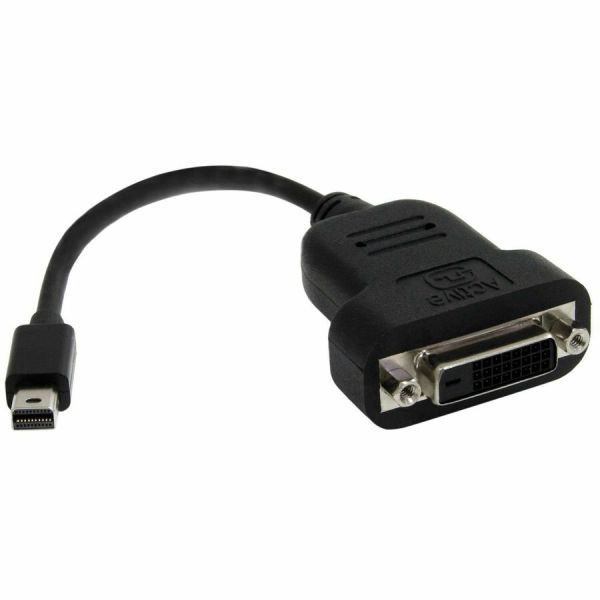

StarTech.com Mini DisplayPort to DVI Active Adapter
Product Description
StarTech.com Mini DisplayPort to DVI Active Adapter
Mini DisplayPort Male Digital Video - DVI-D (Single-Link) Female Digital Video - Black
The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook or Microsoft Surface™ Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.
Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac Mini-DisplayPort output for DVI monitors, televisions or projectors.
The Mini DP to DVI adapter is compatible with Intel Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac Mini-DisplayPort output for DVI monitors, televisions or projectors.
The Mini DP to DVI adapter is compatible with Intel Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
- Supports display resolutions up to 1920x1200 at 60Hz
- Works with video cards that aren't capable of outputting DP++ (multi-mode) signals
- Compliant with DisplayPort 1.1a specifications
- Supports HDCP 1.3
- Compatible with Intel Thunderbolt
Loading...
Product Specifications
-
Brand NameStarTech.com
-
Cable Length4.72"
-
Certifications & StandardsCE FCC
-
Connector Gender on First EndMale
-
Connector Gender on Second EndFemale
-
Connector Type on First EndMini DisplayPort 1.1 Digital Audio/Video - Male
-
Connector Type on Second EndDVI-D Digital Video - Female
-
Connector on First End1 x Mini DisplayPort Male Digital Audio/Video
-
Connector on First End Details1 x 20-pin Mini DisplayPort 1.1 Digital Audio/Video - Male
-
Connector on Second End1 x 25-pin DVI-D (Single-Link) Female Digital Video
-
Connector on Second End Details1 x 25-pin DVI-D Digital Video - Female
-
Country of OriginChina
-
Device SupportedMonitor TV Audio/Video Device
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
-
Environmentally FriendlyYes
-
FeaturesActive Halogen Free HDCP 1.3 Extended Display Identification Data (EDID)
-
Manufacturer Part NumberMDP2DVIS
-
Product ColorBlack
-
Product ModelMDP2DVIS
-
Product NameMini DisplayPort to DVI Active Adapter
-
Product TypeVideo Adapter
