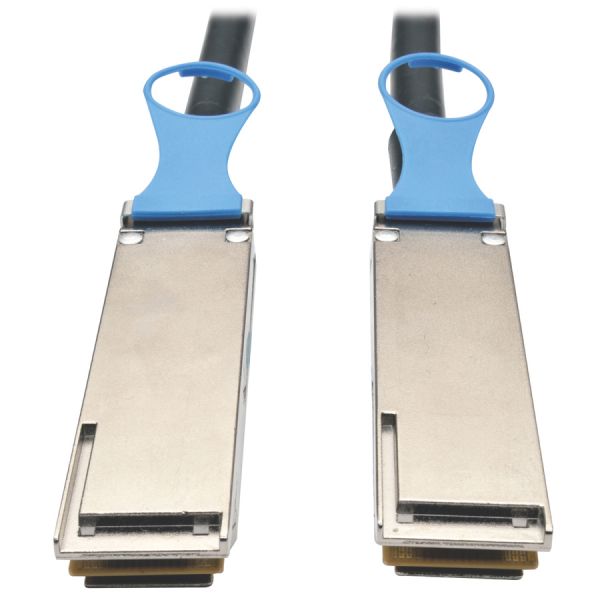

Eaton Tripp Lite Series QSFP28 to QSFP28 100GbE Passive DAC Cable (M/M), QSFP-100G-CU3M Compatible, 3M (9.84 ft.)
Product #:
SYNX4534467
Product Description
Eaton Tripp Lite Series QSFP28 to QSFP28 100GbE Passive DAC Cable (M/M), QSFP-100G-CU3M Compatible, 3M (9.84 ft.)
InfiniBand for Network Device - 12.50 GB/s - 1 x QSFP28 Male Network - 1 x QSFP28 Male Network - Black
The N282-03M-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable provides next-generation performance by combining four 28 Gbps SFP channels into one high-density cable. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets.
This three-meter copper cable integrates a 100G Ethernet-optimized (100 GbE) 38-position "board-as-connector" design with zinc die-cast male QSFP+ connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 100-Gigabit Ethernet (100GBASE-CR4), 128G Fibre Channel and EDR 4x InfiniBand.
Flexible 26 AWG conductors maintain a smooth high-frequency response. The N282-03M-28-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP and QSFP+ ports, as well as RoHS and IEEE 802.3bj.
More from the Manufacturer
This three-meter copper cable integrates a 100G Ethernet-optimized (100 GbE) 38-position "board-as-connector" design with zinc die-cast male QSFP+ connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 100-Gigabit Ethernet (100GBASE-CR4), 128G Fibre Channel and EDR 4x InfiniBand.
Flexible 26 AWG conductors maintain a smooth high-frequency response. The N282-03M-28-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP and QSFP+ ports, as well as RoHS and IEEE 802.3bj.
More from the Manufacturer
- For exceptional quality, upright compatibility and reliability use this network cable
- Features InfiniBand cable type to better accommodate your precise power supply requirements with maximum charging productivity
- Passive feature for better reliability and ensure maximum productivity
- Fully compatible with network devices
Loading...
Product Specifications
-
Brand NameTripp Lite series
-
Cable Length10 ft
-
Cable TypeInfiniBand
-
Connector Type on First EndQSFP28 Network - Male
-
Connector Type on Second EndQSFP28 Network - Male
-
Connector on First End Details1 x QSFP28 Network - Male
-
Connector on Second End Details1 x QSFP28 Network - Male
-
Country of OriginChina
-
Data Transfer Rate100 Gbit/s
-
Device SupportedNetwork Device
-
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
FeaturesCrosstalk Protection Flexible Passive
-
Limited WarrantyLifetime
-
Manufacturer Part NumberN282-03M-28-BK
-
Product ColorBlack
-
Product ModelN282-03M-28-BK
-
Product NameQSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M), 3 m (10 ft)
-
Product TypeNetwork Cable
-
Shipping Height17"
-
Shipping Width14"
