ATEN USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)-TAA Compliant
- Supports HDBaseT 2.0 technology
- Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a cable / 2L-2910 Cat 6 cable
- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- Status detection and LED indication for HDBaseT signal transmission on remote unit
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

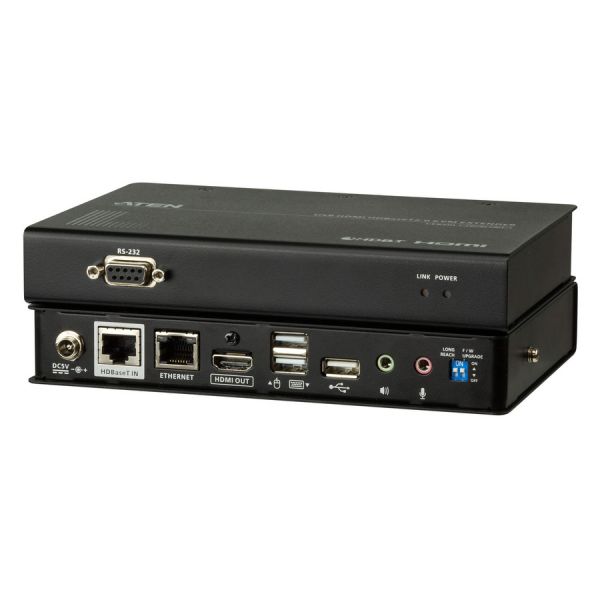

ATEN USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)-TAA Compliant - The ATEN CE820 USB HDMI HDBaseT 2.0 KVM Extender integrates the latest HDBaseT 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required - such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
- Supports HDBaseT 2.0 technology
- Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a cable / 2L-2910 Cat 6 cable
- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- Status detection and LED indication for HDBaseT signal transmission on remote unit
- EDID Buffer for smooth power-up and the highest quality display
- HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
- Long distance with superior video quality
- HDBaseT Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910)
- HDBaseT Long-Reach mode up to 1080P @ 150 m
- Long Reach mode switch - switches between HDBaseT Standard and Long Reach modes in a snap
Product Specifications
-
Brand NameATEN
-
Connectivity TechnologyWired
-
Country of OriginTaiwan
-
Environmentally FriendlyYes
-
Form FactorRack-mountable
-
Graphic Mode4K
-
HDMIYes
-
HeadphoneYes
-
Input Voltage5 V DC
-
Limited Warranty3 Year
-
Manufacturer Part NumberCE820
-
Maximum Operating Distance492.13 ft
-
Maximum Video Resolution4096 x 2160
-
MicrophoneYes
-
Network (RJ-45)Yes
-
Number of HDMI Ports2
-
Number of Network (RJ-45) Ports4
-
Number of USB Ports4
-
Package Contents1 x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit) 1 x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit) 1 x HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft) 2 x Power Adapters 2 x Mounting Kits 8 x Foot Pads 1 x User Instructions
-
Product ModelCE820
-
Product NameUSB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)
-
Product TypeKVM Console/Extender
-
Receiver Depth7.17"
-
Receiver Height1.13"
-
Receiver Weight (Approximate)1.39 lb
-
Receiver Width4.80"
-
Transmitter Depth7.17"
-
Transmitter Height1.13"
-
Transmitter Weight (Approximate)1.43 lb
-
Transmitter Width4.80"
-
USBYes
