ATEN HDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B)-TAA Compliant

Product Number: SYNX4347147
$336.37
Loading...
Ships Free - This items ships free with your order
Delivered by Tue 12/17 Tue 12/17 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item
Loading...

Product Description

ATEN HDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B)-TAA Compliant
1 Input Device - 1 Output Device - 229.66 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable
Description:

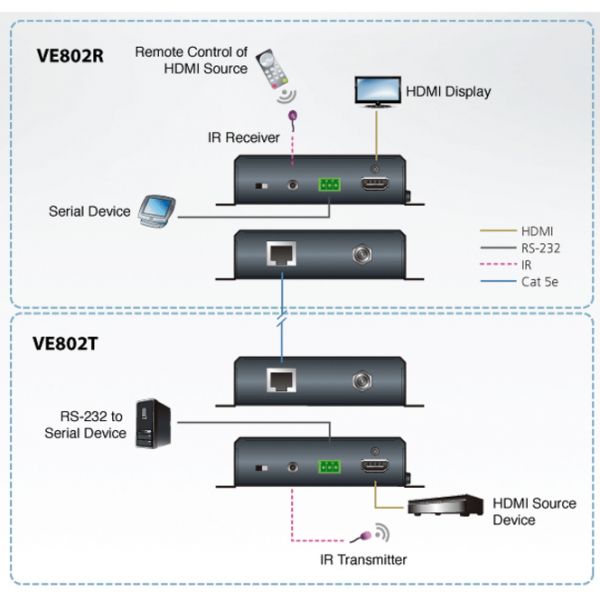

The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. VE802 supports RS-232 and IR signaling passthrough, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802 features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802 is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802 is perfect for a digital entertainment center or any installation that requires superior video quality.
More from the Manufacturer
  • HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
  • Superior video quality - up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
  • HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
  • POH (Power over HDBaseT) - supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
  • Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Bi-directional IR channel - IR transmission is processed one direction at a time
  • Rack- Mountable
  • Video Extender Transmitter/Receiver is all you need for dependable and productive audio/video transmission
  • 4096 x 2160 maximum video resolution for a spectacular, sharp display with added reliability
  • HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
  • HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
  • Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
  • 1 input devices supported to better accommodate your specific requirements
  • 1 output devices supported for maximum productive usability
  • 229.66 ft maximum operating distance to allow efficient coverage and maximum usability
  • 4K graphics mode for an immersive and sharp viewing experience
  • Rack-mountable video extender transmitter/receiver allows a clutter-free, convenient coding/decoding with increased efficiency

Product Specifications

  • Brand Name
    ATEN
  • Connectivity Technology
    Wired
  • Country of Origin
    Taiwan
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack-mountable
  • Graphics Modes
    4K
  • HDMI In
    Yes
  • HDMI Out
    Yes
  • Manufacturer Part Number
    VE802
  • Maximum Operating Distance
    229.66 ft
  • Maximum Video Resolution
    4096 x 2160
  • Media Type Supported
    Twisted Pair
  • Network (RJ-45)
    Yes
  • Number of HDMI Inputs
    1
  • Number of HDMI Outputs
    1
  • Number of Input Devices Supported
    1
  • Number of Network (RJ-45) Ports
    2
  • Number of Output Devices Supported
    1
  • Package Contents
    1 x Transmitter 1 x Receiver 1 x Power Adapter (VE802T) 1 x IR Transmitter 1 x IR Receiver 2 x Terminal Blocks 1 x User Instructions
  • Product Line
    VanCryst
  • Product Model
    VE802
  • Product Name
    HDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B)
  • Product Type
    Video Extender Transmitter/Receiver
  • Receiver Depth
    4.84"
  • Receiver Height
    1.18"
  • Receiver Weight (Approximate)
    1.01 lb
  • Receiver Width
    5.53"
  • Serial Port
    Yes
  • Transmitter Depth
    4.84"
  • Transmitter Height
    1.18"
  • Transmitter Weight (Approximate)
    15.52 oz
  • Transmitter Width
    5.53"
  • Twisted Pair Cable Standard
    Category 6a
