ATEN 4-Port True 4K HDMI Switch with Dual Output VS482B

Product #: SYNX5772062
$271.76
Learn more
Ships Free - This items ships free with your order
Delivered by Fri 12/26 Mon 12/29 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

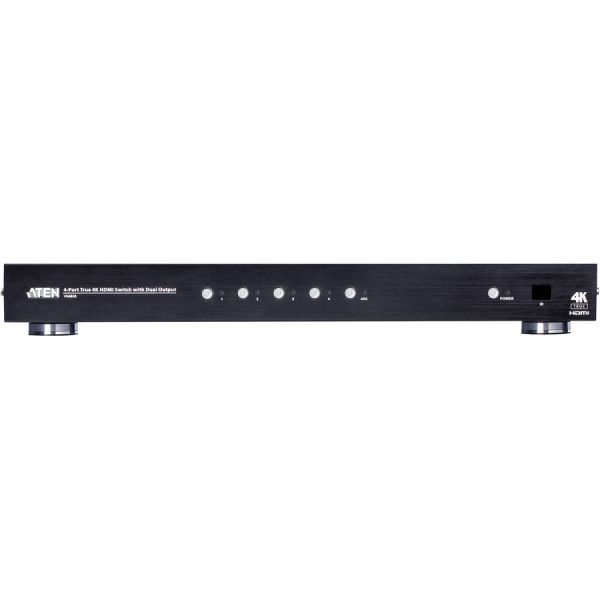

ATEN 4-Port True 4K HDMI Switch with Dual Output VS482B
4096 x 2160 - 4K - 4 x 2 - Display - 2 x HDMI Out
The ATEN VS482B Switch is an ideal solution for application requiring superior video resolution of True 4K when connecting 4 HDMI A/V sources to 2 HDMI displays. Complying with HDMI 2.0 standards, the switch's Audio Return Channel (ARC) function allows users to send audio without having to attach a separate audio cable.
Furthermore, the VS482B offers switching methods between HDMI sources by front panel pushbuttons, IR remote control and RS-232 commands, enabling users to effortlessly select desired input. Equipped with EDID Expert, the VS482B benefits users with optimum EDID settings for smooth power-up and highest-quality display across different screens. Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.
  • Allows up to 4 HDMI A/V sources to be connected to 2 HDMI displays
  • Superior video quality - up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4); HDR supported
  • HDMI 2.0 (3D, Audio Return Channel, Deep Color); HDCP 2.2 compliant
  • Supports Auto Switch - the VS482B automatically switches to a newly plugged-in source
  • Audio Return Channel (ARC) function - connects an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
  • OSD for system configuration settings and information display
  • Switching between HDMI input sources via front panel pushbuttons, IR remote control and RS-232 commands
  • EDID Expert - selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
  • Built-in bi-directional RS-232 serial control port for high-end system control
  • HDMI audio can be extracted to stereo audio and digital audio (optical/coaxial) outputs
  • Use this audio video switchbox and eliminate the need to manually switch cables between sources
  • Trouble free connection with display
  • Up to 4096 x 2160 video resolution
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    Aten
  • Connectivity Technology
    Cable
  • Depth
    17.2"
  • Device Supported
    Display
  • Form Factor
    Desktop
  • Graphics Modes
    4K
  • HDMI In
    Yes
  • HDMI Out
    Yes
  • Height
    1.7"
  • Manufacturer Part Number
    VS482B
  • Maximum Video Resolution
    4096 x 2160
  • Number of Displays Supported
    2
  • Number of HDMI Inputs
    4
  • Number of HDMI Outputs
    2
  • Number of Input Devices Supported
    4
  • Package Contents
    4-Port True 4K HDMI Switch with Dual Output VS482B 1 x Power Adapter 1 x IR Remote Control Unit 1 x Mounting Kit 1 x User Instructions
  • Product Model
    VS482B
  • Product Name
    4-Port True 4K HDMI Switch with Dual Output VS482B
  • Product Type
    Audio/Video Switchbox
  • Width
    6.3"
