Black Box 4K HDMI IR Extender 70M

Product #: ETLZ1031089119
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

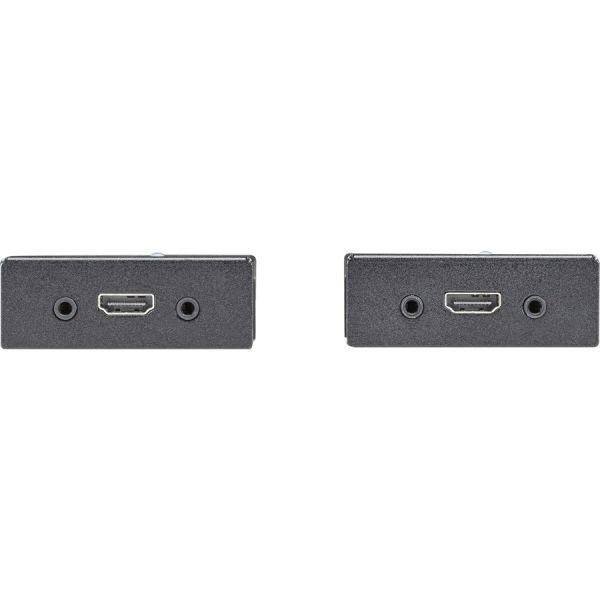

Black Box 4K HDMI IR Extender 70M
1 Input Device - 1 Output Device - 229.66 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 3840 x 2160 - Twisted Pair - Category 6

Extend HDMI over a single CATx cable
The 4K CATx Lite Extender uses CATx technology for extension. Distribute digital signage content or other HD video and audio over a single CAT5e/6 cable. The transmitter-receiver combo makes it easy to send digital full 1080p-quality video and audio plus IR and serial RS-232 control signals up to 230 feet (70 m) or 4K/UHD up to 131 feet (40 m).
Optimal PC-to-screen performance
The 4K CATx Lite Transmitter and Receiver feature EDID copy function and are HDCP-compliant and Blu-ray ready.
Lossless compression for HD extension
The 4K CATx Lite Extender transmits broadcast-quality video and audio as well as all common PC resolutions (XGA, SXGA, UXGA, WSXGA) up to 3840 x 2160 (Full HD, WUXGA, UHD) at 30 Hz.
Simplified control
The extender supports CEC passthrough and source device control via a built-in IR extender function (an IR emitter and IR receiver are included). IR commands received in the vicinity of the display extend back to the source device. This way, a receptionist stationed near a screen, for instance, can use an HDTV's remote controller to change settings on a source device in another room.
4K CATx Lite Extender Kit is great for:
- Hospitality (hotels and conference rooms)
- Digital signage (airports and shopping malls)
- Surveillance cameras
- Whole-home networking
- Point-to-point consumer application
  • Send HDMI signals to multimedia displays up to 230 feet (70 m) using a single CAT5e/6 cable
  • Uses CATx technology
  • This kit includes an HDMI transmitter and HDMI receiver
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    Black Box
  • Connectivity Technology
    Wired
  • Country of Origin
    Taiwan
  • Environmentally Friendly
    Yes
  • Graphics Modes
    4K
  • HDMI In
    Yes
  • HDMI Out
    Yes
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    VX-HDMI-TP-70M
  • Maximum Operating Distance
    229.66 ft
  • Maximum Video Resolution
    3840 x 2160
  • Media Type Supported
    Twisted Pair
  • Network (RJ-45)
    Yes
  • Number of HDMI Inputs
    1
  • Number of HDMI Outputs
    1
  • Number of Input Devices Supported
    1
  • Number of Network (RJ-45) Ports
    2
  • Number of Output Devices Supported
    1
  • Product Condition
    New
  • Product Name
    4K HDMI IR Extender 70M
  • Product Type
    Video Extender Transmitter/Receiver
  • Transmitter Weight (Approximate)
    1 lb
  • Twisted Pair Cable Standard
    Category 6
