C2G 1-Gang Dual HDMI HDBaseT Wall Plate Transmitter RS232 over Cat Extender
Product #:
SYNX6446290
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

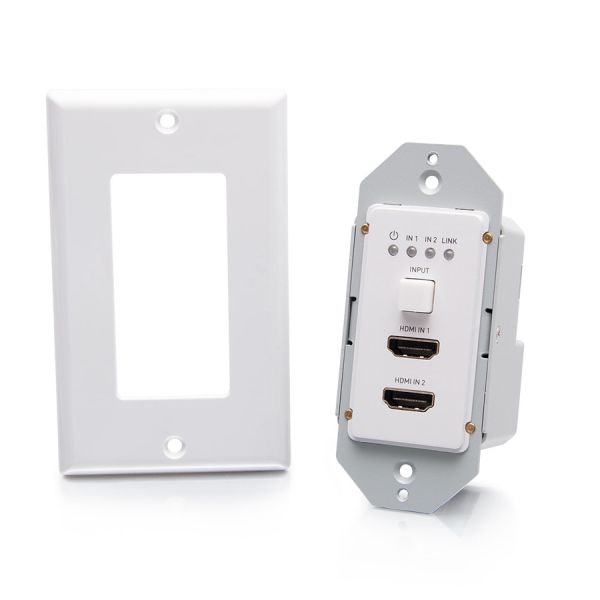

C2G 1-Gang Dual HDMI HDBaseT Wall Plate Transmitter RS232 over Cat Extender
12 Input Device - 230 ft Range - 1 x Network (RJ-45) - 2 x HDMI In - 4K UHD - Twisted Pair - Category 7 - Wall Plate
The Dual HDMI HDBaseT + RS232 over Cat Extender Single Gang Wall Plate Transmitter - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This transmitter is an ideal part of an HDBaseT solution where HDMI video and audio in conference rooms, classrooms, lecture halls, and many other installation needs are far beyond the length limitations of standard HDMI cabling.
This transmitter extends HDMI over a single Cat5e, Cat6, or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI up to 130 feet using a Cat6a cable.
This HDMI HDBaseT transmitter is HDCP 2.2 compliant, making sure that the connection from the source is secure. Multi-channel audio formats are supported, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X. With one-way Power over Cable (PoC) support, the transmitter gets its power from the receiver, allowing for greater flexibility in installations. Advanced users can control bi-directional IR and RS232 pass through.
Note: Ensure a solid, reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors. Stranded Cat5e/6/6a patch cables may be used for HDMI extension applications up to 230ft. Shielded, solid conductor Cat6 or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled, is run near other high-frequency signaling cables, or in high EMI/RFI environments.
This transmitter extends HDMI over a single Cat5e, Cat6, or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI up to 130 feet using a Cat6a cable.
This HDMI HDBaseT transmitter is HDCP 2.2 compliant, making sure that the connection from the source is secure. Multi-channel audio formats are supported, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X. With one-way Power over Cable (PoC) support, the transmitter gets its power from the receiver, allowing for greater flexibility in installations. Advanced users can control bi-directional IR and RS232 pass through.
Note: Ensure a solid, reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors. Stranded Cat5e/6/6a patch cables may be used for HDMI extension applications up to 230ft. Shielded, solid conductor Cat6 or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled, is run near other high-frequency signaling cables, or in high EMI/RFI environments.
- C2G Dual HDMI HDBaseT + RS232 over Cat Extender Single Gang Wall Plate Transmitter
- Extend 4K at 60Hz up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
- Extend 4K at 60Hz up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
- 2 HDMI inputs with auto switching, following the last-in-first-out rule
- HDCP 2.2 compliant, to create a secure connection between the source and display
- Supports multi-channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
- Supports EDID from the HDMI out and connected receiver has EDID limitation function
- Supports CEC pass-through, allowing central control to all HDMI compatible devices
- One-way Power over Cable (PoC), powered by the receiver
- HDBaseT Chipset VS010, for simpler HDBaseT installations
- Video Extender Transmitter is a reliable audio/video transmission extending solution
- HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- 12 input devices supported to better accommodate your specific requirements
- 230 ft maximum operating distance for reliable coverage and maximum portability
- 4K UHD graphics mode for an immersive and sharp viewing experience
- Wall Plate form factor allows hassle-free and easy usage with increased efficiency
Product Specifications
-
Brand NameC2G
-
Connectivity TechnologyWired
-
Country of OriginChina
-
Form FactorWall Plate
-
Graphics Modes4K UHD
-
HDMI InYes
-
Limited Warranty5 Year
-
Manufacturer Part NumberC2G30022
-
Maximum Operating Distance230 ft
-
Media Type SupportedTwisted Pair
-
Network (RJ-45)Yes
-
Number of HDMI Inputs2
-
Number of Input Devices Supported12
-
Number of Network (RJ-45) Ports1
-
Product ColorWhite
-
Product Name1-Gang Dual HDMI HDBaseT Wall Plate Transmitter RS232 over Cat Extender
-
Product TypeVideo Extender Transmitter
-
Transmitter Depth1.78"
-
Transmitter Height4.16"
-
Transmitter Weight (Approximate)6.35 oz
-
Transmitter Width1.77"
-
Twisted Pair Cable StandardCategory 7
