ATEN KH1508A KVM Extender

8 Computer(s) - UXGA - 1600 x 1200 Maximum Video Resolution - 8 x Network (RJ-45) - 2 x PS/2 Port - 1 x VGA - 110 V AC, 220 V AC Input Voltage - Rack-mountable - 1U
Product Number: SYNX3381356
  • One KVM console control up to 8 directly connected computers
  • Space-Saving RJ-45 connectors and Cat 5e/6 cabling
  • By daisy chaining up to 31 additional KH1508A switches, as many as 256 computers can be controlled from the original KVM console
  • Console conversion - any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

ATEN KH1508A KVM Extender - The KH1508A differs from the KH1508 in that the A release uses CPU modules with a permanent CAT5 cable molded into a single unit, and the console port now supports any combination of PS/2 and USB keyboards and mice

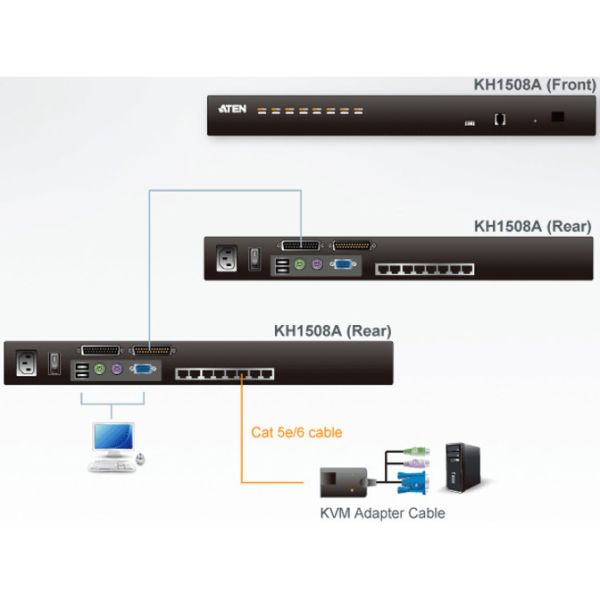

It allows access to eight directly connected computers, and through a daisy chain connection, an additional 31 KVMs to control a total of 256 computers from a single console.

  • One KVM console control up to 8 directly connected computers
  • Space-Saving RJ-45 connectors and Cat 5e/6 cabling
  • By daisy chaining up to 31 additional KH1508A switches, as many as 256 computers can be controlled from the original KVM console
  • Console conversion - any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
  • Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters*
  • Configue port access rights for users on a port - by - port basis
  • Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
  • Multiplatform support - PC, Mac, Sun, and serial
  • Multiple User Accounts - Supports up to 10 user and 1 administrator accounts
  • Two-Level Password Security - Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Brand Name
    ATEN
  • Connectivity Technology
    Wired
  • Country of Origin
    China
  • Form Factor
    Rack-mountable
  • Graphic Mode
    UXGA
  • Input Voltage
    110 V AC 220 V AC
  • KVM Technology
    Analog
  • Manufacturer Part Number
    KH1508A
  • Maximum Video Resolution
    1600 x 1200
  • Network (RJ-45)
    Yes
  • Number of Computers Supported
    8
  • Number of Network (RJ-45) Ports
    8
  • Number of PS/2 Ports
    2
  • Number of VGA Ports
    1
  • PS/2 Port
    Yes
  • Package Contents
    KH1508A KVM Extender 1 x Firmware Upgrade Cable 1 x 3 Prong AC Power Cord 1 x Rack Mounting Kit 1 x User Manual
  • Product Model
    KH1508A
  • Product Name
    KH1508A KVM Extender
  • Product Type
    KVM Extender
  • Rack Height
    1U
  • Transmitter Depth
    6.30"
  • Transmitter Height
    1.70"
  • Transmitter Weight (Approximate)
    6 lb
  • Transmitter Width
    17.20"
  • VGA
    Yes
